| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek ALC1220-VB codec The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology Slots: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory: Supported Memory 3rd Generation AMD Ryzen processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Maximum Memory: 128 GB |
|
| Graphics | ||
| Graphics | Graphics: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors only. Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. |
|
| LAN | 1 x RJ-45 port | |
| Supported Storage | Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) For 3rd Generation AMD Ryzen processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
|

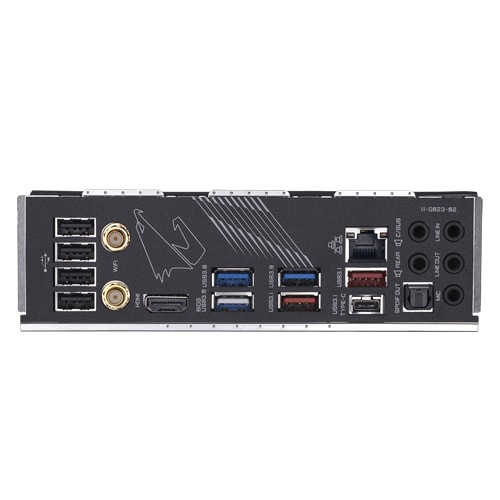

| USB Port | Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2/Gen 1 Type-A port (red) on the back panel For 3rd Generation AMD Ryzen processors only. Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

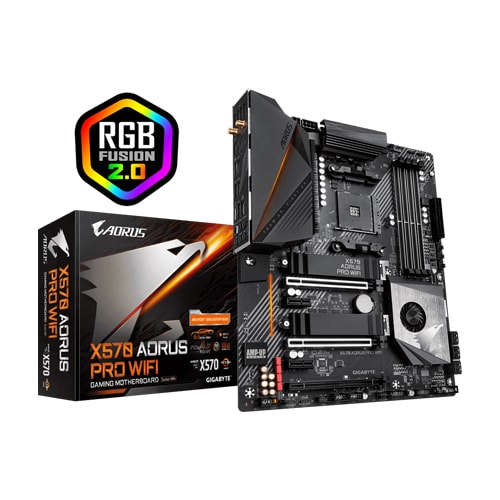

The Gigabyte X570 AORUS PRO WIFI AMD ATX Motherboard From GIGABYTE Is Built On The AMD X570 Chipset, Supporting AMD Ryzen Series Processors With An AM4 Socket. It Has Four RAM Slots That Can Hold Up To 128GB Of Dual-Channel DDR4 Memory At Speeds Of Up To 3466 MHz When Overclocked. For Storage, There Are Six SATA III Ports And Two M.2 Slots, One Of Which Can Operate At Up To 32 Gb/S When Used With A Compatible NVMe Drive. While This Motherboard Is Equipped With DisplayPort And HDMI Ports For Onboard Graphics, It Also Has A PCIe 3.0 X16 Slot For A Dedicated GPU As Well As A PCIe 2.0 X16 And Three PCIe 2.0 X1 Slots For Additional PCIe-Based Hardware. Other Notable Features Include Realtek ALC1220-VB Codec 7.1-Channel HD Audio, Intel I211AT Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 4.2, And MSI Mystic Light RGB LEDs
One of the sticking points of the X570 release has been the necessary price increase that comes from including such cutting edge technologies. Hardware components aren’t cheap and the combination of the needs of the power phases to be able to handle the current twelve core Ryzen 9 3900X and the upcoming 16 core R9 3950X, coupled to the hardware necessary to power the huge bandwidth available from PCI Express 4.0 have upped the average price of a X570 motherboard considerably from its predecessors.
Gigabyte have brought a whole range of models into their Aorus range to cover all price points. We’ve reviewed the premium Xtreme, the high end Master, and the ITX Pro. Today we’re taking a look at the model that will probably find a home in more systems than most thanks to an attractive price point, the Gigabyte X570 Aorus Pro Wifi.
As always we’re going to take a look at the specifications, the motherboard in the flesh, before seeing how it compares to its contemporaries. Eyes down for a full house.
