| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out 1 x front panel audio header 5 x audio jacks |
|
| CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Memory | Type: DDR4, Dual channel memory architecture Slots: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory: Supported Memory 3rd Generation AMD Ryzen processors: - Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: - Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC mode supported by 3rd Gen AMD Ryzen/ 2nd Gen AMD Ryzen and only PRO sku of 2nd Gen AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: Maximum memory up to 128 GB |
|
| Graphics | ||
| Graphics | Graphics: AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. Max Shared Memory: Maximum shared memory of 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version, HDCP 2.2, and HDR. |
|
| LAN | Intel GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|

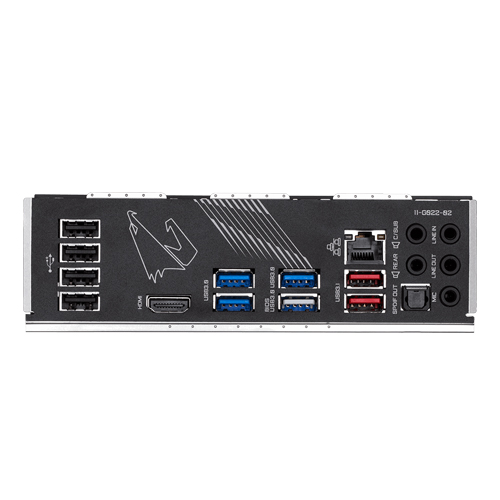

| USB Port | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

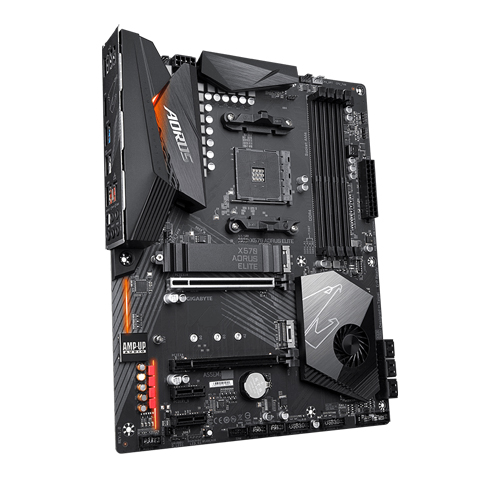

Gigabyte X570 AORUS ELITE WIFI AMD Motherboard supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors. This GIGABYTE X570 AORUS ELITE motherboard comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, 12+2 Phases Digital VRM Solution with DrMOS, Advanced Heatsink Design with Enlarge HeatsinkDual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guards, High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. This GIGABYTE X570 AORUS ELITE motherboard also supports Intel Gigabit LAN with cFosSpeed Internet Accelerator, Intel Dual Band 802.11ac WIFI & BT 4.2, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The GIGABYTE X570 AORUS ELITE motherboard also designed with Front USB 3.1 Gen2 Type-C Header & HDMI 2.0 support, Integrated I/O Shield Armor, Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem. The GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
