| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Form Factor | m-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm) |
|
| Basic Information | ||
| Chipset | Intel H510 Chipset | |
| Audio | Realtek ALC897/ ALC892 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot (Key M, from H510 chipset) | |
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Up to 64GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port | |
| USB (s) | Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
|
| LAN | 1x Realtek RTL8111 Gigabit LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M, from H510 chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|

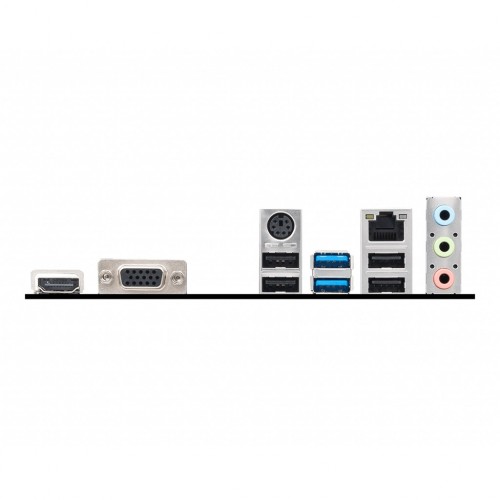

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| VGA | 1x VGA port | |
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |

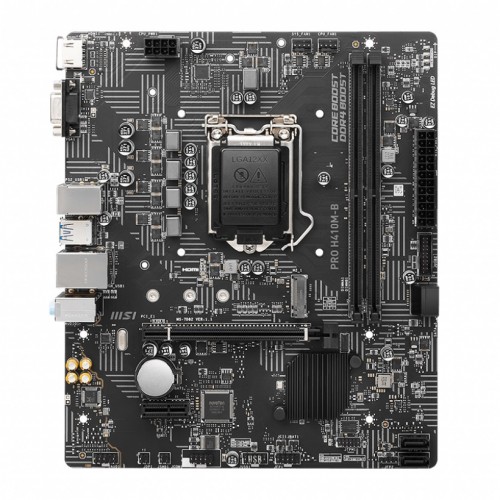

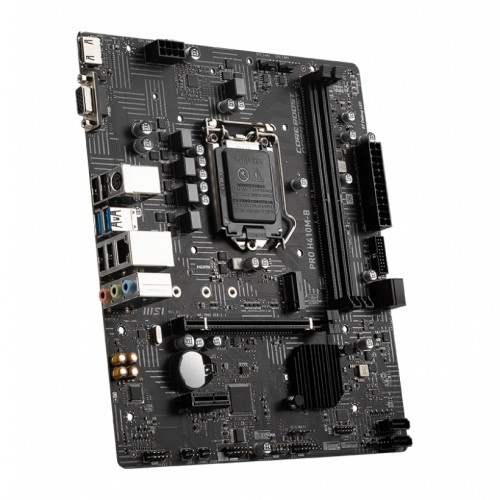

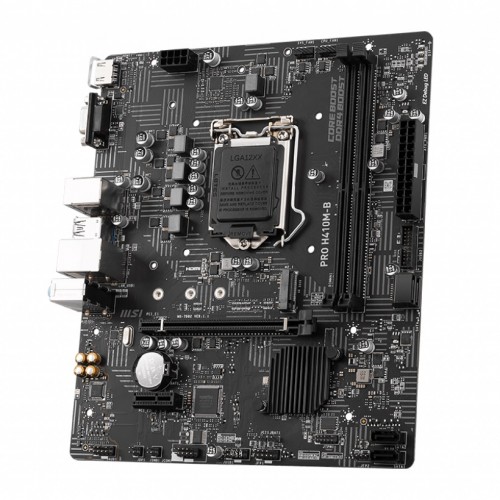

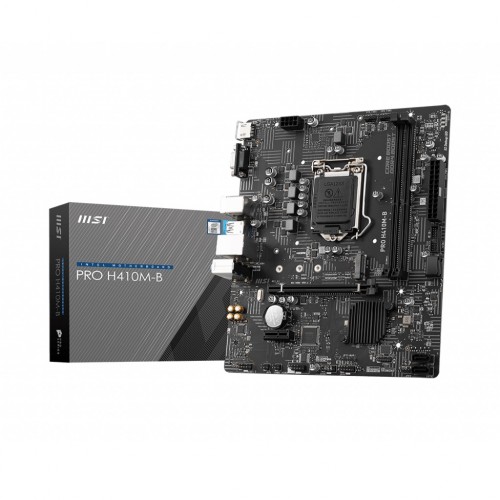

The MSI PRO H410M-B 10th Gen Micro-ATX Motherboard is a reliable and efficient motherboard designed to support Intel's 10th Generation Core processors, Pentium Gold, and Celeron processors. It offers a feature-rich platform for building compact and powerful desktop systems, making it ideal for various computing needs.The motherboard comes in a Micro-ATX form factor, measuring 9.3 inches x 7.95 inches (23.6 cm x 20.2 cm), making it suitable for smaller PC builds without compromising on functionality and expandability. It features two DDR4 memory slots, supporting a maximum memory capacity of up to 64GB. The motherboard supports memory speeds of 2133/2666/2933 MHz for 10th Gen Intel CPUs, ensuring efficient multitasking and smooth performance.For graphics support, the motherboard is equipped with a VGA port and an HDMI 1.4 port. The VGA port can handle a maximum resolution of 2048x1536 at 60Hz, while the HDMI port can support up to 4K resolution at 30Hz, providing flexibility for connecting various display devices.Storage options are well-covered with 4 SATA 6Gb/s ports from the H510 chipset, allowing you to connect multiple SATA-based storage drives, such as SSDs and HDDs, for ample storage capacity. Additionally, there's an M.2 slot (Key M) also sourced from the H510 chipset, which supports PCIe 3.0 x4 and SATA 6Gb/s storage devices in various form factors (2242/2260/2280), enabling faster data access and providing options for using high-speed NVMe SSDs.The motherboard offers expansion slots to cater to various needs, including a PCIe 3.0 x16 slot from the CPU, which can accommodate a graphics card or other high-performance expansion cards, and a PCIe 3.0 x1 slot from the PCH for additional peripherals.On the connectivity front, the motherboard includes a Realtek RTL8111 Gigabit LAN controller for stable and reliable network connectivity. It also comes with USB options, including 4 USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel and 2 available through the internal USB connector) and 6 USB 2.0 ports (4 Type-A ports on the back panel and 2 available through the internal USB 2.0 connector), allowing for seamless connectivity of peripherals.The audio system boasts a Realtek ALC897/ALC892 Codec, delivering 7.1-channel high-definition audio, ensuring immersive sound quality for multimedia and gaming experiences.
