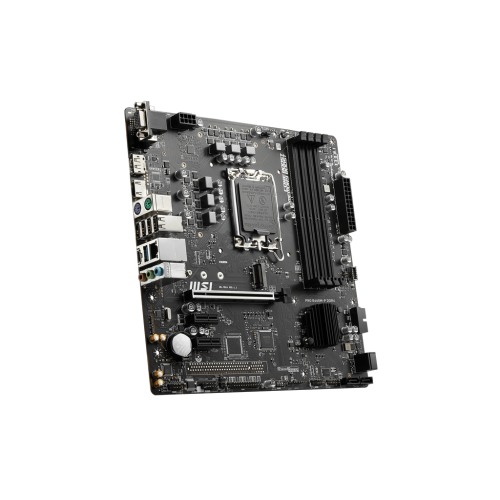

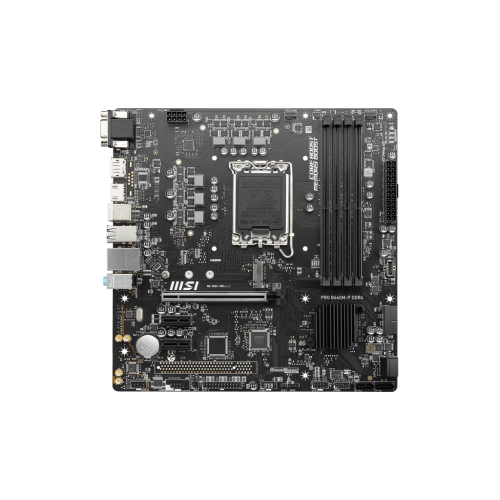

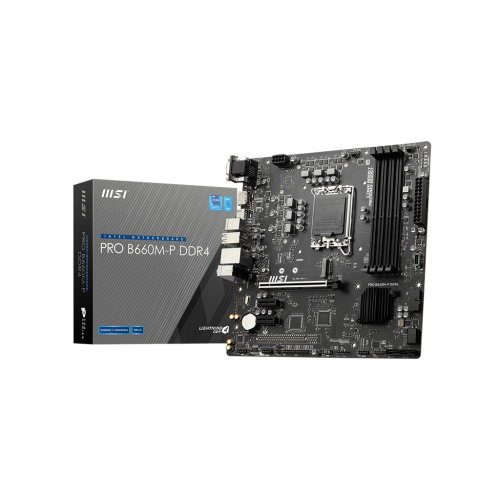

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

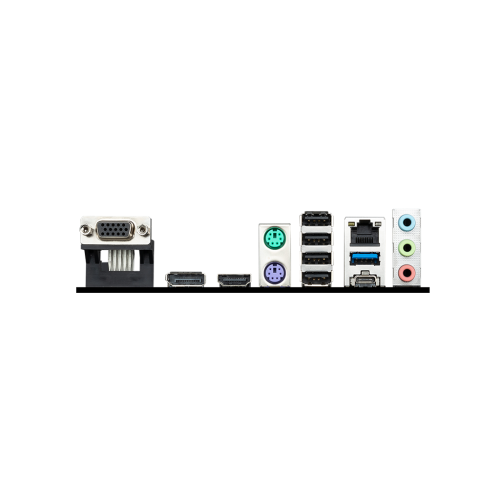

The MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard is a highly capable and reliable motherboard designed to support the 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with its LGA1700 socket. It is built on the Intel B660 chipset, offering a solid foundation for efficient performance and seamless connectivity.With a Micro-ATX form factor measuring 9.6 inches by 9.6 inches, this motherboard is suitable for compact PC builds without compromising on functionality. The motherboard supports DDR4 memory, with four DDR4 memory slots allowing a maximum capacity of up to 128GB. It supports various memory speeds, including 2133/2666/3200 MHz by JEDEC, and can achieve overclocked frequencies up to 4600+ MHz in 1DPC 1R configuration and 3600+ MHz in 2DPC 2R configuration, providing users with flexibility in memory choices.For graphics output, the MSI PRO B660M-P features a range of ports, including 1 HDMI 1.4 port supporting a maximum resolution of 4K at 30Hz, 1 DisplayPort 1.4 port supporting 4K at 60Hz, and 1 VGA port supporting resolutions of 2048x1536 at 50Hz, 2048x1280 at 60Hz, and 1920x1200 at 60Hz. This versatile selection allows users to connect various displays and enjoy high-definition visuals.In terms of storage, the motherboard provides four SATA 6Gb/s ports and a single M.2 slot (Key M), supporting PCIe 4.0 x4 for ultra-fast NVMe SSDs. This configuration allows users to set up a storage system that offers both traditional SATA and modern NVMe storage options, ensuring speedy data access and overall system responsiveness.The audio capabilities are powered by the Realtek ALC897 Codec, delivering high-definition 7.1-channel audio for an immersive sound experience, perfect for gaming, entertainment, and multimedia purposes.

Features:

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 4600+(OC) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard Review:

The MSI PRO B660M-P is an impressive micro-ATX motherboard that delivers excellent performance and efficiency. The motherboard supports the latest 12th Gen Intel Core processors, Pentium Gold, and Celeron Processors, making it a suitable choice for users seeking high-performance computing in a compact form factor.With four DDR4 memory slots supporting up to 128GB of RAM, this motherboard offers plenty of room for memory-intensive applications or multitasking. Additionally, the overclocking frequencies of up to 4600+ MHz further enhance its performance capabilities.The motherboard's multi-display capability, including VGA, DisplayPort 1.4, and HDMI 1.4 ports, allows users to connect multiple displays for enhanced productivity and entertainment. The Realtek ALC897 Codec also delivers high-definition audio output through 7.1-channel output.The B660M-P offers four SATA 6Gb/s ports and one M.2 slot with PCIe 4.0 x4 support, providing ample storage options for high-speed data transfer. Furthermore, the motherboard features a Realtek RTL8111H LAN controller with 1Gbps speed and several USB connectivity options.In terms of value, the MSI PRO B660M-P is a great choice for users seeking a balance between performance and affordability. With its compact form factor and powerful specifications, it caters to a wide range of users, from gamers to content creators.In conclusion, the MSI PRO B660M-P is an excellent micro-ATX motherboard that offers high-performance capabilities in a compact form factor. Its efficient design, robust chipset, and various connectivity options make it a versatile choice for users who demand high-speed computing power without sacrificing space or cost.
