| BASIC INFORMATION | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel Z790 Chipset | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Audio Connectors |
|
| Others | Type: DDR5 | |
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 5x M.2 slots | |
| Memory | ||
| Slots | 4 x UDIMM | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| LAN Port (s) | Realtek 5Gbps LAN | |
| Wireless | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4, MLO, 4KQAM |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|

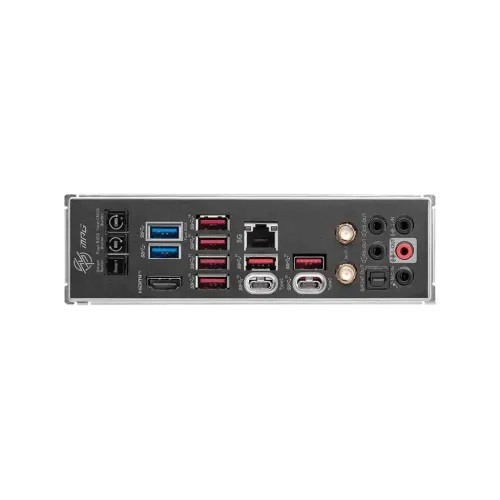

| USB Port | 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

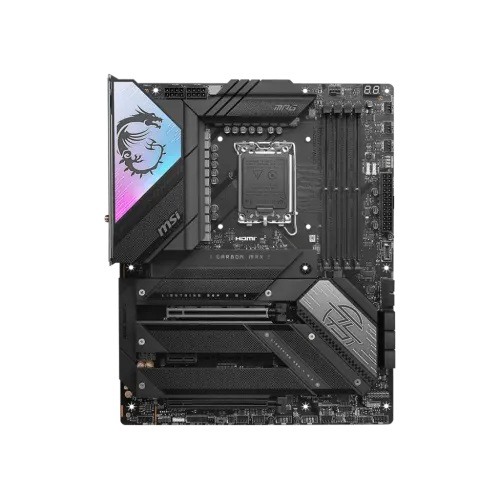

The MSI MPG Z790 CARBON MAX WIFI II DDR5 ATX Motherboard is a flagship platform precisely designed to push the limits of performance, connection, and dependability. This motherboard is designed to accept the newest 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron CPUs that use the LGA 1700 socket, ensuring uncompromising compatibility and support for a wide variety of computing applications, from gaming to content production and beyond. The MSI MPG Z790 CARBON MAX WIFI II delivers unparalleled multitasking prowess and responsiveness, allowing you to tackle even the most demanding workloads with ease. It has four DDR5 memory slots that support up to 256GB of RAM and can be overclocked to 7800MHz and beyond.Whether you're generating high-resolution films, streaming information, or indulging in intensive gaming sessions, this motherboard gives you the performance boost you need to remain ahead of the competition. Connectivity is essential in today's computing scene, and the MSI MPG Z790 CARBON MAX WIFI II does not disappoint. With a 5Gbps LAN and Wi-Fi 7 Solution, you get lightning-fast internet speeds and low-latency connections for seamless online gaming, streaming, and work. Furthermore, the inclusion of a single HDMI connector facilitates graphics output, allowing you to connect to high-resolution monitors for immersive gaming or multimedia experiences. The MSI MPG Z790 CARBON MAX WIFI II was designed with gamers and enthusiasts in mind, combining cutting-edge technology with rugged build to provide stability and durability under even the most extreme situations. With excellent components and a sleek, modern appearance, this motherboard not only performs well but also looks the part. Whether you're constructing a high-end gaming system or a powerful workstation, the MSI MPG Z790 CARBON MAX WIFI II is the gold standard for motherboard design. MSI's current flagship motherboard delivers the highest level of performance.
