| Basic Information | ||
| Chipset | Intel Z690 Chipset | |
| Audio | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) | |
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Processor Socket LGA1700 |
|
| Form Factor | ATX Form Factor | |
| Memory | ||
| Slots | 3x PCIe X16 Slots PCI_E1 Slot (From CPU) Supports PCIe 5.0 X16 PCI_E3 & PCI_E4 Slots (From Z690 Chipset) Supports PCIe 3.0 X4 1x PCIe 3.0 X1 Slot (From Z690 Chipset |
|
| Memory | 4x DDR4 Memory Slots, Support Up To 128GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (By JEDEC & POR) Max. Overclocking Frequency: 1DPC 1R Max Speed Up To 5200+ MHz 1DPC 2R Max Speed Up To 4800+ MHz 2DPC 1R Max Speed Up To 4400+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port With HBR3, Supports A Maximum Resolution Of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz | |
| LAN | 1x Intel I225V 2.5Gbps LAN Controller | |
| Supported Storage | 6x SATA 6Gb/S Ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 X SATA 6Gb/S Ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2260/ 2280/ 22110 Storage Devices M2_2 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports 2260/ 2280 Storage Devices M2_3 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices M2_4 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices M2_2~4 Support Intel® Optane™ Memory Supports Intel® Smart Response Technology For Intel® Core™ Processors |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 2x 8-Pin ATX 12V Power Connectors 6x SATA 6Gb/S Connectors 4x M.2 Slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C Port 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 6x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1xTPM Module Connector 1x Clear CMOS Jumper 1x Tuning Controller Connector 1x TBT Connector (Supports RTD3) |
|

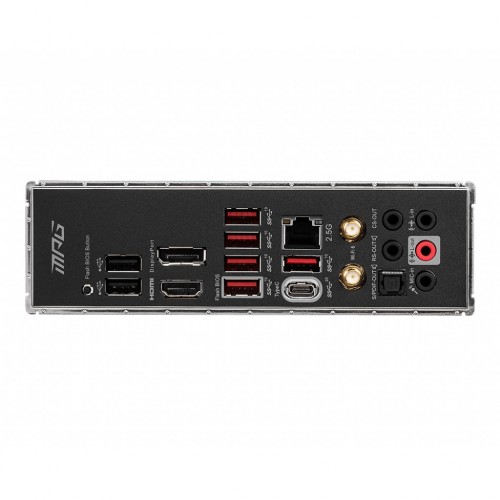

| USB Port | 1x USB 3.2 Gen 2x2 20Gbps Type-C Port On The Back Panel 6x USB 3.2 Gen 2 10Gbps Ports (1 Type-C Internal Connector And 5 Type-A Ports On The Back Panel) 2x USB 2.0 Type-A Ports On The Back Panel 2x USB 3.2 Gen 1 5Gbps Ports Available Through The Internal USB Connector USB Hub-GL850G 4x USB 2.0 Ports Available Through Internal Connectors |
|
| WiFi | Intel® Wi-Fi 6 The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax Supports Bluetooth® 5.2 |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

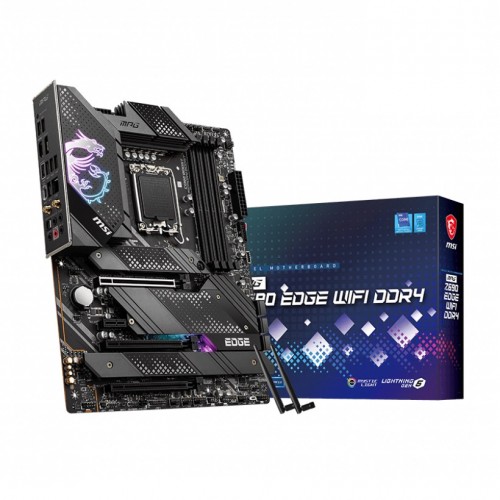

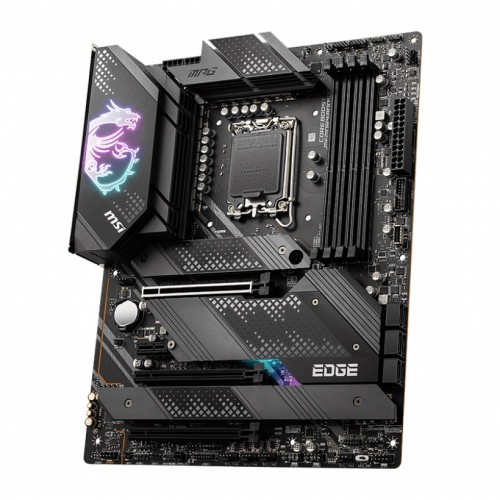

The MSI MPG Z690 EDGE WIFI is a high-performance ATX motherboard designed to support the latest 12th Gen Intel Core processors with an LGA1700 socket. Built with the Intel Z690 chipset, this motherboard offers cutting-edge features, robust performance, and extensive connectivity options, making it an ideal choice for gamers, content creators, and PC enthusiasts.The motherboard boasts a sleek and modern design, fitting perfectly into any high-end gaming rig or workstation build. The audio system features the Realtek ALC4080 Codec, delivering 7.1-channel high-definition audio with S/PDIF output for an immersive and crystal-clear audio experience.The MPG Z690 EDGE WIFI supports up to 128GB of DDR4 memory in four DIMM slots, allowing for impressive multitasking and smooth computing performance. With support for overclocking frequencies up to 5200+ MHz, users can optimize their memory modules for enhanced system responsiveness.Graphics capabilities are top-notch with an HDMI 2.1 port supporting HDR and a maximum resolution of 4K at 60Hz, along with a DisplayPort 1.4 port supporting a maximum resolution of 4K at 60Hz. This ensures users can enjoy stunning visuals and graphics on their high-resolution monitors or displays.The motherboard provides ample connectivity options with USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports, enabling fast data transfers and seamless connections to various peripherals and devices.For networking, the MPG Z690 EDGE WIFI features an Intel I225V 2.5Gbps LAN controller, providing ultra-fast and stable wired internet connections. Additionally, the pre-installed Intel Wi-Fi 6 module offers wireless connectivity with support for MU-MIMO TX/RX, 2.4GHz/5GHz (160MHz), and speeds of up to 2.4Gbps, ensuring smooth and reliable wireless performance.Storage options are abundant with six SATA 6Gb/s ports and four M.2 slots. The M.2 slots support PCIe 4.0 x4 and SATA 6Gb/s devices, and they are Intel Optane Memory ready, further enhancing storage performance.
