| BASIC INFORMATION | ||
| Form Factor | Micro-ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 1x Front panel audio connector | |
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: Up to 128GB |
|
| Graphics | ||
| Graphics | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Intel I225V 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 Support up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2-pin system fan connectors 1x Front panel audio connectors 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning Controller connector 1x TBT connector (supports RTD3) |
|

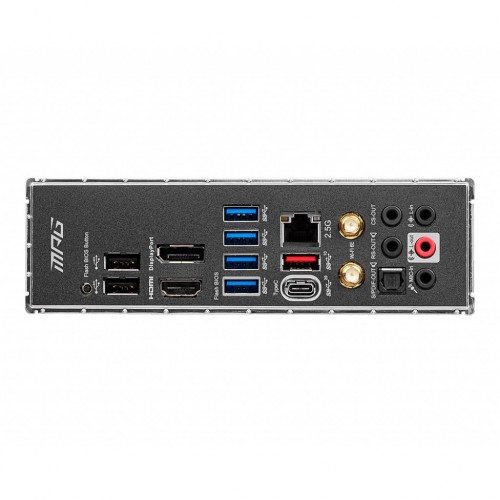

| USB Port | Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports are available through the internal connectors |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

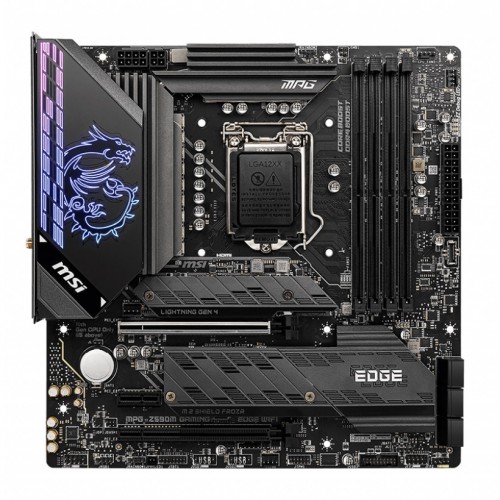

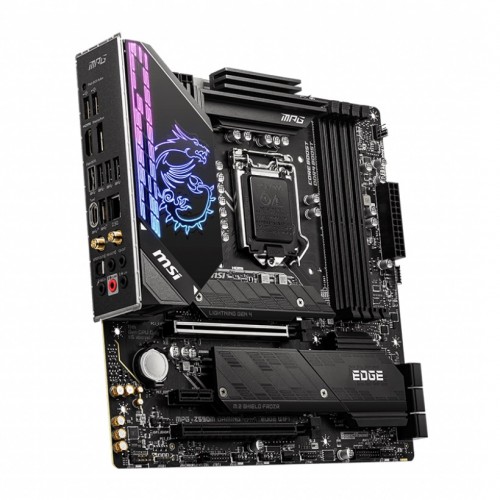

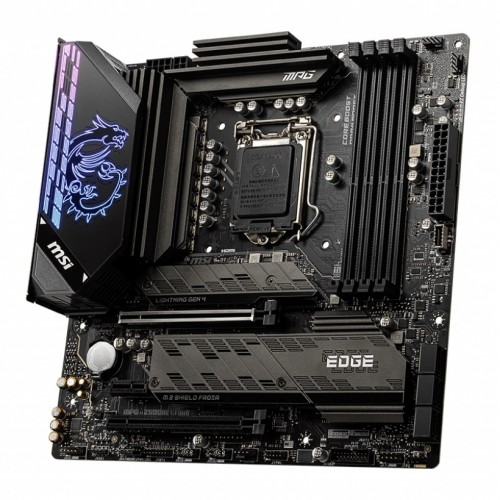

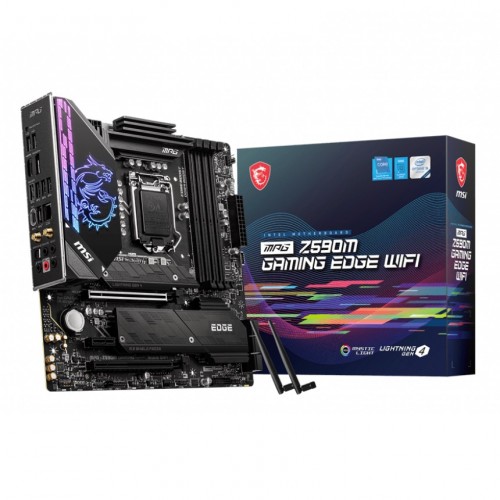

The MSI MPG Z590M GAMING EDGE WIFI Is A Powerful M-ATX Motherboard Designed To Support Both 10th And 11th Generation Intel Core Processors, Along With Pentium Gold And Celeron Processors. Built With The Intel Z590 Chipset, This Motherboard Offers A Range Of Features And Capabilities To Enhance Your Gaming And Computing Experience.Audio-Wise, The Motherboard Includes A Front Panel Audio Connector, Allowing You To Connect Your Speakers Or Headphones For High-Quality Sound Output While Gaming Or Enjoying Multimedia Content.With Its LGA1200 Processor Socket And Micro-ATX Form Factor, The MPG Z590M GAMING EDGE WIFI Offers A Compact Yet Powerful Foundation For Your System. It Supports 2-Way AMD CrossFire Technology, Enabling You To Install Multiple Graphics Cards For Enhanced Gaming Performance And Visual Fidelity. The Motherboard Features A DisplayPort 1.4 And An HDMI 2.0b Port, Both Capable Of Delivering Crisp 4K Resolution At 60Hz. This Ensures You Can Enjoy Immersive Visuals And Stunning Graphics.In Terms Of Internal Connectivity, The Motherboard Offers A Wide Range Of Ports And Connectors. It Includes Multiple SATA 6Gb/S Connectors For Connecting Storage Devices, Two M.2 Slots (M-Key) For Ultra-Fast NVMe SSDs, And Various USB Ports For Seamless Peripheral Connectivity. The USB Ports Consist Of A USB 3.2 Gen 2 10Gbps Type-C Port, USB 3.2 Gen 1 5Gbps Connectors, And USB 2.0 Connectors. Additionally, There Are Fan Connectors, Front Panel Audio Connectors, System Panel Connectors, And A Chassis Intrusion Connector, Making It Easy To Set Up And Customize Your System.For Networking, The Motherboard Features An Intel I225V 2.5Gbps LAN Controller, Ensuring Reliable And High-Speed Internet Connectivity For Smooth Online Gaming And Streaming.The MSI MPG Z590M GAMING EDGE WIFI Supports DDR4 Memory With Four Memory Slots And A Maximum Capacity Of Up To 128GB. It Supports Dual-Channel Mode, Non-ECC Unbuffered Memory, And Intel Extreme Memory Profile (XMP), Allowing You To Optimize Memory Performance For Demanding Tasks And Applications.With Regards To Storage, The Motherboard Provides Six SATA 6Gb/S Ports For Traditional Hard Drives And SSDs. It Also Offers Two M.2 Slots, One Of Which Supports PCIe 4.0 X4 (Available Only On 11th Gen Intel CPUs) And The Other Supports PCIe 3.0 X4 And SATA 6Gb/S. This Versatility Allows You To Take Advantage Of Fast Storage Options And Intel Smart Response Technology For Improved System Responsiveness.
