| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 1x Front panel audio connector | |
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: Up to 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Intel I225V 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) |
|

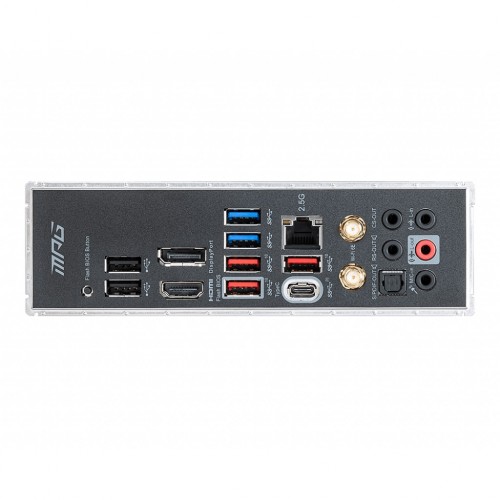

| USB Port | Intel Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

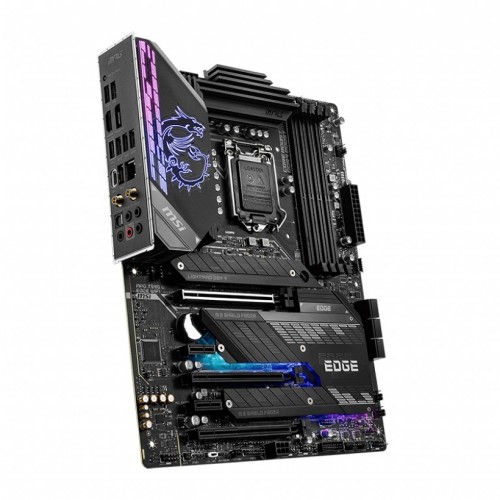

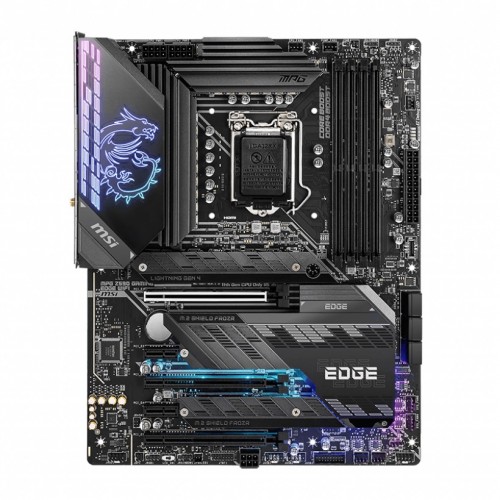

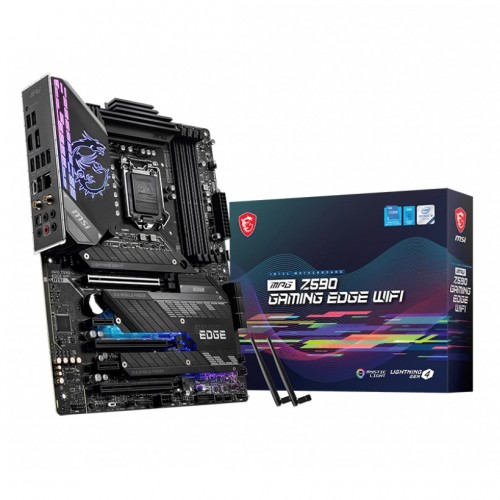

MSI MPG Z590 GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard support 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. MSI MPG Z590 GAMING EDGE WIFI Motherboard supports DDR4 Memory, up to 5333(OC) MHz. MSI MPG Z590 GAMING EDGE WIFI Motherboard offers Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. MSI MPG Z590 GAMING EDGE WIFI Motherboard comes with a 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost. Enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience. MSI MPG Z590 GAMING EDGE WIFI Motherboard features MYSTIC LIGHT, 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It comes with 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. It includes AUDIO BOOST 5, Reward your ears with the studio-grade sound quality for the most immersive gaming experience. It is built with a High-Quality PCB. 6-layer PCB made by 2oz thickened copper and server grade-level material. It comes with pre-installed I/O Shield: Better EMI protection and more convenience for installation.
