| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z490 Chipset | |
| Audio | 5+ Optical S/PDIF (Realtek ALC1200 Codec) | |
| CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket CPU (MAX SUPPORT): i9 SOCKET: 1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4 x DDR4 memory slots Supported Memory: Supports 1R 2133/2666/2933 MHz: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: 4x DDR4 memory slots, support up to 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Supports AMD 2-Way CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI port, maximum resolution of 4096x2160 @ 30Hz | |
| LAN | 1x Realtek RTL8125B 2.5G LAN | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x chassis intrusion connector 1x Clear CMOS jumper 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TBT connector 1x RTD3 connector |
|

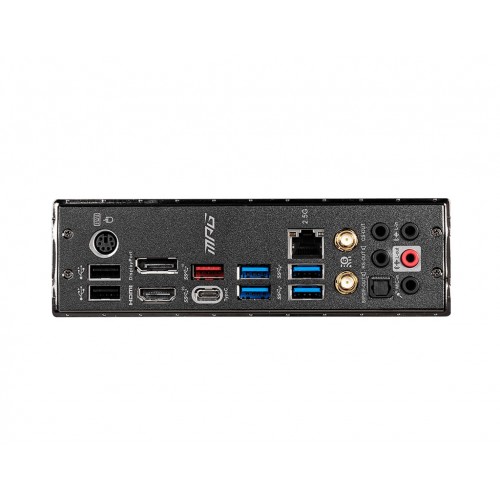

| USB Port | USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A) USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) USB 2.0 PORTS (FRONT): 4 USB 2.0 PORTS (REAR): 2 |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |

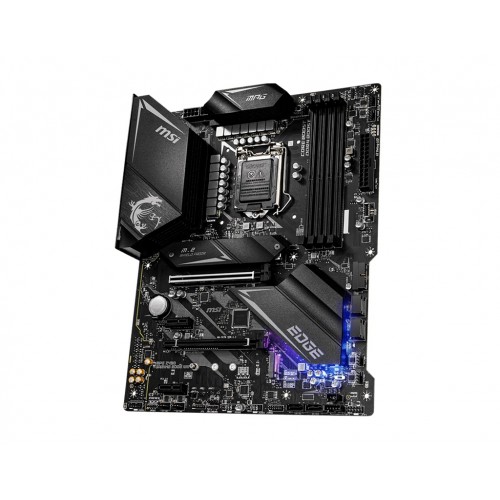

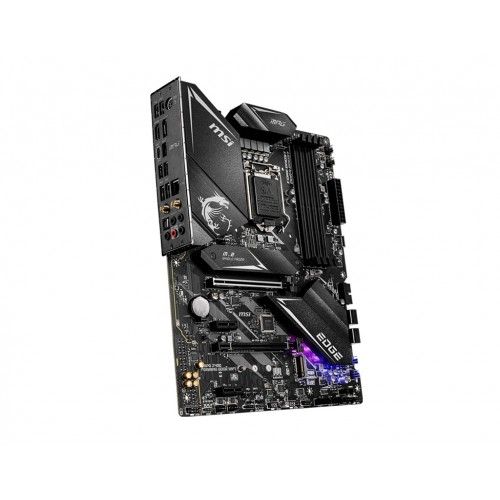

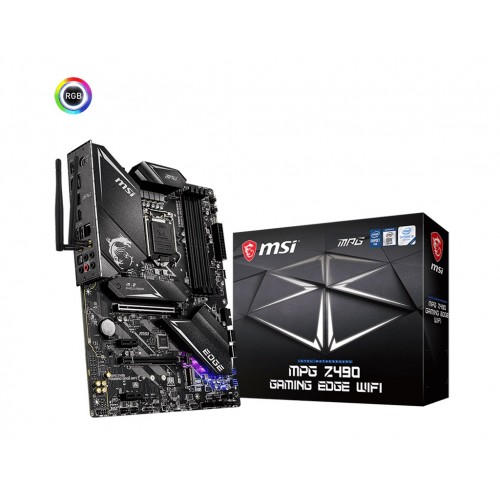

The new MPG series motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications with the MPG series, transform your equipment into the center of attention and top leaderboards in style. In this motherboad, the Premium Thermal Solution is comes with Aluminum Cover with Extended Heatsink Design and M.2 ShieldIts MSI MPG Z490 Gaming EDGE WiFi ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz. This new motherboard also support Lightning Gen 4 Solution for the future.This new motherboard Enhanced Power Design with 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost Enhanced Power Design. In this motherboad, the Premium Thermal Solution is comes with Aluminum Cover with Extended Heatsink Design and M.2 Shield. Frozr are built for high performance system and non-stop gaming experience
Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C, 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. This motherboard also comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
