| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| BIOS | Flash BIOS Button | |
| Form Factor | E-ATX Form Factor | |
| Basic Information | ||
| Chipset | AMD X570 Chipset | |
| Audio | 2x Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output ESS E9018 Codec Supports 6.3mm Gold-plated stereo headphone out |
|
| Memory | ||
| Memory | Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Graphics | ||
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 4-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| LAN | 1x Killer E2600 Gigabit LAN Controller 1x Killer E3000 2.5 Gbps LAN Controller |
|
| Supported Storage | AMD X570 Chipset: 4x SATA 6Gb/s ports (SATA1-SATA4) 3x M.2 slots (Key M)1 M2_1 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280 storage devices M2_3 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
|

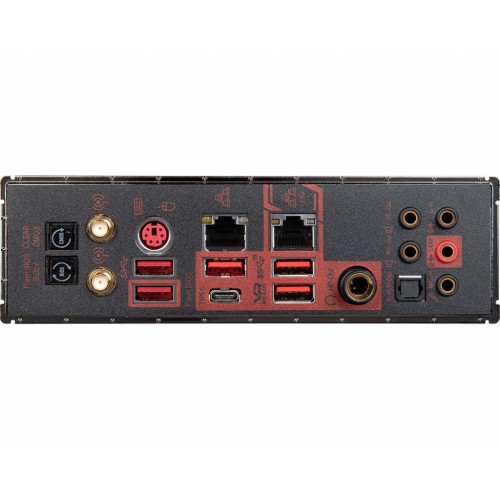

| USB Port | AMD X570 Chipset: 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connectors) 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 4x USB 2.0 (High-speed USB) ports through the internal USB connectors AMD Processor: 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

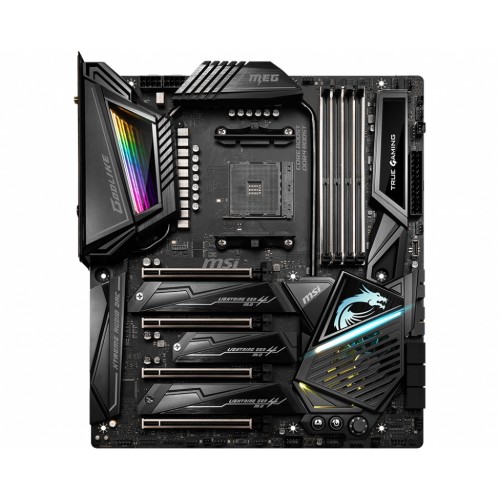

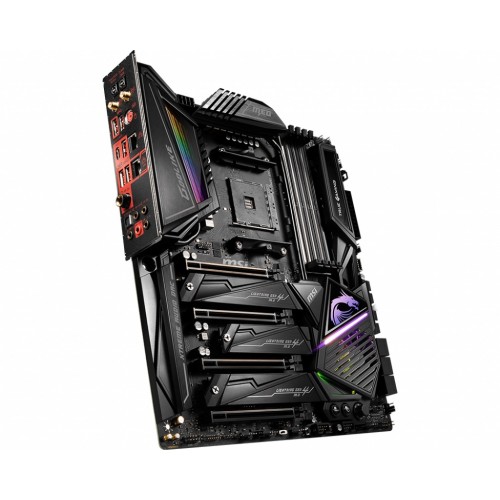

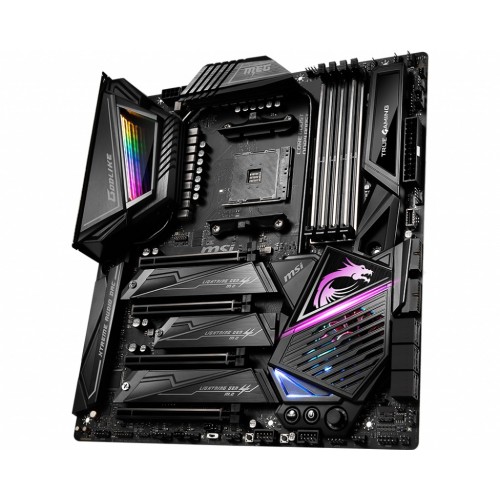

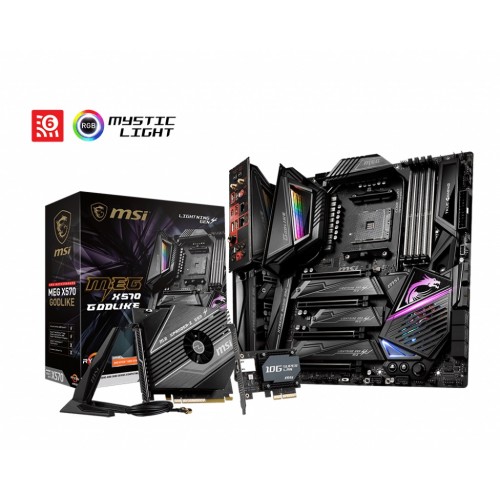

MSI MEG X570 GODLIKE DDR4 2nd and 3rd Gen AM4 AMD E-ATX Motherboard supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket with DDR4 Memory, up to 4800+(OC) MHz. You can customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the GODLIKE makes your system come alive and infinity. This Motherboard is built-in dynamic panel that indicates the status of GODLIKE and shows off your own personality. This motherboard provides you Lightning Fast Game experience by PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2. This motherboard is also designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers, It's Enlarge the surface of heat dissipation, connecting from VRM heatsink to chipset heatsink. This motherboard is Isolated audio with ESS DAC, 2x audio processors & Nahimic to deliver the breathtaking sound quality with 384kHz/32-bit and it's Dual Killer fueled LAN & WIFI 6 extender with ultimate traffic prioritization because it is Combine a built-in-switch with wireless extender that gives you excellent performance.
