| Basic Information | ||
| Chipset | AMD X570 Chipset | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Expansion Slots | ||
| PCI | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| Supported Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

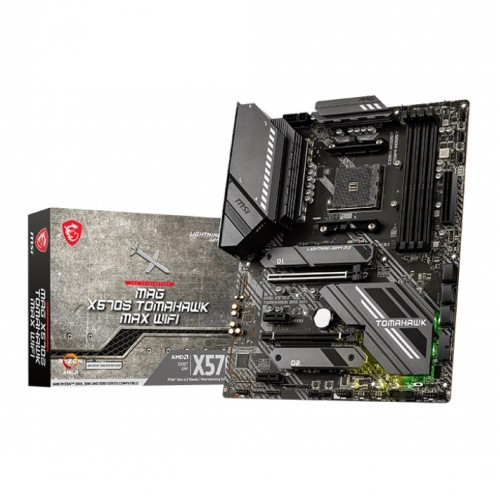

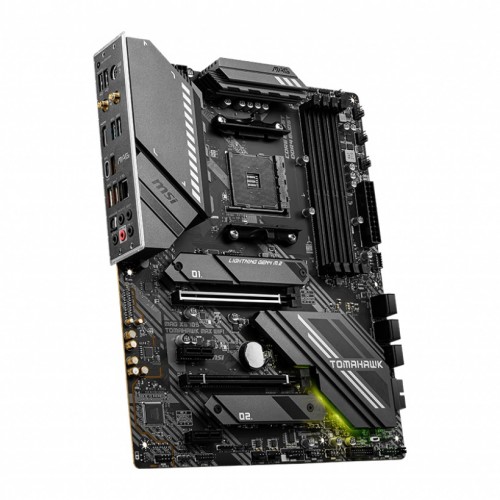

The MSI MAG X570S TOMAHAWK MAX WIFI Motherboard supports AMD Ryzen 5000 Series, 5000 G- Series, 4000 G- Series, 3000 Series, 3000 G- Series, 2000 Series, and 2000 G- Series desktop processors. It supports DDR4 Memory, up to 5100( OC) MHz. It features Premium Thermal Solution. Extended Heatsink Design andM. 2 Shield Frozr are erected for high- performance systems andnon-stop workshop. It's equipped with2.5 G LAN and Intel Wi- Fi 6E Result. Upgraded network result for professional and multimedia use. Delivers a secure, stable, and fast network connection. Running at PCIe Gen4 x4 maximizes performance for NVMe grounded SSDs. Award your cognizance with the plant- grade sound quality for the most immersive gaming experience with AUDIO BOOST 5. It comes with ith Steel armor PCIe places. It also supports 2- Way AMD Crossfire. The MSI Diurnal X570S TOMAHAWK MAX WIFI comes with 3 times of bond.
