| BASIC INFORMATION | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
|
| Chipset | INTEL B760 | |
| Graphics | 1x HDMI |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec |
|
| Basic Information | ||
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot |
|
| M.2 Socket | 3x M.2 slots | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
| Maximum Memory | 192GB | |

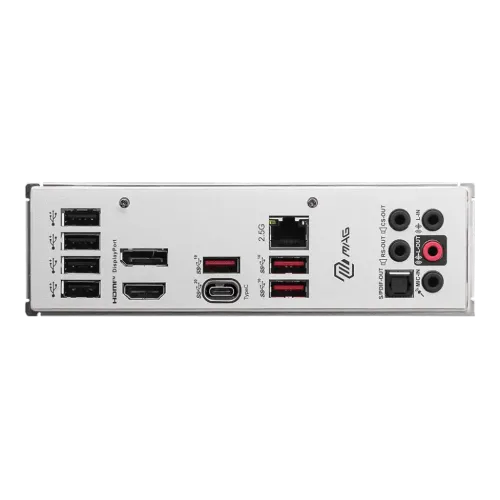

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port | 1x DisplayPort 1.4 | |
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| USB (s) | 4x USB 2.0 (Rear) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

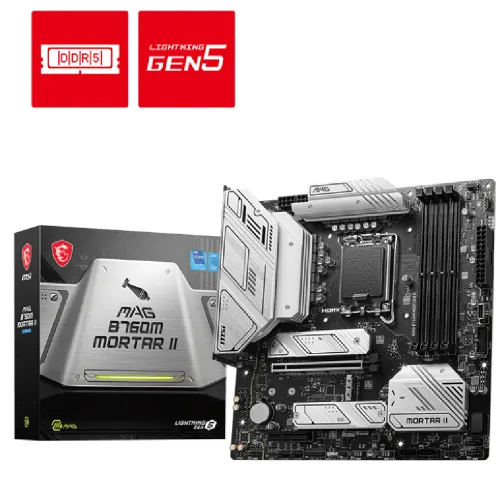

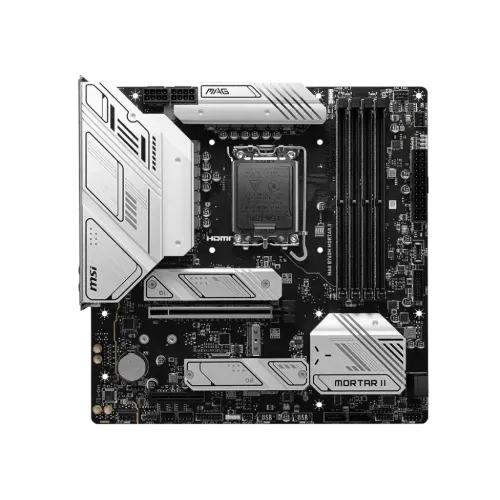

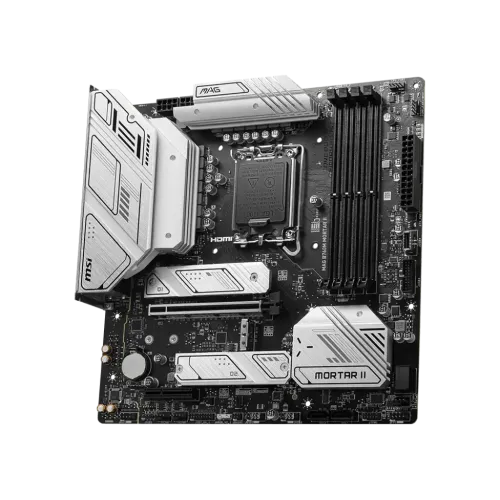

The MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a high-performance motherboard that supports a broad range of Intel processors, including 14th, 13th, and 12th generation Intel CPUs, as well as Intel Pentium Gold and Celeron processors, which are all LGA 1700 compatible. Notable features include DDR5 memory compatibility, which can be overclocked to rates of up to 7800+ MHz, allowing it to perform demanding workloads and games. The motherboard also has an upgraded power architecture, which includes a 12+1+1 Duet Rail Power System, twin 8-pin CPU power connections, Core Boost, and Memory Boost, which ensures reliable and efficient power supply to the CPU and memory modules for greater system performance. A PCIe 5.0 slot, Lightning Gen 4 x4 M.2 slot, and USB 3.2 Gen 2 x2 connections provide a lightning-fast gaming experience with high-speed data transmission and gaming performance. It has an Extended Heatsink Design with an M.2 Shield Frozr to keep temperatures low during heavy use. The MSI MAG B760M MORTAR II Motherboard also contains Audio Boost for studio-level sound quality, as well as a high-quality PCB with 6 layers of 2oz thicker copper and server-grade components, which improves longevity and system stability. Overall, this motherboard is a great option for gamers, content makers, and PC aficionados looking for top-tier performance and features.
