| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek® ALC1220P Codec 8 Channel (7.1) High Definition Audio Supports Optical S/PDIF Output |
|
| CPU | Supports 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors | |
| Memory | ||
| Slots | 2x PCIe X16 Slots PCI_E1 (From CPU) Support Up To PCIe 4.0 PCI_E2 (From B660 Chipset) Support Up To PCIe 3.0 X4 1x PCIe 3.0 X1 Slot (From B660 Chipset) |
|
| Memory | DDR5- Supports 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz Dual Channel, 4-DIMM Slots, Max Memory-128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port With HBR3, Supports A Maximum Resolution Of 4K 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Realtek® RTL8125B-CG 2.5Gbps LAN | |
| Supported Storage | 6x SATA 6Gb/S Ports SATA5~8 (From B660 Chipset) SATAA~B (From ASM1061) 3x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports Up To PCIe 4.0 X4 Supports 2242/ 2260/ 2280/ 22110 Storage Devices M2_2 & M2_3 Slots (From B660 Chipset) M2_2 Supports Up To PCIe 4.0 X4 M2_3 Supports Up To PCIe 4.0 X2 1 Supports SATA Up To 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Intel® Optane Memory Supports Intel® Smart Response Technology For Intel Core™ Processors |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 2x 8-Pin ATX 12V Power Connectors 6x SATA 6Gb/S Connectors 3x M.2 Slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C Port 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 5x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x Clear CMOS Jumper 1x TPM Module Connector 1x TBT Connector (Supports RTD3) 1x Tuning Controller Connector |
|

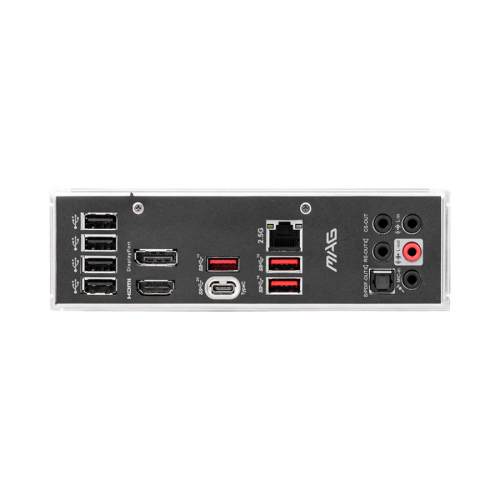

| USB Port | 1x USB3.2 Gen 2x2 20Gbps Port (Type-C Port On The Back Panel) 5x USB 3.2 Gen 2 10Gbps Ports (4 Type-A Ports On The Back Panel, 1 Type-C Available Through The Internal Connector) 2x USB 3.2 Gen 1 5Gbps Type-A Ports Available Through The Internal Connector 8x USB 2.0 Ports (4 Type-A Ports On The Back Panel, 4 Type-A Ports Available Through The Internal Connectors) |
|
| WiFi | The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax Supports Bluetooth 5.2 2, FIPS, FISMA |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

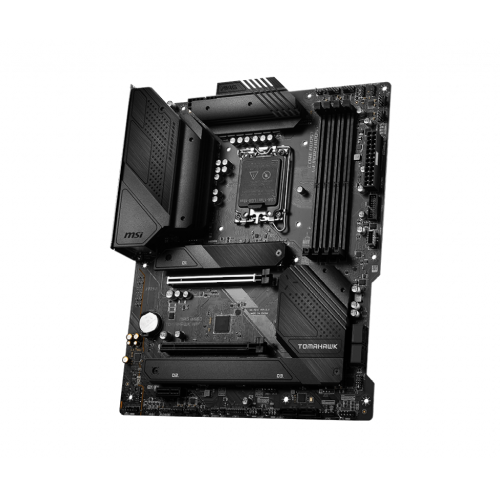

Construct your next build around a 12th generation Intel Core processor with the MAG B660 TOMAHAWK Wi-Fi LGA 1700 ATX Motherboard from MSI. Designed to provide power and take advantage of resource-demanding components, this motherboard balances performance with style suitable for gamers.
Designed around the B660 chipset, this motherboard features the LGA 1700 socket, four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 12th generation Intel Core processors. The six SATA III ports and three M.2 connectors allow users to create large storage drive arrays for large file libraries. Two PCIe x16 slots and one PCIe 3.0 x1 slot allow you to install high-end graphics cards and other compatible expansion cards. Connect to a wireless networks thanks to Wi-Fi 6E technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as external storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered peripherals such as keyboards and mice. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.2 technology. Windows 11 (64-bit) is required to take full advantage of this motherboard's features
