| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors | |
| Form Factor | ATX Form Factor |
|
| Basic Information | ||
| Chipset | AMD B550 Chipset | |
| Expansion Slots | ||
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
|
| Maximum Memory | 128GB | |
| Storage | AMD B550 Chipset |
|
| Graphics | ||
| Graphics | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Audio | Realtek ALC897 Codec |
|
| Display Port | 1x DisplayPort | |
| LAN | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Wireless | AMD Wi-Fi 6E |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector |
|
| USB Port | AMD B550 Chipset |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

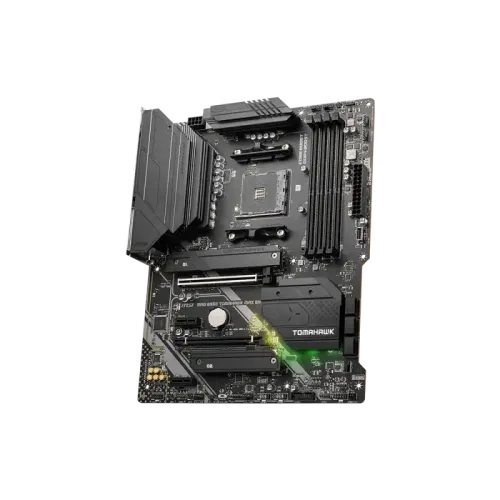

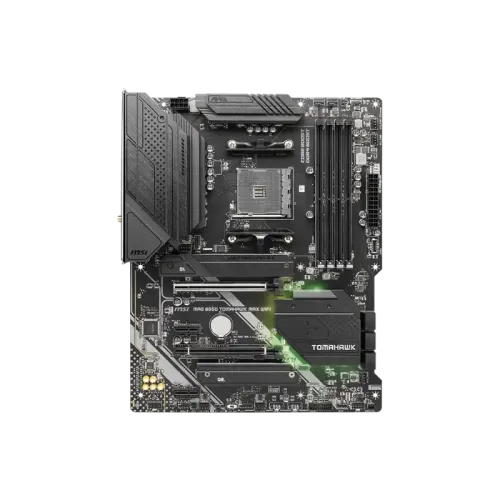

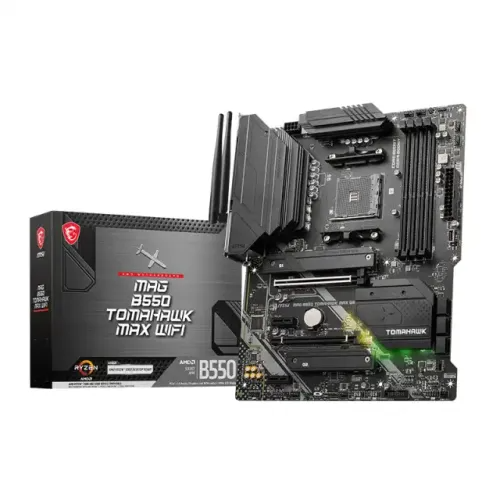

The MSI MAG B550 TOMAHAWK MAX WIFI Motherboard is a powerhouse built to elevate your gaming and computing experience. Designed to support AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors, it offers impressive versatility. With support for DDR4 Memory up to 5100+(OC) MHz, it delivers rapid and efficient performance. Featuring PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and AMD Turbo USB 3.2 Gen 2, it ensures lightning-fast game experiences. The MSI MAG B550 TOMAHAWK MAX WIFI Motherboard's Premium Thermal Solution comprises an Extended Heatsink Design, a choke thermal pad rated for 7W/mk, and a PCB with 2oz thickened copper, perfect for high-performance systems and uninterrupted gaming sessions. The Enhanced Power Design includes a 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, and DDR4 Boost, enhancing overall performance. Its 2.5G LAN and AMD Wi-Fi 6E Solution provide an upgraded network solution for professional and multimedia use, delivering a secure, stable, and fast network connection. The motherboard's pre-installed I/O Shield ensures better EMI protection and easier installation. Audio Boost provides studio-grade sound quality for an immersive gaming experience, while Multi-GPU support with Steel Armor PCI-E slots allows for AMD Crossfire configurations. The MSI MAG B550 TOMAHAWK MAX WIFI Motherboard is a robust and feature-rich choice for discerning gamers and power users.
