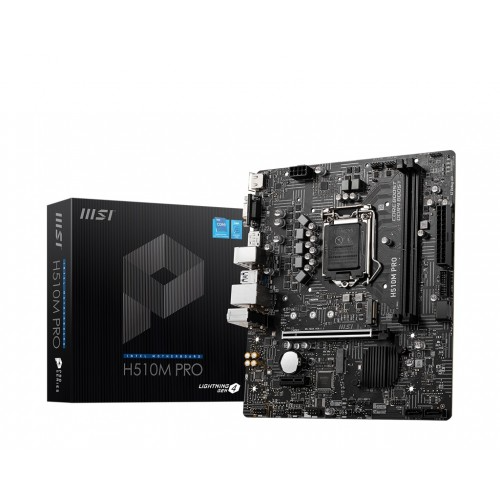

/H510M PRO/h510m-pro-01--500x500.png "MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard")

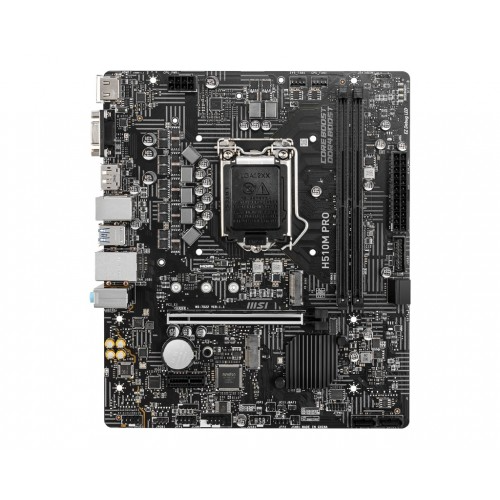

/H510M PRO/h510m-pro-02-500x500.png "MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard")

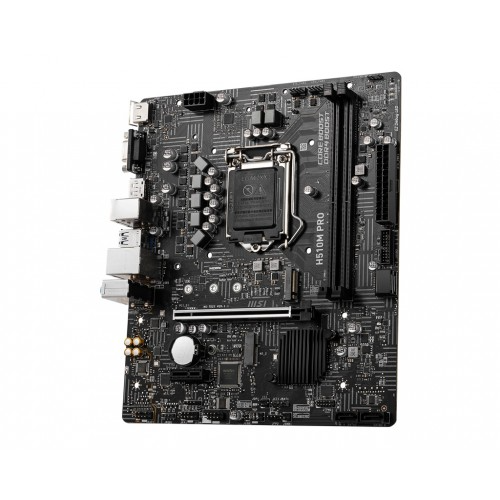

/H510M PRO/h510m-pro-03--500x500.png "MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard")
/H510M PRO/h510m-pro-04--500x500.png "MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard")
| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 | |
| Form Factor | mATX Form Factor | |
| Basic Information | ||
| Chipset | Intel H510 Chipset | |
| Audio | 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) - Support up to PCIe 4.0 for 11th Gen Intel CPU - Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot with E key for WiFi module only(M2_2) | |
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | support up to 64GB | |
| Graphics | ||

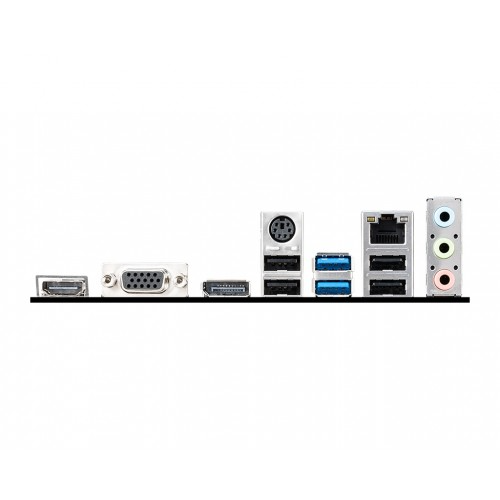

| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| USB (s) | - 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
|
| LAN | 1x Intel I219V 1Gbps LAN controller |
|
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) - M2_1 slot (From H510 Chipset) - Supports up to PCIe 3.0 x4 - Supports SATA 6Gb/s1 - Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |
The MSI H510M PRO is a versatile and feature-packed Micro-ATX motherboard designed to support both 10th Gen and 11th Gen Intel Core processors, Pentium Gold, and Celeron processors. This makes it an excellent choice for users seeking a reliable and upgradable platform for their desktop systems.One of the key highlights of this motherboard is its robust audio capabilities. With 7.1-Channel High Definition Audio, users can enjoy immersive and high-quality sound output, perfect for gaming, entertainment, and multimedia experiences.The motherboard is built around the Intel H510 chipset, providing a stable and efficient foundation for the system. Its mATX form factor allows it to fit into smaller computer cases, making it ideal for compact builds without compromising on performance.For graphics output, the MSI H510M PRO offers various options, including an HDMI 2.0b port with HDR support, enabling 4K resolution at 60Hz. Additionally, it features a VGA port, supporting resolutions of up to 2048x1536 at 60Hz, and a DisplayPort 1.4 port, capable of delivering 4K resolution at 60Hz.When it comes to connectivity, this motherboard has an array of internal I/O ports, including multiple USB connectors, SATA 6Gb/s connectors, fan connectors, and more. The presence of USB 3.2 Gen 1 and USB 2.0 connectors ensures fast data transfer rates and sufficient ports to connect peripherals.The networking capabilities are catered to by the Intel I219V 1Gbps LAN controller, providing a reliable and stable Ethernet connection for online activities, gaming, and data transfer.The MSI H510M PRO also offers expansion options with its PCIe slots. It features one PCIe x16 slot, which supports PCIe 4.0 for 11th Gen Intel CPUs and PCIe 3.0 for 10th Gen Intel CPUs. Additionally, there is one PCIe 3.0 x1 slot for further expansion needs.Memory support is extensive, with two DDR4 memory slots allowing a maximum capacity of up to 64GB. The motherboard supports various memory speeds, including 2133/2666/2933 MHz for 10th Gen Intel CPUs and 2133/2666/2933/3200 MHz for 11th Gen Intel CPUs. It also supports Intel Extreme Memory Profile (XMP) for easy overclocking and optimization.
