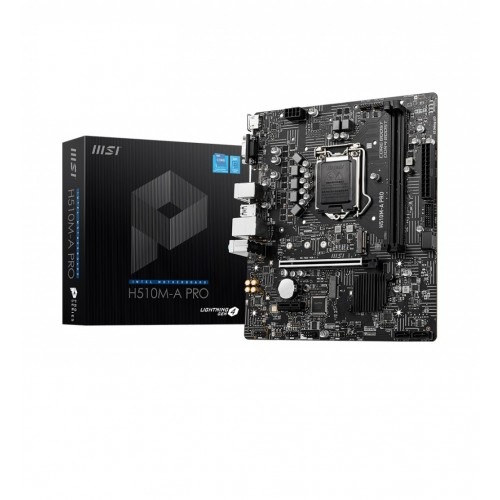

/H510M-A PRO/h510m-a-pro-01--500x500.png "MSI H510M-A PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard")
| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors | |
| Form Factor | mATX Form Factor | |
| Basic Information | ||
| Chipset | Intel H510 Chipset | |
| Audio | 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot with E key for WiFi module only(M2_2) |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2x DDR4 memory slots, | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP |
|
| Maximum Memory | support up to 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
|
| Connector & Ports | ||
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector) |
|
| LAN | 1x Intel I219V 1Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |
The MSI H510M-A PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard is a reliable and feature-packed motherboard designed to support Intel's 10th and 11th Gen Core processors, as well as Pentium Gold and Celeron Processors. With its micro-ATX form factor, it is suitable for compact PC builds without compromising on performance.One of the notable features of this motherboard is its support for up to 64GB of DDR4 memory. With two DDR4 memory slots and support for dual-channel mode, it offers smooth and efficient performance for multitasking and demanding applications. The motherboard also supports Intel Extreme Memory Profile (XMP), allowing for easy overclocking and optimization of memory performance.In terms of connectivity, the MSI H510M-A PRO motherboard provides various options. It includes multiple USB ports, including four USB 3.2 Gen 1 5Gbps ports and six USB 2.0 ports. The USB 3.2 Gen 1 ports deliver high-speed data transfer rates, while the USB 2.0 ports are suitable for connecting peripherals and accessories. The motherboard also features an HDMI 2.0b port with HDR support, enabling 4K resolution at 60Hz for immersive visuals. Additionally, it offers a VGA port for legacy display connections.
For storage, the motherboard offers four SATA 6Gb/s ports and an M.2 slot. The SATA ports provide support for traditional storage devices, while the M.2 slot supports PCIe 3.0 x4 and SATA 6Gb/s devices, allowing for high-speed storage solutions. The M.2 slot also supports 2242, 2260, and 2280 form factors, providing flexibility for various storage configurations.The MSI H510M-A PRO motherboard incorporates a 7.1-channel high-definition audio system, delivering immersive and crystal-clear sound. It also includes an Intel I219V 1Gbps LAN controller for reliable and fast network connectivity.
Whether you're a seasoned builder or fresh, the H510M-A PRO gives you a good range of enhancements designed to make installation more accessible and reliable. The H510M-A PRO offers massive compatibility options that support Intel 11th Gen and 10th Gen processors. Memory modules with overclocking capabilities and Windows 10 certification for smooth daily operation. PCIe Steel Armor slots provide a reliable connection while maintaining a high level of durability with extra solder points and a steel shield that forestalls electromagnetic interference. Frozr AI Cooling and Fully Fan Control manage temperatures within your system and protect your components from damage caused by excessive heat.
Equipped with a good range of headers and ports, the H510M-A PRO offers the robust flexibility found in larger boards during a compact form factor. USB 3.2 Gen 1 capabilities provide you with data transfer rates up to five Gb/s speed. Experience enhanced wired networking speeds with Gigabit Ethernet and LAN Manager, providing high-bandwidth and low-latency network capabilities ideal for managing online documents, watching media, and participating in competitive online games. An M.2 E-Key Slot allows you to equip this board with Wi-Fi and Bluetooth capabilities.
MSI designed the H510M-A PRO to reinforce professional workflow by offering different systems aimed to streamline your experience. DDR4 Boost and XMP enhance your memory's performance and efficiency, with Core Boost providing a premium layout that optimizes power flow. Lightning PCIe 4.0 offers data transfer accelerates to 64 GB/s, ensuring optimal performance for graphics and utility cards. Audio Boost, Isolated Audio Signal, and De-Pop protection strengthen the Realtek 7.1-channel audio for more immersive and clear sound without feedback.
The PRO series motherboard contains a delegated security function within the BIOS that protects every private file you create, keeping your information safe and secure. Easily take hold of your settings with advanced motherboard features designed for users who wish to fine-tune every aspect of their build with MSI Center.
