| BASIC INFORMATION | ||
| Type | 8GB GDDR7 | |
| Feature | Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time. Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world. |
|

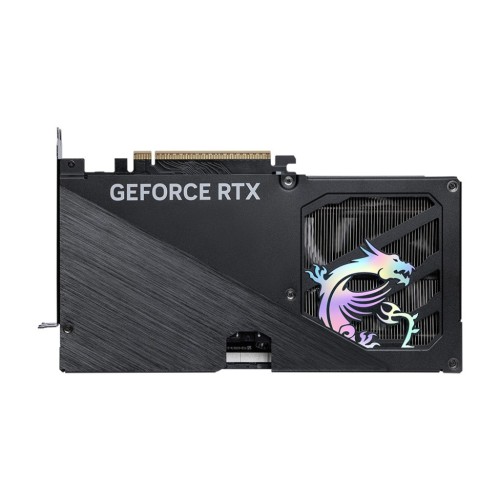

| Material | Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. | |
| Basic Information | ||
| Others | TWIN FROZR 10: Experience superior cooling and quieter performance with MSI's enhanced fan blade design. STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise. |
|
| Key Features | ||
| Performance | Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz (GAMING & SILENT Mode) |
|
| Speed | Memory Speed 28 Gbps | |
| Interface | ||
| Display Port | DisplayPort x 3 (v2.1b) | |
| HDMI | HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| Temperature | ||
| Temperature | Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred. |
|

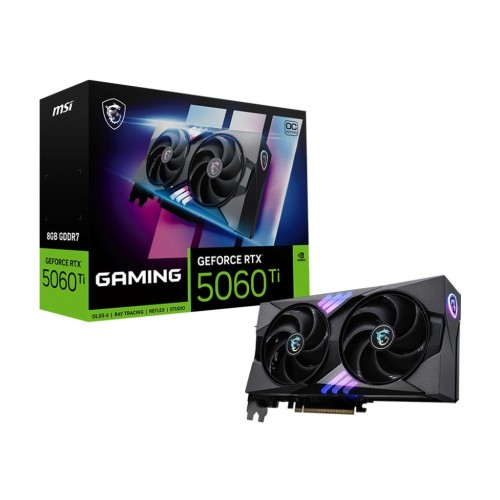

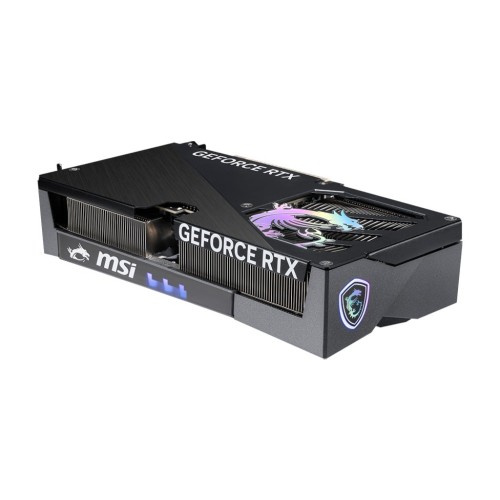

MSI GeForce RTX 5060 Ti 8G GAMING OC GDDR7 Graphics Card
The MSI GeForce RTX 5060 Ti 8G GAMING OC is part of NVIDIA's latest RTX 50-series lineup, offering a balance between performance and affordability for 1080p and 1440p gaming.
Key Specifications
GPU Architecture: NVIDIA Blackwell
CUDA Cores: 4,608
Memory: 8GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Boost Clock: Up to 2,617 MHz (Extreme Performance via MSI Center)

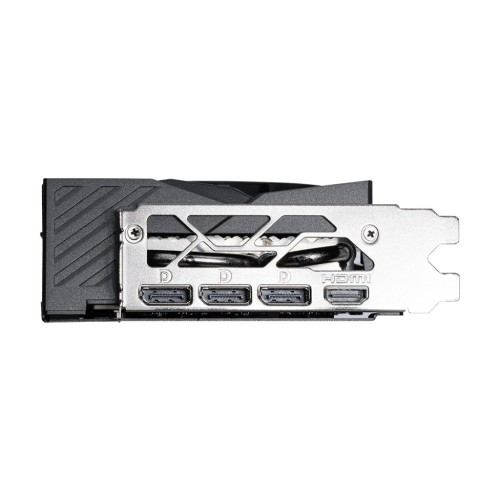

Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b (supports up to 8K@120Hz with DSC)
Power Consumption: 180W (requires 1x 8-pin connector)
Recommended PSU: 600W
Maximum Resolution: 7680 x 4320
Features: DLSS 4, Ray Tracing, PCIe 5.0 support

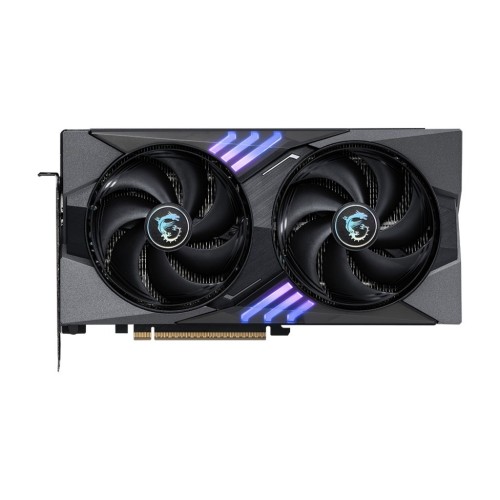

Cooling: Dual TORX Fan 5.0 with optimized airflow
Software: MSI Center for performance tuning
