| BASIC INFORMATION | ||
| Feature | MSI Center lets you monitor, tweak, and optimize MSI products in real-time easily Afterburner: Leading software for full graphics card overclocking control |
|

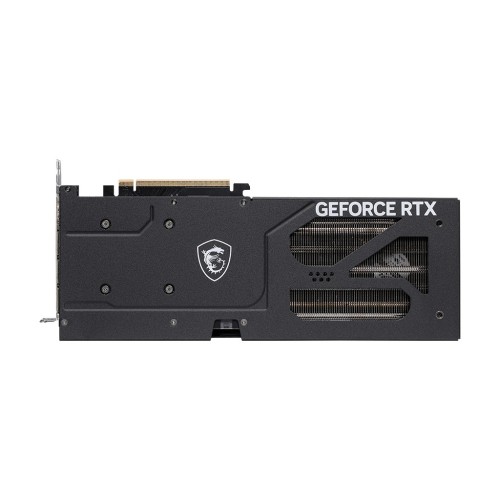

| Material | Metal backplate with vents and thermal pads boosts cooling efficiency | |
| Basic Information | ||
| Others | STORMFORCE Fan: Seven blades with claw texturing for optimal airflow and minimal noise Solid Baseplate: Transfers GPU heat to heat pipes for enhanced cooling |
|
| Type | 16GB GDDR7 | |
| Key Features | ||
| Performance | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz (GAMING & SILENT Mode) |
|
| Speed | Memory Speed: 28 Gbps | |
| Interface | ||
| Display Port | DisplayPort x 3 (v2.1b) | |
| HDMI | HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| Temperature | ||
| Temperature | Heat pipes efficiently transfer heat from the GPU, enhancing overall cooling performance | |

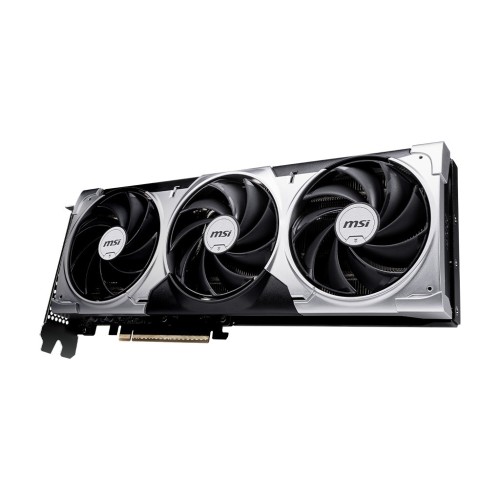

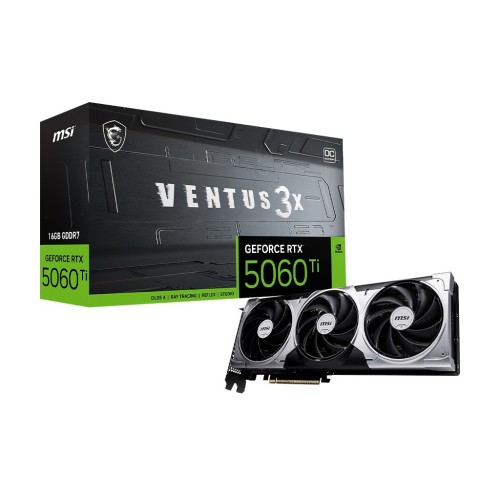

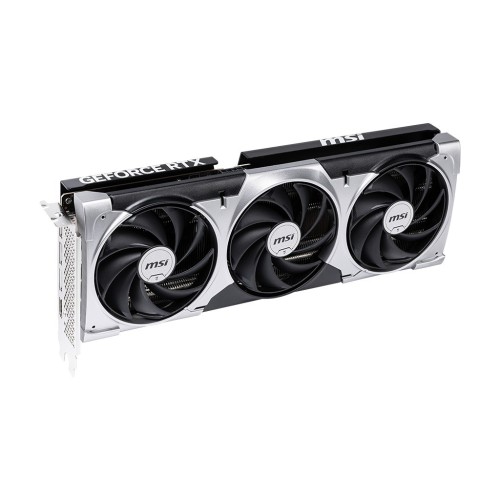

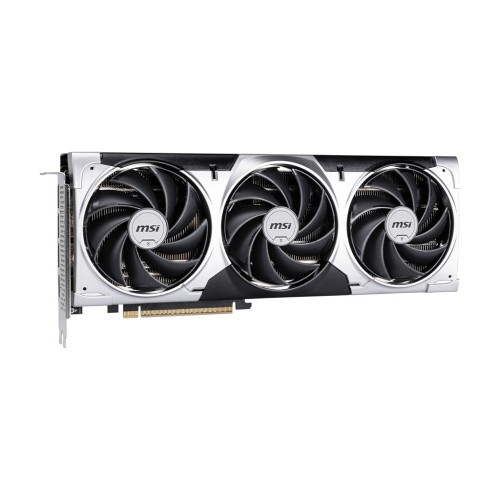

MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC GDDR7 Graphics Card
The MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC is a newly launched mid-range graphics card built on NVIDIA’s Blackwell architecture. It features 16GB of GDDR7 memory, making it well-suited for high-resolution gaming, creative workloads, and AI-enhanced applications.
Key Specifications
GPU Architecture: NVIDIA Blackwell
CUDA Cores: 4,608
Memory: 16GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Boost Clock: Up to 2,617 MHz (via MSI Center)
Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b (supports up to 4K@480Hz or 8K@120Hz with DSC)
Power Consumption: 180W (requires 8-pin connector)
Recommended PSU: 600W
Card Dimensions: 306 x 121 x 44 mm
Cooling: Triple-fan TORX Fan 5.0 system with vapor chamber and core pipes
Software: MSI Center with AI Tuning and Afterburner for overclocking
Dual BIOS: Switch between GAMING and SILENT modes
