| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Connector & Ports | ||
| Ports | 1 x DisplayPort | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|

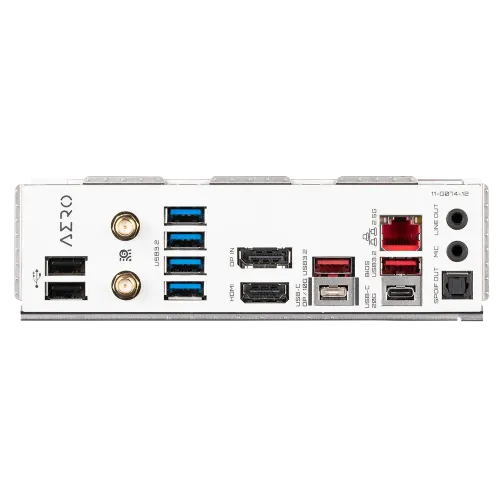

| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application mayalso vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

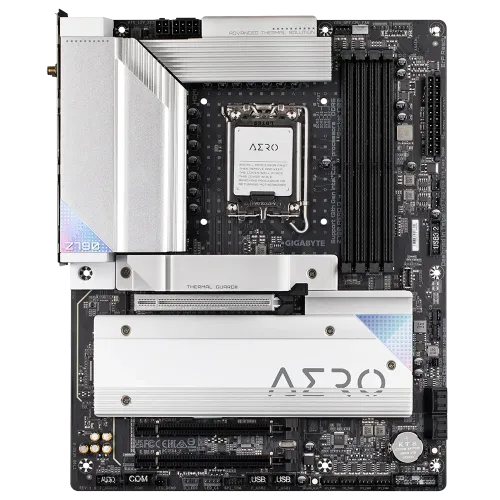

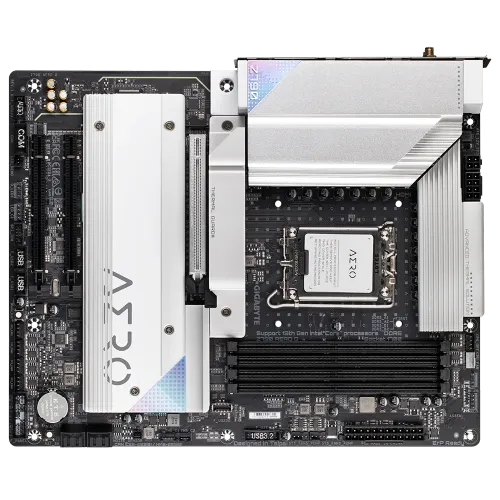

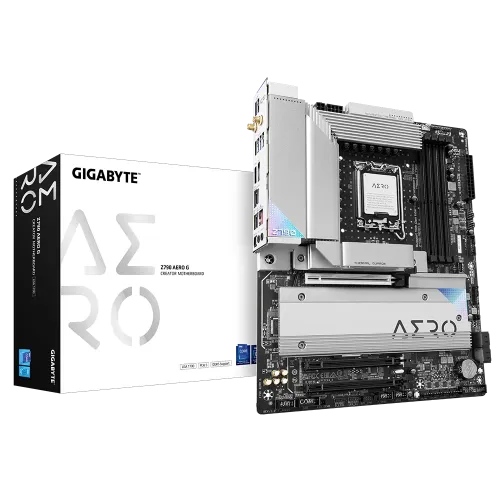

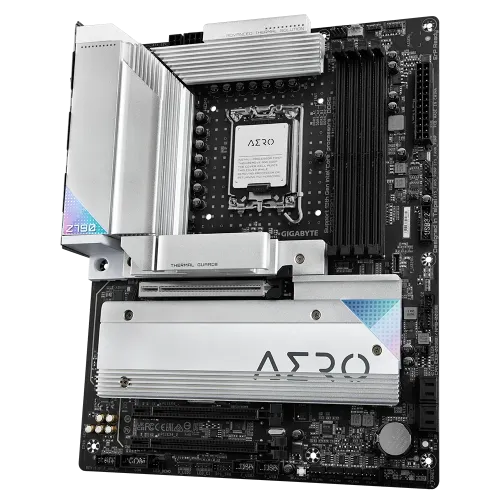

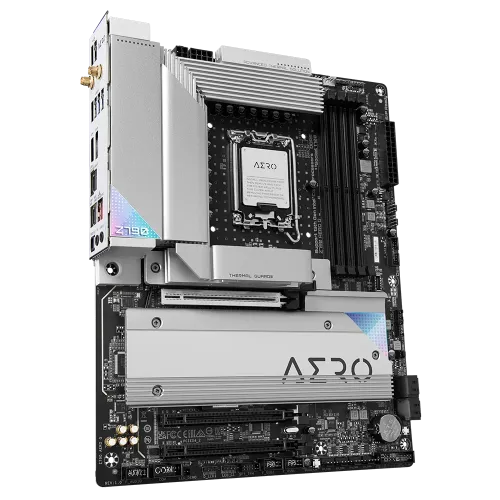

The GIGABYTE Z790 AERO G ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. The motherboard comes with 4x SMD DIMMs with XMP 3.0 Memory Module Support. It offers support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. It comes with a GIGABYTE VisionLINK port, and you can transfer data, video, and power charging via a single USB Type-C cable. The motherboard is equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, which is also ready for a new PCIe 5.0 graphics card or storage device. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration. The GIGABYTE Z790 AERO G is equipped with Intel 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing, and fast data transfers. Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 AERO G ATX Motherboard comes with 3 years of warranty.
