| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, Support For: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors (Please Refer "CPU Support List" For More Information.) |
|
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm X 24.4cm | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel |
|
| Memory | ||
| Memory | Support For DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules . Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules ECC Memory (ECC Mode) Support Varies By CPU Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (Please Refer "Memory Support List" For More Information.) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz Support For HDMI 2.1 Version, HDCP 2.3, And HDR. |
|

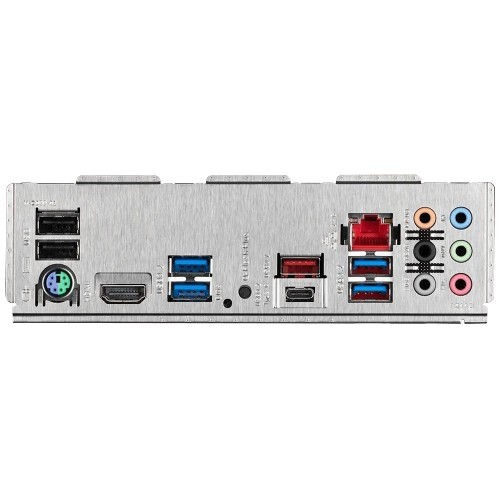

| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2242 /2260/ 2280/ 22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Support SATA And PCIe 4.0 X4/X2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors Support SATA And PCIe 3.0 X4/X2 SSDs 1 X M.2 Connector (M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/ 2260/ 2280/ 22110 SSDs: Supporting PCIe 4.0(Note)/3.0 X4/X2 SSDs 1 X M.2 Connector (M2B_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: Supporting SATA And PCIe 4.0(Note)/3.0 X4/X2 SSDs 6 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10 (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Only. |
|
| Internal I/O Ports | Internal I/O Connectors 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 3 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Clear CMOS Jumper |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

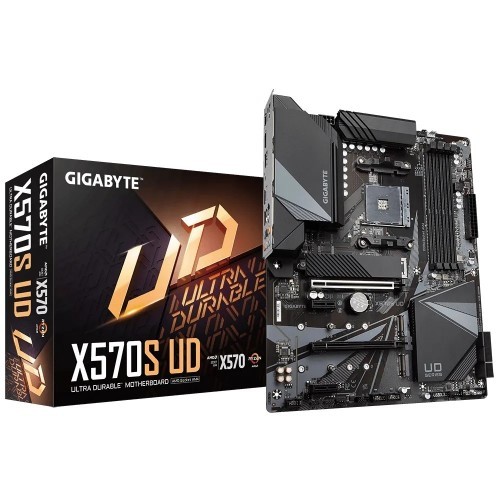

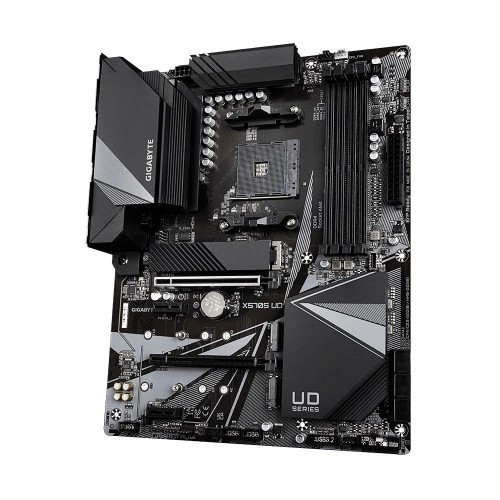

GIGABYTE X570S UD Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise. With populated 4 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing. Gigabyte X570S UD uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming. With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE motherboard and reinforce every slot to make each of them solid and durable. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. Gigabyte X570S UD motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
