| Basic Information | ||
| Chipset | Intel® X299 Express Chipset | |
| Audio | Realtek® ALC1220 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Memory | ||
| Memory | 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Support for up to 512 GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above). 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core). 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode) Support for Extreme Memory Profile (XMP) memory modules |
|
| Connector & Ports | ||
| LAN | Intel® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots. |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

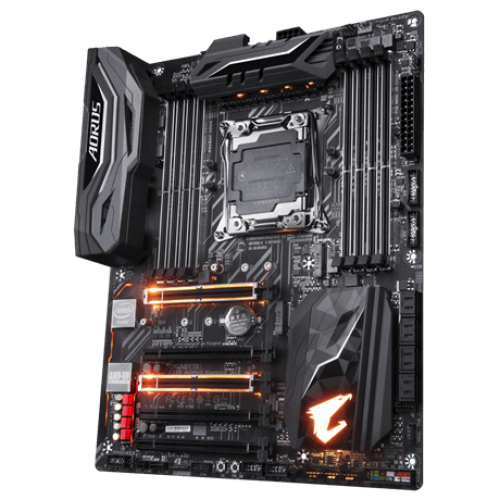

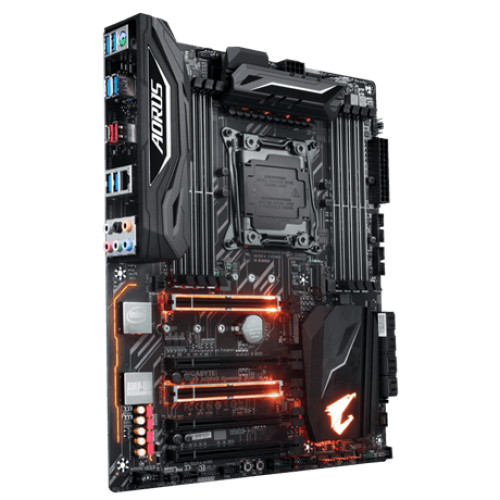

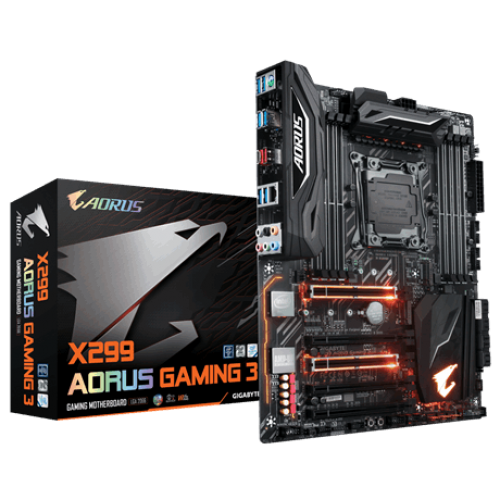

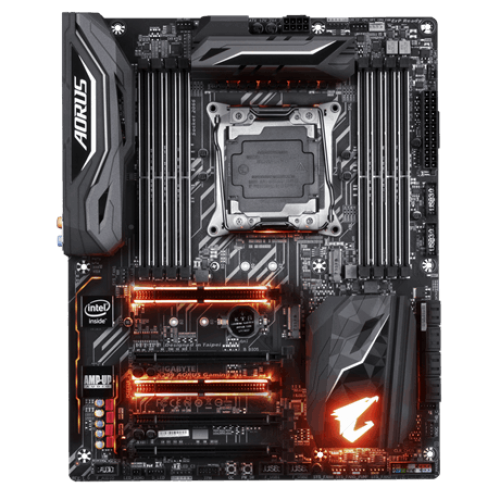

The Gigabyte X299 AORUS Gaming 3 Motherboard is a high-performance motherboard designed for gaming enthusiasts and power users. It features an Intel X299 Express Chipset, providing excellent stability and support for the latest Intel Core X series processors in the LGA2066 package.One of the standout features of this motherboard is its audio capabilities. It comes equipped with the Realtek ALC1220 audio codec, delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations. Additionally, it supports S/PDIF Out for enhanced audio connectivity options, ensuring an immersive gaming or multimedia experience.In terms of expansion slots, the Gigabyte X AORUS Gaming 3 offers a variety of options to accommodate your needs. It includes two PCI Express x16 slots running at x16, one PCI Express x16 slot running at x8, and two PCI Express x16 slots running at x4. These slots conform to the PCI Express 3.0 standard, allowing for seamless compatibility with modern graphics cards and other expansion devices. The motherboard also supports AMD CrossFire and NVIDIA SLI configurations for multi-GPU setups.Memory-wise, the motherboard provides ample capacity and flexibility. It features eight DDR4 DIMM sockets supporting up to 128 GB of system memory, with support for up to 512 GB when using Registered DIMMs. The memory architecture varies depending on the CPU used, with support for both four-channel and dual-channel configurations. It also supports non-ECC un-buffered DIMM modules and Extreme Memory Profile (XMP) memory modules for easy overclocking.The Gigabyte X299 AORUS Gaming 3 offers extensive connectivity options. It includes Intel GbE LAN chip for reliable and fast network connections, and multiple storage options such as M.2 connectors (supporting both SATA and PCIe x4/x2 SSDs) and SATA 6Gb/s connectors with support for RAID 0, RAID 1, RAID 5, and RAID 10 configurations.
