| BASIC INFORMATION | ||
| Supported CPU | LGA1700 Socket: Support For 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* | |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z690 Express Chipset | |
| Audio | 1 X Front Panel Audio Header | |
| Memory | ||
| Slots | 1 X PCI Express X16 Slot, Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. (The PCIEX16 Slot Conforms To PCI Express 5.0 Standard.) 2 X PCI Express X16 Slots, Running At X4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 Slots Conform To PCI Express 3.0 Standard.) |
|
| Memory | Support For DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics Support: 1 X USB Type-C Port, Supporting USB Type-C And DisplayPort Video Outputs And A Maximum Resolution Of 4096x2304@60 Hz * Support For Drawing Tablets And 20V@3A Of Power Delivery. * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@30 Hz * Support For HDMI 1.4 Version And HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 2 X M.2 Connectors (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2P_SB, M2Q_SB) 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA And PCIe 4.0 X4/X2 SSD Support) (M2M_SB) 6 X SATA 6Gb/S Connectors |
|
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 4 X System Fan Headers 2 X System Fan/Water Cooling Pump Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 4 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Noise Detection Header 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Serial Port Header 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 2 X Temperature Sensor Headers 1 X Clear CMOS Jumper |
|

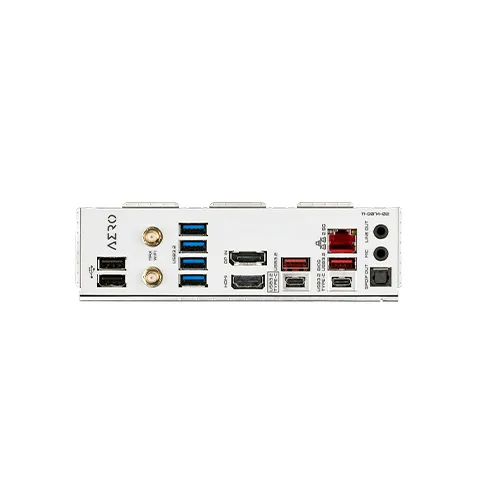

| USB Port | 2 X USB Type-C® Ports, With USB 3.2 Gen 2x2 Support (1 Port On The Back Panel, 1 Port Available Through The Internal USB Header) 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 1 Support 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset+USB 2.0 Hub: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
|
| WiFi | WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate * Actual Data Rate May Vary Depending On Environment And Equipment. |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

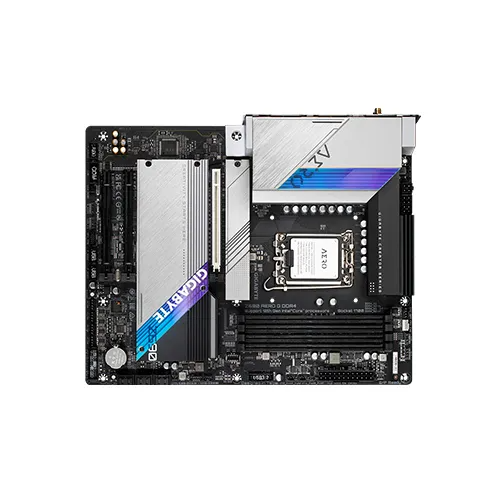

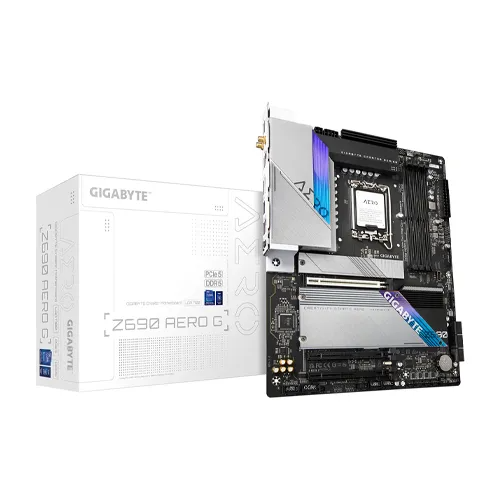

The Gigabyte Z690 Aero G Creator Motherboard Has A Unique VisionLINK I/O Design And Includes Support For The New Generation Of DDR5 Memory. The AERO Series Motherboards Are A Fresh Approach To Creators That Evolve With Optimized Features For Content Creation With Plenty Of Connectivity Options. To Deliver Reliable Computing Performance, Impressive Connectivity, Expandable Graphics, And Ultra-Fast Storage For Creators To Deal With Heavy Design Workloads Like 3D Rendering And Feature-Length Video Production.
VISION LINK ALLOWS FOR MORE POSSIBILITIES
GIGABYTE VisionLINK Is An Extension Of Your Idea And Creation. Transmitting Data, Video Output, And Power Charging All Through One USB Type-C® Cable Will Simplify The User Experience Than Ever. With Seamless Multitasking Between Your PC And Devices, It Lets You Work Like A Pro.
WIFI 6 IS IDEAL FOR ALL YOUR ONLINE ACTIVITIES
Onboard WIFI 6 Technology Supports 802.11ax With Bluetooth Module Technology, Enables Gigabit Wireless Performance, Fewer Dropped Connections, And Reduces Congestion In Heavy Bandwidth Usage Scenarios. Moreover, Providing Better WIFI Signal Strength Of The Antenna Design Compared To A Traditional Antenna. Intel® 2.5 GbE Network Connectivity Supports Speeds Up To 2.5 Times Faster Than Gigabit Ethernet. It Gives An Immediate Boost To Overall Network Performance And Data Transfer Speeds. To Feature The USB 3.2 Gen 2x2 Connectivity Design, Which Is Double Performance Than The Current USB 3.2 Gen 2. It Works Up To 20Gbps Ultra-Fast Data Transfer While Connecting To USB 3.2 Compliant Peripherals. You Can Enjoy The Ultimate Connection Flexibility To Access And Store Massive Amounts Of Data Rapidly.
THE FASTEST AND MOST ROBUST LEVEL
You Can Never Have Enough Memory Bandwidth, And DDR5 Helps Meet This Insatiable Need For Speed. Whether You Are Editing Hundreds Of Audio Samples, Handling 4K Footage, Or Multitasking Workloads, It Boosts System Performance And Offers You A Smooth Experience. DDR5 Delivers At Least 1.5X More Bandwidth Than The Prior Generation. This Will Facilitate The Bandwidth Needed For Some Applications, Such As AI Training And Content Creation. A Single Memory Slot Of The Gigabyte Z690 Aero G DDR5 Motherboard Can Support Up To 32GB. With Populated 2 DIMMs Per Channel On GIGABYTE Z690 Motherboards, The Maximum Memory Capacity Support Is 128GB. You Can Experience Faster Performance And Instant Access Without Any Lag.
Equipped With The PCIe 5.0 X16 Slot Designed To Optimize Multitasking And Large Workloads, That Is Also Ready For A New PCIe 5.0 Graphics Card Or Storage Device. Brings A New Level Of Performance For Demanding Applications In The High-Performance Market. Up To 128 GB/S From New PCIe 5.0 X16 Slot Designs For The Next Generation Add On Cards Need Tremendous Bandwidth, Including The Graphics Card, Deep Learning Accelerator Card And The Video Capture Card.
QUAD PCIE M.2
To Equip With Four PCIe 4.0 M.2 Sockets, Delivering Superior Bandwidth And Upgrading Your Storage Capacity To Accelerate Creative Workflow. PCIe 4.0 M.2 SSD Gives You 7X Faster Data Transferring Experience Compared To 2.5” SATA Solid-State Drives. GIGABYTE M.2 Solution Provides NVMe SSD RAID Support For The Considerably High Storage Performance. To Feature Full-Speed PCIe 4.0 M.2 Sockets As The Best Configuration For Creators Who Demand High Capacity And Fast Storage Ability. GIGABYTE M.2 Solution Provides NVMe SSD RAID Support For The Considerably High Storage Performance. To Feature Full-Speed PCIe 4.0 M.2 Sockets As The Best Configuration For Creators Who Demand High Capacity And Fast Storage Ability.
IMPECCABLE THERMAL TECHNOLOGY
Numerous Hybrid Fan Headers And Temperature Sensors Are Planted On The Motherboard To Monitor In Real Time And Configure Fan Mode To Fit Different Workloads Via Smart Fan 6. Creators Are Allowed To Set The Trigger Point To Activate The Fan And Its Corresponding Speed. The Fan Completely Stops When Performing Light Tasks To Avoid Noise. An Effective Cooling Solution Can Prevent The Risk Of Design Work Being Interrupted By An Unexpected System Crash. GIGABYTE’s Advanced Thermal Solutions Provide A Perfect Balance Of Aesthetics And Performance. A Large Heat Sink Design And Direct-Touch Heatpipe II Ensure Stability During Creative Sessions.
