| Basic Information | ||
| Audio | Realtek Audio CODEC |
|
| Audio | 1x DisplayPort | |
| Audio | 1 x front panel audio header |
|
| Basic Information | ||
| BIOS | 1 x 256 Mbit flash |
|
| Chipset | Intel B760 Express Chipset | |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, |
|
| BASIC INFORMATION | ||
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
|
| Maximum Memory | 128GB | |
| Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| USB Port | 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

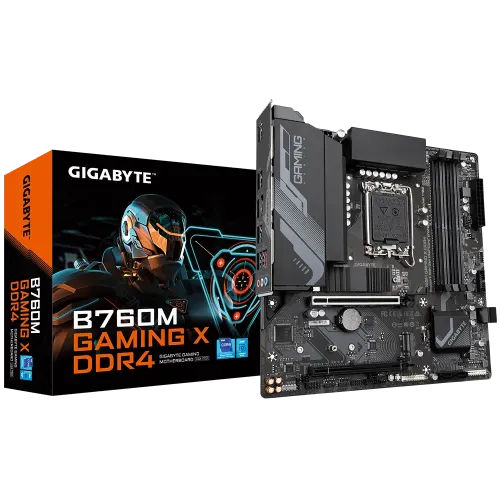

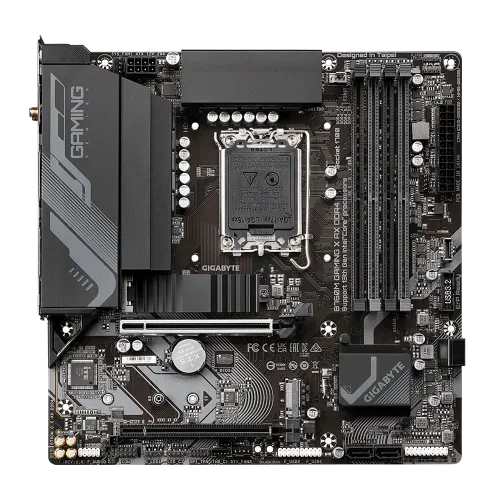

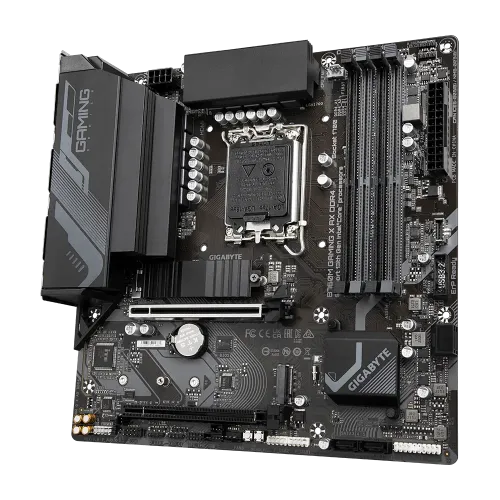

The GIGABYTE B760M GAMING X DDR4 is an mATX motherboard built for Intel CPUs from the 13th and 12th generations. It offers an 8+1+1 phase hybrid digital VRM technology for unrivaled performance, dual channel DDR4 compatibility with 4 DIMMs, and next-generation storage with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard and improved thermal design assure VRM power stability and M.2 SSD performance. The 14th Gen Motherboard has an EZ-Latch PCIe 4.0x16 slot with a quick-release design, a fast 2.5GbE LAN, and enhanced connection choices such as front USB-C 10Gb/s, DP, and HDMI. Multiple temperature sensors and hybrid fan headers with fan stops are included in the Smart Fan 6 technology. The Q-Flash Plus function enables simple BIOS updates without the need to install the CPU, RAM, or graphics card.
