| BASIC Information | ||
| Size | 16GB | |
| Basic Information | ||
| Type | GDDR7 | |
| Basic Information | ||
| Resolution | 7680 x 4320 | |
| Video Memory Specifications | ||
| Core Clock | 2805 MHz | |
| BUS Type | PCI-E 5.0 | |
| CUDA Cores (Nvidia) | TBD | |
| Memory Clock | 30 Gbps | |
| Memory Interface | 256 bit | |
| Features | ||
| Dimension | L=360 W=150 H=75 mm | |
| Interface | ||
| Display Port | DisplayPort 2.1b x3 | |
| HDMI | HDMI 2.1b x1 | |
| Connectivity | ||
| Connectors | 16 pin*1 | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL 4.6 | |
| DirectX | DirectX 12 API | |
| Physical Specification | ||
| Recommended PSU | 850W | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 4 Years Warranty (Online registration required) | |

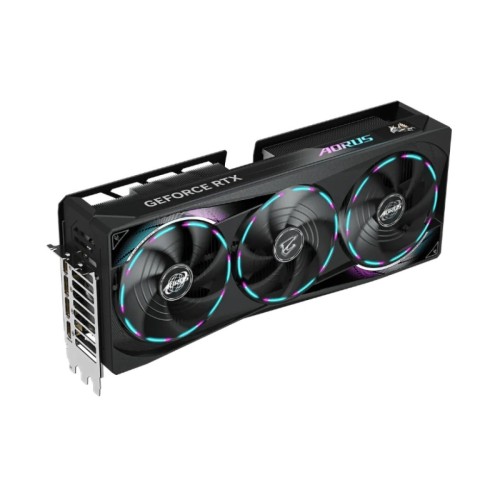

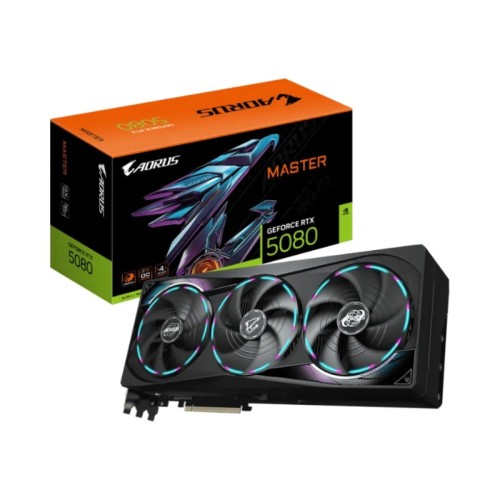

Gigabyte AORUS GeForce RTX 5080 MASTER 16GB Graphics Card
The Gigabyte AORUS GeForce RTX 5080 MASTER 16GB is a high-performance graphics card designed for gamers and professionals seeking exceptional visual experiences. Building upon NVIDIA's Blackwell architecture, this GPU offers advanced features and robust specifications to handle demanding applications.
Key Specifications:
GPU Architecture: NVIDIA Blackwell
CUDA Cores: 10,752
Base Clock: 2295 MHz
Boost Clock: 2805 MHz
Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 30 Gbps
Memory Bandwidth: 960 GB/s
Power Consumption: 360W
Power Connector: 1x 16-pin
Recommended PSU: 850W
Outputs:
3 x DisplayPort 2.1a
1 x HDMI 2.1b
Dimensions: 360 mm (L) x 150 mm (W) x 75 mm (H)
Slot Width: Quad Slot
Advanced Features:
WINDFORCE Cooling System: Utilizes triple fans and advanced heat dissipation technologies to maintain optimal temperatures during intensive tasks.
RGB Lighting: Offers customizable RGB lighting to synchronize with other AORUS devices for a personalized aesthetic.
Reinforced Structure: Ensures durability and longevity, even under heavy workloads.
Performance Overview:
The RTX 5080 delivers a 15% performance improvement over its predecessor, the RTX 4080, offering enhanced efficiency and lower heat production. However, it falls short of surpassing the RTX 4090, trailing by approximately 18%. Features like DLSS 4 and Multi-Frame Generation further enhance frame rates and visual quality.
