| Basic Information | ||
| Chipset | AMD A520 | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Memory | ||
| Memory | Type: Dual channel memory architecture Slots: 2 x DDR4 DIMM Supported Memory: 3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Maximum Memory: 64 GB |
|
| Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Graphics | ||
| Graphics | Graphics: Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
|

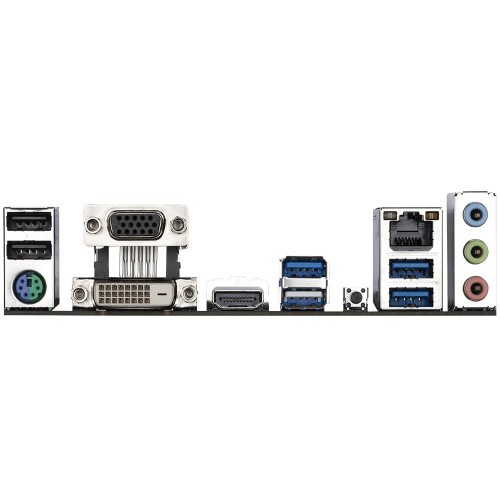

| USB Port | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

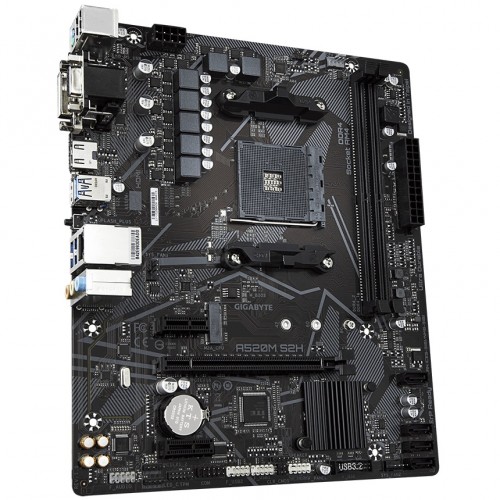

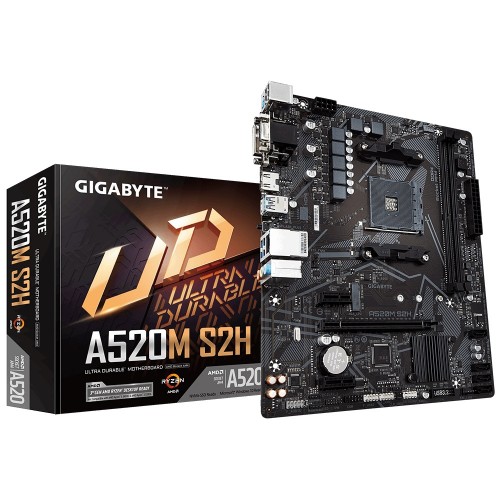

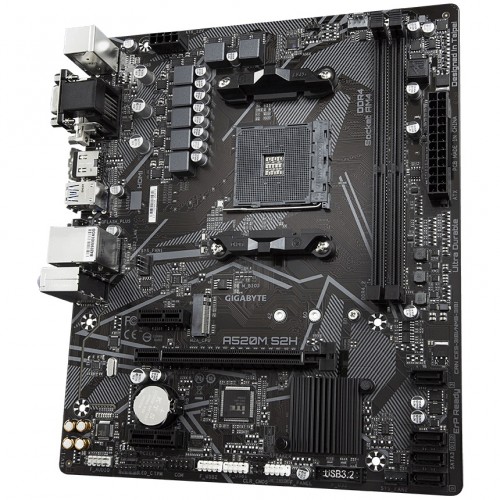

Gigabyte A520M S2H Ultra Durable Motherboard uses a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. Gigabyte A520M S2H Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application.
GIGABYTE UD Series Motherboards Use A 4+3 Phases Pure Digital PWM + Low RDS(On) MOSFETs Design To Support The 3rd Gen AMD Ryzen™ CPUs By Offering Incredible Precision In Delivering Power To The Motherboard's Most Power-Hungry And Energy-Sensitive Components As Well As Delivering Enhanced System Performance And Ultimate Hardware Scalability
GIGABYTE Motherboards Are Focused On Delivering M.2 Technology To Enthusiasts Who Want To Maximize Their System’s Potential.
High Speed Gigabit LAN With Automatic Bandwidth Allocation
Realtek 8118 LAN Is A High Performance And Friendly Network Chip For Gaming Players With Automatic Bandwidth Allocation To Ensure The Highest Network Priority Of The Game Or Application. It Can Provide Users The Most Comprehensive Features And The Fastest And Smoothest Internet Experience.
GIGABYTE Motherboards Use ICs With Up To 3 Times The ESD Resistance Levels Compared To Traditional ICs. This Helps To Better Protect The Motherboard And Its Components Against Potential Damage Caused By Static Electricity. GIGABYTE Motherboards Also Feature Special Anti-Surge ICs That Protect Your Motherboard, And Your PC From Any Surge In Power Delivery That May Occur, Helping To Ensure That Your PC Is Equipped To Deal With Any Potentially Irregular And Inconsistent Power Delivery.
