| BASIC INFORMATION | ||
| Supported CPU | Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors |
|
| Form Factor | Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L ) |
|
| Basic Information | ||
| Chipset | Intel H510 |
|
| Audio | Realtek ALC887 7.1 Channels, High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2 x PCIe 3.0 x1 Slot 1 x PCle 3.0/4.0 x16 Slot |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2 x DIMM | |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 Each DIMM supports non-ECC 4/8/16/32GB DDR4 module |
|
| Maximum Memory | Up to 64 GB | |
| Graphics | ||
| Graphics | Supports DX12 Supports HDCP |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port |
|
| USB (s) | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) |
|
| LAN | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
|
| Supported Storage | 4 x SATA III Connector (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD |
|
| Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
|
| VGA | 1 x VGA Port |
|
| Others | ||
| Bundled Software | BullGuard | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

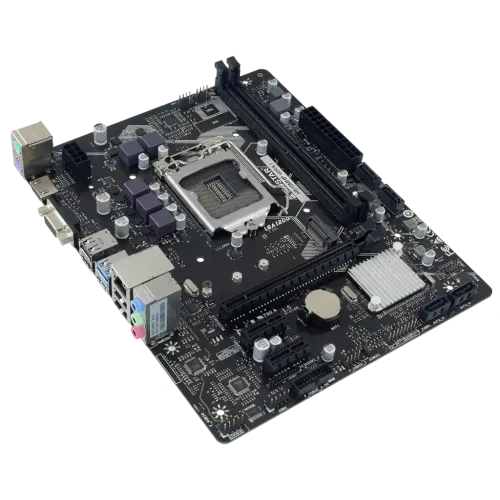

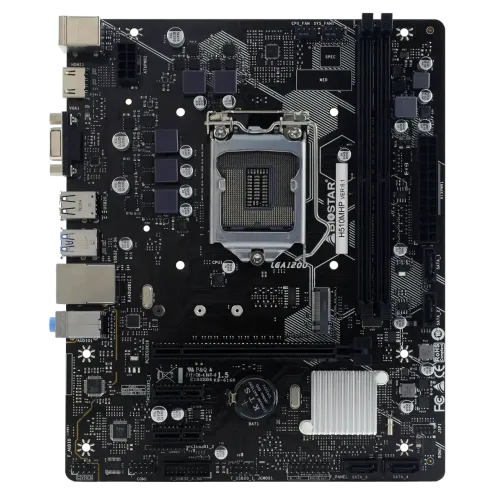

The BIOSTAR H510MHP is a micro ATX motherboard designed for 10th and 11th gen Intel Core processors. It features an Intel H510 single-chip architecture, allowing for efficient and stable performance. It offers a 5-phase VRM design with high-quality power components such as low RDS (on) Mosfet for lower temperatures and has the advantage to raise the overclocking ability. The BIOSTAR H510MHP motherboard supports 2-DIMM DDR4 memory, with speeds of up to 3200/ 2933/ 2666/ 2400/2133/ 1866 and a maximum capacity of 64 GB. It also supports PCIe 4.0 and PCIe M.2 (32Gb/s) for high-speed data transfer and storage. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s. It comes with USB 3.2 Gen1 for quick data transfer and device connectivity. The Onboard HDMI connector allows full video & audio support. It has industry-leading high-definition video quality. The BIOSTAR H510MHP motherboard provides high-quality sound with minimal loss of audio fidelity.
With the Intel® H510 chipset and the 10th/ 11th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel H510 chipset provides you with the power and performance you need.
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
Unlike ordinary LAN solution, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice for performance seekers.
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
BullGuard Internet Security comes with the broadest line-up of internet security features on the market, including: a cutting-edge dual Antivirus engine, Online Backup for your precious files, PC Tune Up to speed up your system, a Game Mode for a seamless gaming experience, Parental Control, Firewall, Safe Browsing and many more. Make the most of your digital life with Bullguard!
