| BASIC INFORMATION | ||
| Form Factor | Micro ATX | |
| Basic Information | ||
| Chipset | Intel B560 | |
| Audio | ALC897-7.1 Channels, High Definition Audio, Hi-Fi(Front) | |
| CPU | Support For 10th/ 11th Generation Intel Core I9/ I7/ I5/ I3 Processors And Intel Pentium Processors/ Intel Celeron Processors In The LGA1200 Package |
|
| Memory | ||
| Slots | 1 X PCIe 3.0 X1 Slot 1 X PCIe 4.0 X16 Slot (X16 Mode) 1 X PCIe 3.0 X16 Slot (X4 Mode) |
|
| Memory | Supports Dual Channel DDR4 4000+ (OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2666/2400/2133 4 X DDR4 DIMM Memory Slot, Max. Supports Up To 128 GB Memory Each DIMM Supports Non-ECC 4/8/16/32GB DDR4 Module |
|
| Graphics | ||
| Graphics | By CPU Model Supports DX12 Supports HDCP |
|
| Connector & Ports | ||
| HDMI | Supports HDMI 1.4 4K Resolution 1 X HDMI 1.4 Port |
|
| LAN | Intel I219V-10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability | |
| Supported Storage | Total Supports 2 X M.2 Socket And 4 X SATA III (6Gb/S) Ports 4 X SATA III Connector (6Gb/S) : Supports AHCI & Intel Rapid Storage Technology 1 X M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY): Supports M.2 Type 2280 SSD Module Supports PCIe 4.0 X 4 (64Gb/S) - NVMe/ AHCI SSD Support 11th Gen Processor Only 1 X M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST1): Supports M.2 Type 2242/ 2260/ 2280 SSD Module Supports PCIe 3.0 X 4 (32Gb/S) - NVMe/ AHCI SSD & SATA III (6Gb/S) SSD Supports Intel Optane Technology |
|
| Internal I/O Ports | 4 X SATA III Connector (6Gb/S) 1 X M.2 (E Key) Socket : Supports 2230 Type Wi-Fi & Bluetooth Module And Intel CNVi 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X CPU Water Cooling Connector (CPU_OPT) 1 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Internal Stereo Speaker Header 1 X Clear CMOS Header 1 X COM Port Header 1 X TPM Header |
|

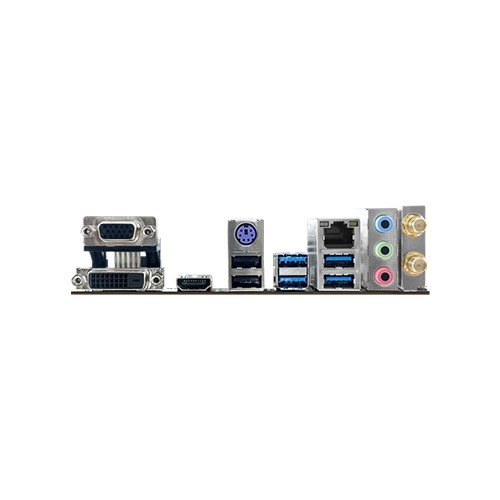

| USB Port | 6 X USB 3.2(Gen1) Port (4 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Port (2 On Rear I/Os And 4 Via Internal Headers) |
|
| WiFi | Supports WiFi 6 Module (No WiFi 6 Card Included) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

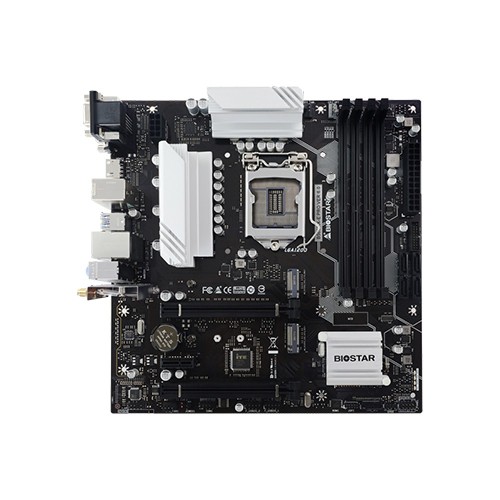

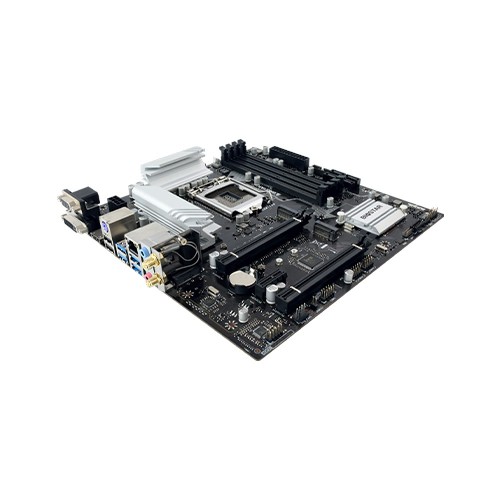

BioStar B560MX-E PRO 10th & 11th Gen Micro ATX Intel Motherboard With The Intel B560 Chipset And The 10th/11th Generation Intel Core I9/ I7/ I5/ I3 Processors And Intel Pentium Processors, You Will Immediately Be At The Forefront Of The Battlefield, Fueled By Mind-Blowing Power And Performance. From Content Creation To Gaming, The Intel B560 Chipset Provides You With The Power And Performance You Need.
BIOSTAR Hi-Fi Ground ( Golden Line ) Is Noise-Blocking Multi-Layer PCB Design To Isolates Analog Audio Signals From Digital Sources. Unique PCB Layout Is Ideal For Exceptional Clarity And High Fidelity Sound.
Smart EAR Is A Windows-Based Audio Utility Which Allows You To Easily Adjust System Volume. With Its User-Friendly GUI, You Can Also Increase Or Decrease Impedance Setting (Low/High Gain) To Optimize Your Headphone Performance. You Can Easily Enjoy High-Quality And Awesome Sound.
The New 4K2K Resolution Enables High-Definition Image Display With Four Times The Resolution Of Full HD, 4K2K Display Is Faithfully Express Bright, Highly Detailed Content That Fills The Entire Screen With Lifelike Images. Connectivity With PCs Via A Single HDMI Cable For Displaying 4K2K Data.
DVI Is Better Than VGA For LCD Displays Since It Is Digital While VGA Is Analog. For LCD Displays, The Picture Is Digitized Pixel Per Pixel. Through DVI, The Panel Gets Data For Each Pixel, So The Picture Generated In The Graphics Device Matches The Pixels On The Panel Itself.
DirectX 12 Introduces The Next Version Of Direct3D, The Graphics API At The Heart Of DirectX. Direct3D Is One Of The Most Critical Pieces Of A Game Or Game Engine, And We've Redesigned It To Be Faster And More Efficient Than Ever Before. Direct3D 12 Enables Richer Scenes, More Objects, And Full Utilization Of Modern GPU Hardware.
Unlike Ordinary LAN Solution, Intel® GbE LAN Offers Fewer CPU Resource Consumption And More Bandwidth Stability. Thus, Intel® LAN Is The Best Choice For Performance Seekers.
PCIe M.2 32Gb/S Is The Latest Storage Interface, It Delivers The Highest Bandwidth And Lower Latency. It's 3 Times Faster Compared With PCIe M.2 10Gb/S.
SATAIII 6Gbps Provides A Higher Bandwidth To Retrieve And Transfer HD Media. With This Super Speed Data Transfer, SATAIII Allows An Incredible Data Boost Which Is 2x Faster Than The SATA II.
The Primary Advantages Of DDR4 Over DDR3, Include Higher Module Density, Lower Voltage Requirements, Coupled With Higher Data Transfer Rate.
PCIe 4.0 Is The Next Evolution Of The Ubiquitous And General-Purpose PCI Express I/O Standard. At 16GT/S Bit Rate, The Interconnect Performance Bandwidth Is Doubled Over PCIe 3.0, While Preserving Compatibility With Software And Mechanical Interfaces.
PCIe M.2 4.0 Is The Latest Storage Interface, It Delivers The Highest Bandwidth And Lower Latency. It Is 2 Times Faster Compared With PCIe M.2 3.0.
USB 3.2 Gen1 Delivers A Compelling Performance Boosts And Can Be Used To Connect Multiple Devices Without Worrying About Compatibility. It Is Capable Of Data Transfer Speeds Up To 5Gbps And Backwards Compatible With All Existing USB Products.
Digital PWM Controller Is With Dual-Output Multiphase That Faster Transient Performance And Accurately Regulated Frequency Control. It Can Be Enabled To Greatly Increase System Efficiency.
Unified Extensible Firmware Interface (UEFI) Is A Brand New Framework That Provides A Revolutionary Interface. It Is A Modern Clear And Easy-To-Use Graphical User Interface. The UEFI Comes With A Colorful Easy-Understand Icons Leads Users Into The Setup Layer Directly.
BIO-Flasher Is A Convenient BIOS Update Tool. Just Launch This Tool And Put The BIOS On USB Pen Driver Before Entering The OS. You Can Update Your BIOS With Only A Few Clicks Without Preparing An Additional Floppy Disk Or Other Complicated Flash Utility.
BIOSTAR Offers One More Fan Header Which Is Called CPU OPT. Users Can Use It To Connect Any Kind Of Water Coolers For A Liquid Cooling System. Keep Your Computer Stable And Enjoy Your Machine At The Utmost Potential.
Debug LED Helps You Identify Any Issues Going With Your Board Or Hardware. When Error Occurs, The Corresponding LED Lights Will Inform You On The Status Of Your Board Or Hardware To Shorten The Test Time Effectively.
