| BASIC INFORMATION | ||
| Supported CPU | Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package | |
| Form Factor | Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L ) |
|
| Basic Information | ||
| Chipset | Intel B560 | |
| Audio | Realtek ALC897 7.1 Channels, High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x1 Slot 1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode) |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2 x DIMM | |
| Supported Memory | Supports Dual Channel DDR4 3333+(OC)/ 3200/ 2933/ 2666/ 2400/ 2133/ 1866 Each DIMM supports non-ECC 4/8/16/32GB DDR4 module |
|
| Maximum Memory | Up to 64 GB | |
| Graphics | ||
| Graphics | By CPU model Supports DX12 Supports HDCP Supports HDMI 1.4 version |
|
| Connector & Ports | ||

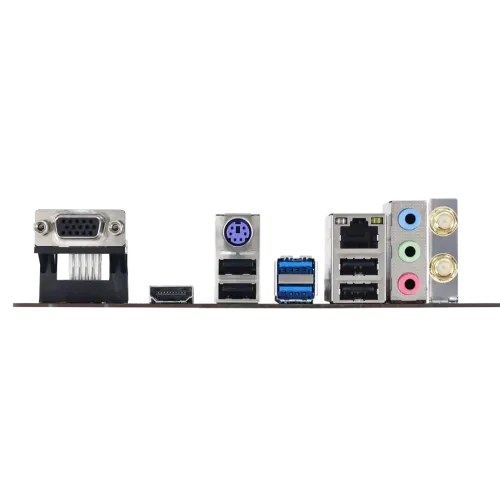

| HDMI | 1 x HDMI Port |
|
| USB (s) | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
|
| LAN | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
|
| Supported Storage | Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD |
|
| Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header * M.2 (E key) Wi-Fi card is not provided |
|
| VGA | 1 x VGA Port |
|
| Others | ||
| Bundled Software | BullGuard | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

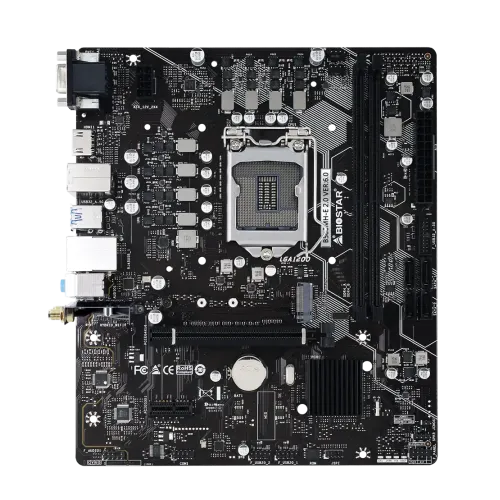

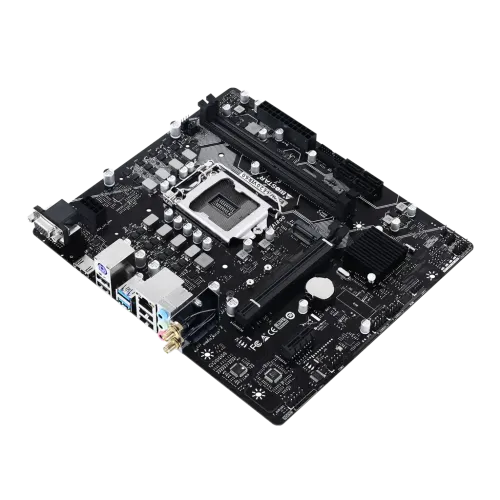

The BIOSTAR B560MH-E 2.0 is a feature-packed Micro ATX motherboard designed to support 10th and 11th Gen Intel Core processors in the LGA1200 package. This motherboard comes with an Intel B560 chipset, offering a good balance of performance and affordability for mainstream users and gamers looking to build a powerful and reliable PC.Starting with its audio capabilities, the motherboard features Realtek ALC897 audio with 7.1 channels, providing high-definition audio output for an immersive sound experience while gaming, watching movies, or listening to music. The onboard audio solution ensures excellent sound quality and support for surround sound setups.The B560MH-E 2.0 motherboard supports multiple graphics configurations, depending on the CPU model used. It allows for integrated graphics processing through the CPU with support for DirectX 12 and HDCP. Additionally, there's an HDMI 1.4 port on the rear I/O for connecting displays with up to Full HD resolution.In terms of connectivity and storage options, the motherboard provides four SATA III connectors for traditional hard drives and SATA SSDs, along with an M.2 (M Key) socket that supports M.2 Type 2242/2260/2280 SSD modules, offering PCIe 3.0 x4 (32Gb/s) and SATA III (6Gb/s) SSD support.USB connectivity is well-covered, with four USB 3.2 Gen1 ports (two on the rear I/O panel and two via internal headers) and eight USB 2.0 ports (four on the rear I/O panel and four via internal headers). These ports allow you to connect a variety of peripherals and accessories.The motherboard supports up to 64GB of DDR4 memory with speeds of up to DDR4 3333+(OC), ensuring smooth multitasking and optimal performance in memory-intensive tasks.For networking, the BIOSTAR B560MH-E 2.0 motherboard includes an Intel I219V LAN controller, providing a reliable 10/100/1000 Mb/s Ethernet connection with auto-negotiation and half/full duplex capability.The board's form factor is Micro ATX, measuring 20.8 cm x 23.6 cm, making it suitable for smaller PC cases without compromising on essential features and expansion options. It offers one PCIe 3.0 x1 slot and one PCIe 3.0/4.0 x16 slot (in x16 mode), allowing you to add a dedicated graphics card and other expansion cards as needed.
