| Basic Information | ||
| Chipset | AMD B450 Chipset | |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio | |
| CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
|
| Memory | ||
| Slots | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 3 x PCIe 2.0 x1 slots1 |
|
| Memory | 4 x DDR4 memory slots, support up to 64GB Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
|
| Graphics | ||
| Graphics | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60HzSupports 2-Way AMD® CrossFire™ Technology |
|
| Connector & Ports | ||
| LAN | 1 x Realtek® 8111H Gigabit LAN controller | |
| Supported Storage | AMD® CPU 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD® B450 4 x SATA 6Gb/s po |
|
| USB Port | 2 x USB 3.2(Gen2) + 4 x USB 3.2(Gen1) + 6 x USB 2.0 | |
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |

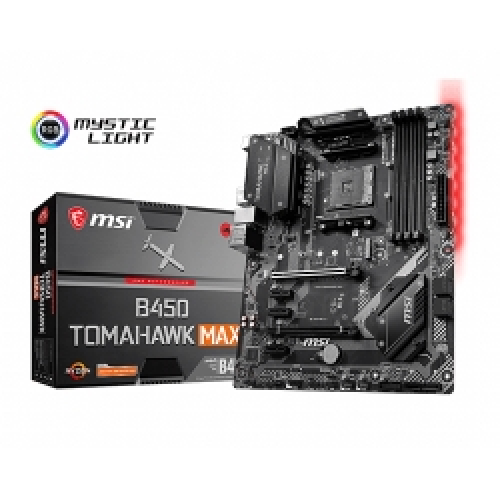

The B450 TOMAHAWK MAX MILITARY STYLE AMD GAMING MOTHERBOARD from MSI is built on the AMD B450 chipset, supporting Ryzen processors with an AM4 socket. It has four memory slots that can hold up to 64GB of DDR4 RAM running at up to 3466 MHz when overclocked. For storage, it's equipped with six SATA III ports and a single M.2 slot, which utilizes the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with DVI-D and HDMI outputs for integrated graphics, this motherboard also has one PCIe 3.0 x16 slot for a graphics card as well as a PCIe 2.0 x16 and two PCIe 2.0 x1 slots for other PCIe-based hardware. Other notable integrated features include Realtek ALC892 7.1-channel HD audio, Realtek 8111H Gigabit LAN, and MSI Mystic Light RGB lighting.
MSI Mystic Light RGB Lighting
The right side of this motherboard features built-in LED lighting. Choose from over a million colors and a variety of lighting effects to fit your style. You can also sync it with other MSI Mystic Light-compatible hardware and peripherals to complete your build.
Cooling
For cooling, this motherboard has six fan headers that support both DC and PWM modes, which allow you to manually or automatically adjust speeds within BIOS or a third-party software, so you can find your preferred balance between cooling and noise.
