| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture Slots: 4 x DDR4 memory slots Supported Memory: 3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU Maximum Memory: 128GB |
|
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| LAN | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
|

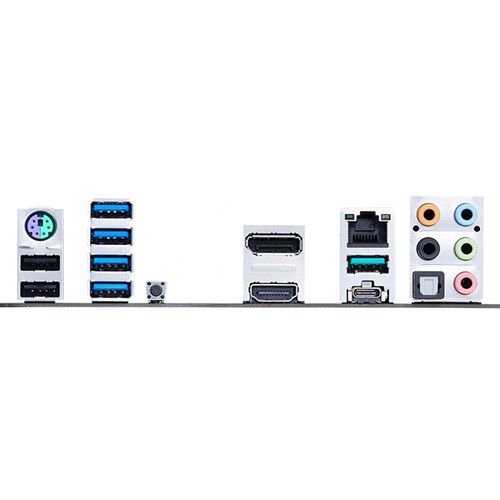

| USB Port | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

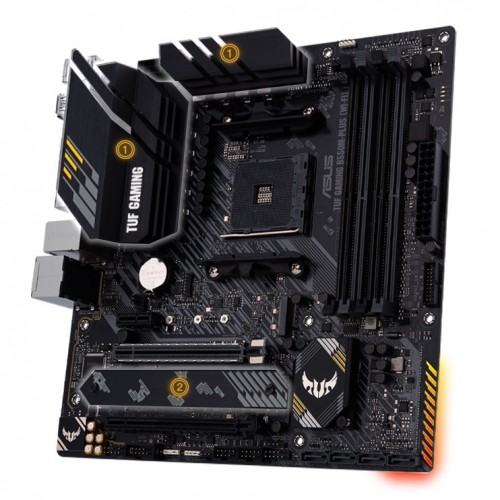

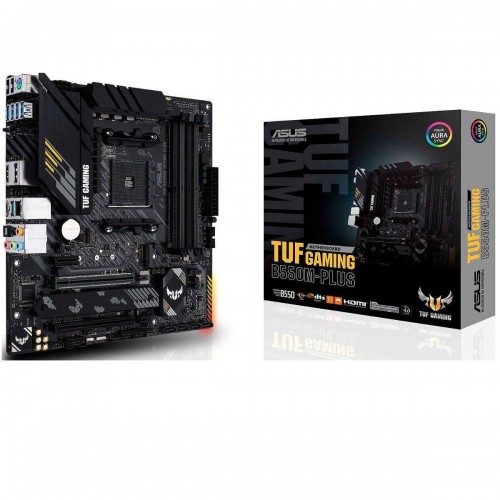

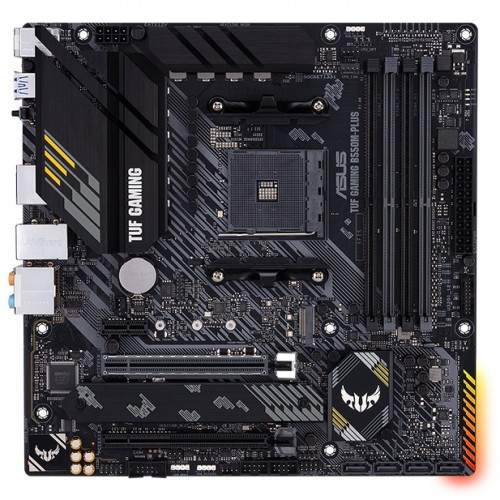

The Asus TUF Gaming B550M-Plus is a micro ATX AM4 motherboard that offers a perfect blend of performance, durability, and gaming-centric features. Designed to support the latest AMD Ryzen 5000/4000G Series and 3rd Generation Processors, this motherboard caters to gamers, content creators, and PC enthusiasts looking to build a powerful and reliable system.The motherboard's audio capabilities are top-notch, featuring the Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC. With support for up to 24-Bit/192kHz playback, gamers can immerse themselves in high-quality audio with precise positional accuracy. The audio experience is further enhanced by the Exclusive DTS Custom for GAMING Headsets, providing crystal-clear sound for an immersive gaming experience.The Asus TUF Gaming B550M-Plus boasts a robust mATX form factor, measuring 9.6 inches x 9.6 inches (24.4 cm x 24.4 cm). Despite its compact size, it doesn't compromise on features, making it ideal for smaller gaming setups or those looking to build a compact but powerful system.For graphics connectivity, the motherboard comes with 1 x DisplayPort 1.2 and 1 x HDMI 2.1, supporting resolutions of up to 4K@60Hz. It also supports AMD 2-Way CrossFireX Technology, allowing users to harness the power of multiple GPUs for enhanced graphics performance.In terms of internal I/O ports, the Asus TUF Gaming B550M-Plus offers multiple fan connectors, including CPU and Chassis Fan headers, ensuring efficient cooling to keep temperatures in check during intense gaming sessions. The motherboard also features Aura RGB Strip Headers and an Addressable Gen 2 header, enabling users to customize their system lighting with ASUS's Aura Sync software for stunning visual effects.Memory-wise, the motherboard supports Dual Channel Memory Architecture with 4 DDR4 memory slots. It can handle a maximum of 128GB of memory with speeds of up to 4600MHz (OC) for 3rd Gen AMD Ryzen Processors, offering fast and responsive multitasking capabilities.Storage options are plentiful with support for 2 x M.2 slots (PCIE 4.0 x4 and SATA modes) and 4 x SATA 6Gb/s ports (with RAID 0, 1, 10 support). Users can install high-speed SSDs on the M.2 slots for faster data access and traditional hard drives for ample storage capacity.The Asus TUF Gaming B550M-Plus also comes equipped with a Realtek RTL8125B 2.5Gb Ethernet port, ensuring ultra-fast and stable network connectivity, perfect for online gaming and content streaming.As part of the TUF series, the motherboard incorporates ASUS TUF PROTECTION features, including DIGI+ VRM, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. These features enhance the motherboard's durability and protection against power-related issues and other potential damages.
