| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
|
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors Choose the chassis with an HD audio module in the front panel to support 8-channel audio output. |
|
| Expansion Slots | ||
| PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
|
| M.2 Socket | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| MEMORY SPECIFICATIONS | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Memory | ||
| Slots | 2 x DIMM | |
| Supported Memory | 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.) / 2666/2400/2133 MHz Un-buffered Memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.0b |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.0b | |

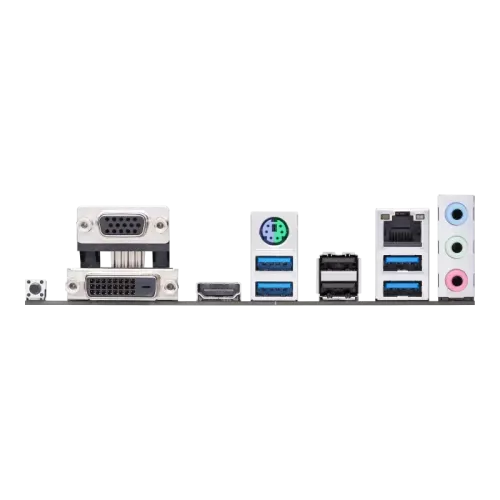

| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
|
| LAN | Realtek RTL8111H ASUS LANGuard |
|
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

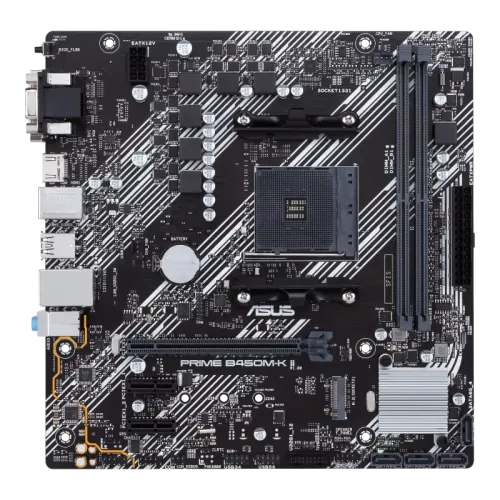

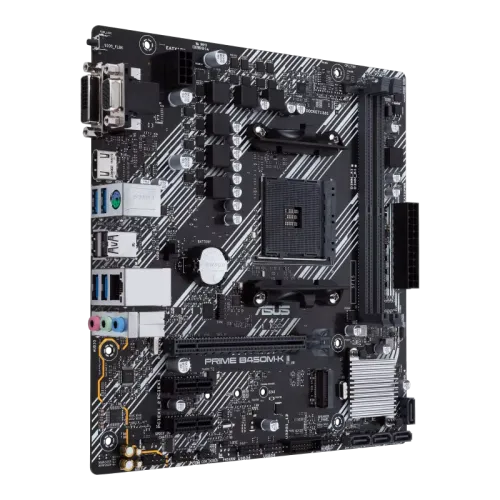

The Asus PRIME B450M-K II is a high-quality micro ATX motherboard designed for AMD AM4 processors. This particular version is tailored for the Chinese market and features an AMD B450 chipset, making it compatible with a wide range of AMD Ryzen processors, including 3rd, 2nd, and 1st Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, and Athlon with Radeon Vega Graphics processors. It offers excellent performance and reliability, making it a great choice for both casual users and gamers.One of the standout features of this motherboard is its audio capabilities. It comes equipped with the Realtek ALC887/897 7.1-Channel High Definition Audio CODEC, supporting jack-detection, multi-streaming, front panel jack-retasking, and up to 24-Bit/192kHz playback. The audio features are further enhanced by LED-illuminated design, audio shielding, dedicated audio PCB layers, and premium Japanese audio capacitors, delivering warm, natural, and immersive sound with exceptional clarity and fidelity. To fully utilize the 7.1-channel audio output, users are encouraged to choose a chassis with an HD audio module in the front panel.The motherboard supports Dual Channel DDR4 Memory Technology, allowing for faster and more efficient memory performance. It provides two DIMM slots with a maximum memory capacity of 64GB. The supported memory frequencies include. the motherboard features integrated graphics support for 2nd and 1st Gen AMD Ryzen processors with Radeon Vega Graphics and Athlon processors with Radeon Vega Graphics. It offers multiple display options, including 1 x D-Sub, 1 x DVI-D, and 1 x HDMI 2.0b, providing users with flexible connectivity to monitors and displays.For internal I/O ports, the motherboard offers various connectors, including CPU Fan, Chassis Fan, USB 3.2 Gen 1, USB 2.0, M.2 Socket 3, SPI TPM header, COM port(s) connector(s), SATA 6Gb/s, S/PDIF out header, 24-pin EATX Power, 8-pin ATX 12V Power, Front panel audio, System panel, Clear CMOS jumper, COM port header, and Speaker connector, offering users ample options for component connections and expandability.The Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard (China Version) comes with a 3-year warranty, ensuring the durability and quality of the product. Whether you are building a budget-friendly system or a compact gaming rig, this motherboard delivers the necessary features and performance to meet your computing needs.
