| Graphics Card | ||
| Type | GDDR7 | |
| Size | 12GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2542 MHz | |
| Memory Clock | 28 Gbps | |
| BUS Type | 192-bit | |
| Memory Interface | PCI Express 5.0 x16 | |
| CUDA Cores | 6144 | |
| Display Port | 3 x DisplayPort 2.1b with UHBR203 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
|
| HDCP Support | 2.3 | |
| Connectors | 1 x 12v-2x6 power input | |
| Recommended PSU | 650W | |
| Consumption | 250W | |
| Multi Display | Quad Display | |
| DirectX Support | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Others | Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later) Slot Size: 2 slot Cooling: IceStorm 3.0 Powered by the NVIDIA Blackwell architecture and DLSS 4 NVIDIA SFF-Ready Enthusiast GeForce Card Compact dual-fan form factor IceStorm 2.0 Cooling BladeLink Fans FREEZE Fan Stop Metal Backplate Power Safety Light All-new FireStorm Utility |
|
| Warranty | 3 Years | |
The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC is a high-performance, compact powerhouse designed for Small Form Factor (SFF) enthusiasts and gamers who need significant power in a smaller footprint. Featuring NVIDIA’s next-gen Blackwell architecture, this card combines efficiency with a sleek, dual-fan aesthetic.
Despite its small size, the Twin Edge OC doesn't hold back on performance. It is built to handle 1440p and 4K gaming with ease, utilizing the latest in AI-driven rendering.
Boost Clock: Factory overclocked to 2542 MHz (up from the base 2512 MHz).
Memory: 12GB GDDR7 on a 192-bit bus.
Bandwidth: A staggering 672 GB/s thanks to 28Gbps memory speeds.

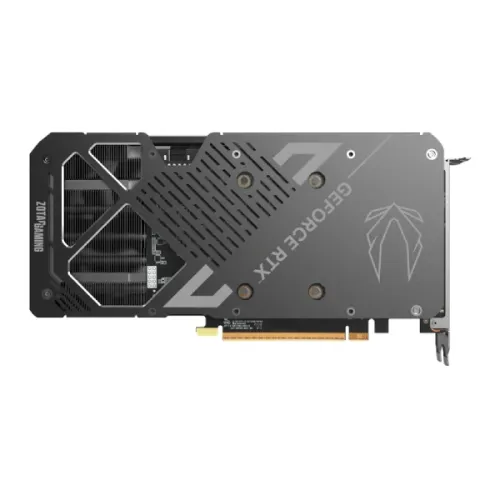

ZOTAC utilizes its IceStorm 2.0 cooling system to keep the card stable under load. It features dual 90mm BladeLink fans and a wrap-around metal backplate that enhances structural integrity while assisting in heat dissipation.
Dimensions: 241.5mm length and a slim 2-slot design (40.6mm thickness).
SFF-Ready: This card meets NVIDIA’s "SFF-Ready" guidelines, making it a perfect fit for Mini-ITX builds.
FREEZE Fan Stop: The fans turn off completely during idle or low-load tasks for silent operation.
The card is fully equipped for the future of display and interface technology:

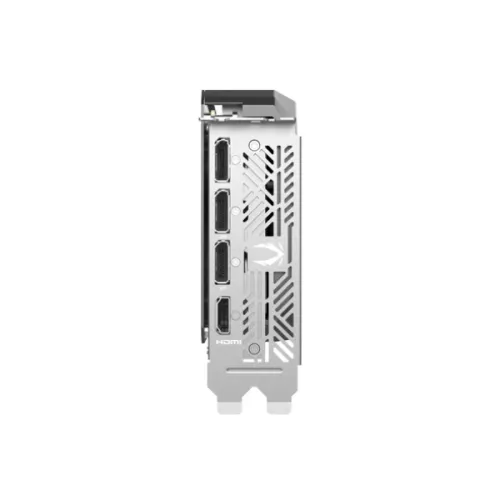

Outputs: 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting 8K at 60Hz or 4K at up to 480Hz.
Interface: PCIe 5.0 x16 for maximum data transfer speeds with modern CPUs.
Power: Requires a 650W PSU and a single 12V-2x6 power connector.
With support for DLSS 4 and 4th Gen Ray Tracing cores, the Twin Edge OC is a future-proof choice for those prioritizing space without sacrificing the elite features of the 50-series.
