| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 8GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC |
|
| Core Clock | 2527 MHz |
|
| Memory Clock | 28 Gbps |
|
| BUS Type | 128-bit |
|
| Memory Interface | PCI Express 5.0 x8 | |
| CUDA Cores | 3840 |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
|
| HDCP | 2.3 |
|
| Power Specifications | ||
| Connectors | 1 x 8-pin power input |
|
| Recommended PSU | 550W |
|
| Consumption | 145W |
|
| Display Option | ||
| Multi Display | Quad Display |
|
| Programming Interfaces | ||
| DirectX | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 |
|
| Physical Specifications | ||
| Dimensions | 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 8-Pin PCIe power connector SFF-Ready compact Graphics Card Metal Backplate BladeLink Fans Slot Size: 2 Supported OS: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
|
| Warranty | ||
| Warranty | 5 years warranty. (3-year standard warranty + 2-years will be extended after online registration by the customer within 28 days of Purchase). | |

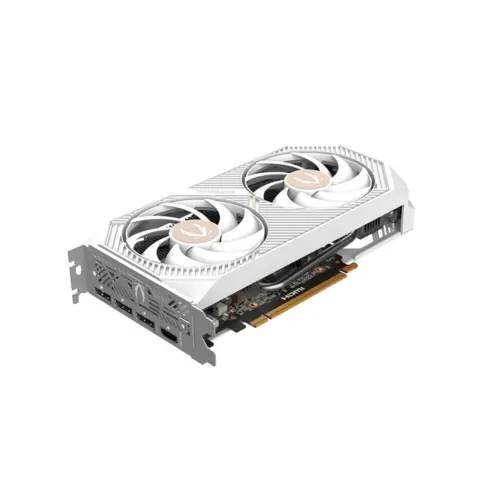

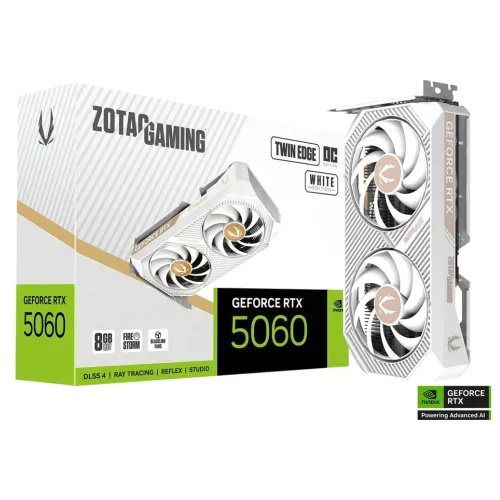

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition is a specialized, factory-overclocked graphics card that combines the high-speed efficiency of the NVIDIA Blackwell architecture with a pristine, all-white aesthetic. Ideal for gamers building a themed PC, it delivers elite 1080p and competitive 1440p performance while maintaining a compact, build-friendly form factor.
The White Edition is visually striking, featuring a matching white shroud, fans, and backplate. Beyond its looks, it is designed for maximum compatibility:
SFF-Ready: At just 220.5mm (8.7 inches) in length and a standard 2-slot thickness, it fits effortlessly into Mini-ITX and other small-form-factor enclosures.

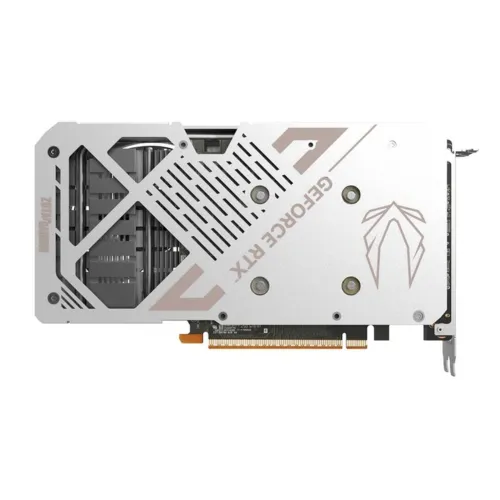

White Metal Backplate: Provides structural rigidity to prevent sagging while complementing the clean, snowy aesthetic of modern "all-white" gaming rigs.

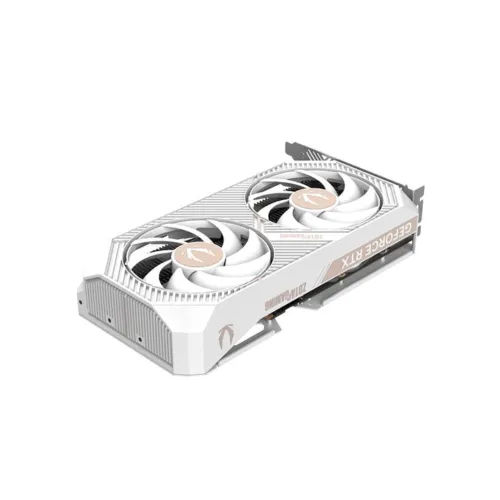

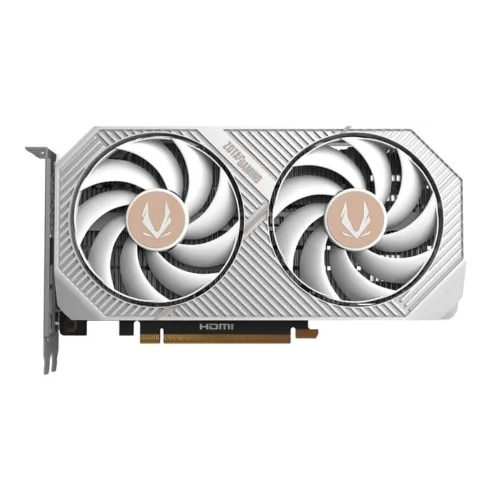

IceStorm 2.0 Cooling: Dual BladeLink fans utilize an interconnected design to improve airflow and heat dissipation, ensuring the factory overclock remains stable under load.
Equipped with next-gen GDDR7 memory, this card provides a massive bandwidth leap over its predecessors:
CUDA Cores: 3,840
Engine Boost Clock: Factory overclocked to 2527 MHz.
Memory: 8GB GDDR7 on a 128-bit bus.
Bandwidth: Operating at 28 Gbps, it delivers 448 GB/s of memory bandwidth—essential for handling high-resolution textures and AI workloads.
The card is remarkably power-efficient with a 145W TDP, requiring only a single 8-pin PCIe connector and a 550W PSU. It is fully future-proofed for next-gen displays:

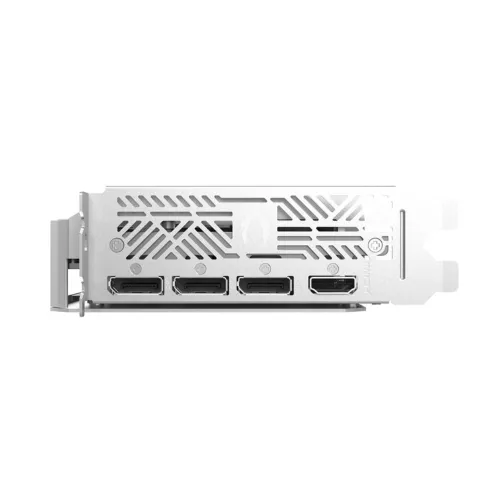

Connectivity: 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 8K at 165Hz (with DSC) or 4K at 480Hz.
AI Power: Supports DLSS 4 and 5th Gen Tensor Cores for transformative frame rates in titles like Cyberpunk 2077 and Starfield.
