| BASIC INFORMATION | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment |
|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Basic Information | ||
| Chipset | Intel® Z390 | |
| Audio | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| CPU | - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151), - Digi Power design, - 8 Power Phase design, - Supports Intel® Turbo Boost 2.0 Technology, - Supports Intel® K-Series unlocked CPUs, - Supports ASRock BCLK Full-range Overclocking |
|
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: - Supports DDR4 4266+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory. - Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics, - DirectX 12, - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1, - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers, - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports, - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Internal I/O Ports | 1 x COM Port Header, - 1 x SPI TPM Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers*, - 1 x Addressable LED Header**, - 1 x CPU Fan Connector (4-pin)***, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****, - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****, - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin), - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| USB Port | - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Ports (Intel® Z390) (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

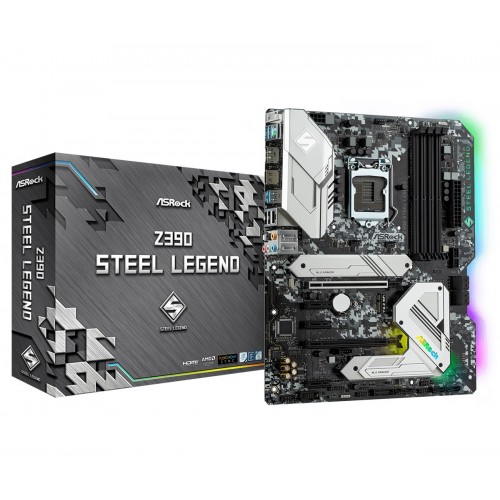

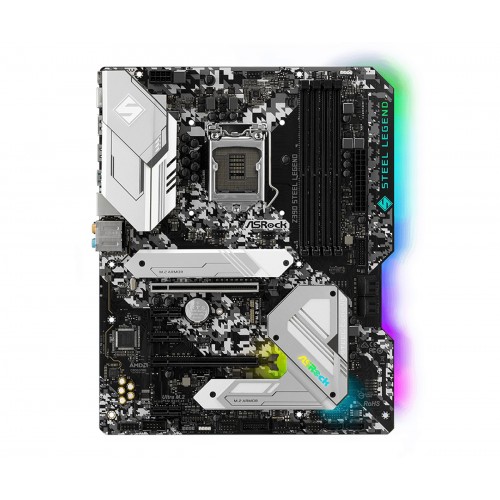

The ASRock Steel Legend Motherboard is built on the INTEL Z390 chipset, This ASRock Z390 Motherboard supporting 8th and 9th Gen generation Intel processors with an 1151 socket. ASRock Steel Legend motherboard has four memory slots for up to 128GB of dual-channel DDR4 RAM, ASRock X570 Motherboard can be overclocked to up to 4666 MHz. For storage, it's equipped with eight SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards and three PCIe 4.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet and Realtek ALC1220 7.1-channel HD audio. Users can install an optional M.2 E-key module for Wi-Fi and Bluetooth connectivity.
ASRock Steel Legend Motherboard represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the ASRock Steel Legend Motherboard series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. ASRock Z390 Motherboard that fulfills every task – with style! Click here for more motherboard..

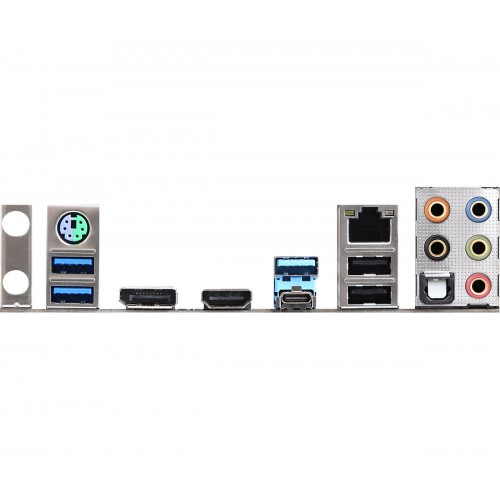

Dual USB 3.2 Gen2 (Type-A + Type-C)
This ASRock Z390 Motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
2 FULL COVERAGE M.2 ARMOR
Dual massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always working at its best.
PREMIUM 60A POWER CHOKE
ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
