| Video Memory Specifications | ||
| Card Size | Card Dimension : 24.1 X 13.1 X 4.1 Cm Card Dimension : 9.49 X 5.16 X 1.61 Inch | |
| Memory Size | 8 GB | |
| Memory Type | GDDR6 | |
| Resolution | AMD Virtual Super Resolution (VSR) | |
| Core Clock | Base Clock Up To: 2092 MHz Game Clock Up To: 2359 MHz Boost Clock Up To: 2589 MHz |
|
| Memory Bus (Bit) | 128 Bit | |
| Interface (PCI Express) | 3x DisplayPort: 1.4 With DSC 1x HDMI: 2.1 VRR And FRL |
|
| Memory Clock | 14 Gbps | |
| Stream Processors | 1792 | |
| Memory Bandwidth (GB/sec) | 48 Gb/S | |
| Power Specifications | ||
| Power Consumption | Minimum Power Supply Requirement: 650 Watt XFX Recommended Power Supply: XFX 750W PSU |
|
| Power Connector (Pin) | 1x PCI-E 8 Pin Connections | |
| Display Option | ||
| Multi Display | AMD Eyefinity Multi-Display Technology | |
| Ports | DisplayPort: 1.4 With DSC HDMI™: 2.1 VRR And FRL Output : Display Port 3 Output: HDMI 1 |
|
| Application Programming Interfaces | ||
| OpenGL | 4.5 | |
| DirectX | 12 | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |

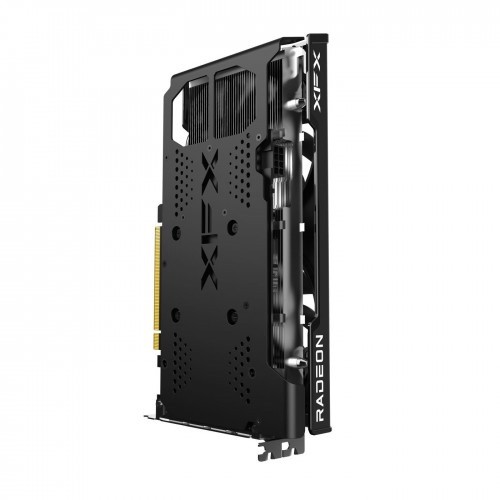

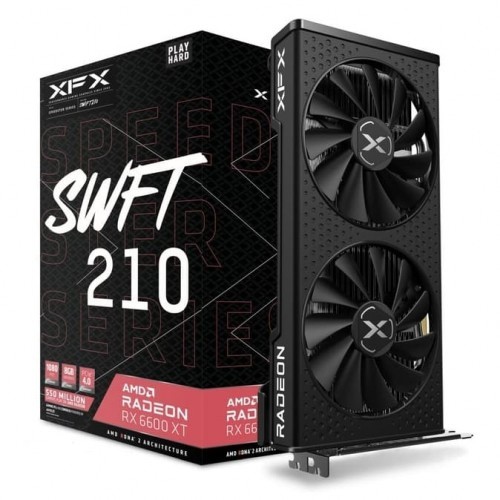

Based On The RDNA 2 Architecture And Designed To Handle The Graphical Demands Of Full HD 1080p Gaming, The XFX Force Radeon RX 6600 XT SPEEDSTER SWFT 210 CORE Gaming Graphics Card Provides An Immersive Gaming Experience With Your PC Games. The GPU Features 8GB Of GDDR6 VRAM And A 128-Bit Memory Interface, Offering Improved Performance And Power Efficiency Over The Previous RDNA-Based Generation.
The Front Panel Of The Card Features A Variety Of Outputs, Such As DisplayPort 1.4 And HDMI 2.1. HDMI 2.1 Supports Up To 48 Gb/S Bandwidth And A Range Of Higher Resolutions And Refresh Rates, Including 8K @ 60 Fps, 4K @ 120 Fps, And Even Up To 10K. The Radeon RX 6600 XT Supports APIs Such As DirectX 12 Ultimate And OpenGL. These APIs Can Take Advantage Of The GPU's 2048 Stream Processors To Accelerate Parallel Computing Tasks, Taking Some Of The Processing Load Off Of The CPU.

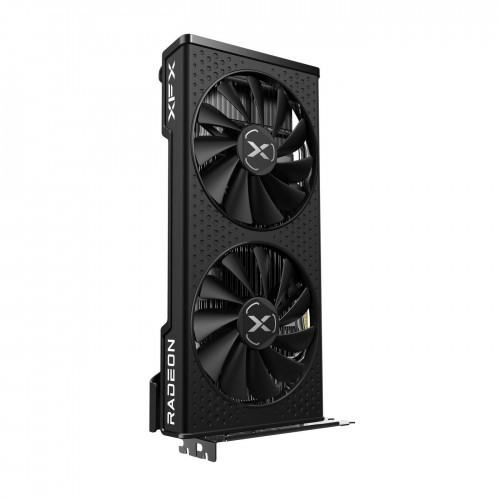

For Cooling, XFX Implemented A Dual Fan Cooler.
DirectX 12 Ultimate
DirectX12 Ultimate Gives Game Developers The Power To Deliver Immersive Visuals With Real-Time DirectX Raytracing (DXR), Variable Rate Shading (VRS), Mesh Shaders, And Sampler Feedback, Taking Games To The Next Level.
AMD FidelityFX
AMD FidelityFX Is An Open-Source Image-Quality Toolkit Comprising Of Seven Different Solutions Available For Game Developers To Implement Into Their Games That Are Optimized For AMD RDNA And RDNA 2 Architectures.
AMD Radeon Image Sharpening
Restores Clarity To In-Game Images That Have Been Softened By Other Post-Process Effects. RIS Combines With GPU Upscaling To Provide Sharp Visuals At Fluid Frame Rates On Very High-Resolution Displays, And Works Across DirectX 9, 12, And Vulkan Titles.
AMD FreeSync 2 Technology
Reduce Screen Tearing With AMD's FreeSync 2 Technology. FreeSync 2 Enables The Monitor To Dynamically Adjust Its Refresh Rate To The Frame Rate Being Output By The Graphics Card, Thereby Greatly Reducing Screen Tearing, Stuttering, And Other Artifacts.
Radeon Anti-Lag
Optimized For ESports, Radeon Anti-Lag Improves Competitiveness By Decreasing Input-To-Display Response Times By Up To 31 Percent, Delivering An Experience Similar To Higher Frame Rates.
AMD Radeon Boost
AMD Radeon Boost Dynamically Lowers Resolution Of The Entire Frame When Fast On-Screen Character Motion Is Detected Via User Input, Allowing For Higher FPS With Little Impact To Quality.
