| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek S1220A 8-Channel High Definition Audio CODEC, - Supports : Jack-detection, Front Panel Jack-retasking, - Front panel audio connector (AAFP), Audio Feature : - Optical S/PDIF out port(s) at back panel, - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals, - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, - Unique de-pop circuit: Reduces start-up popping noise to audio outputs, - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality |
|
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors | |
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture, Slots: 4 x DIMM DDR4, Supported Memory: 3rd Gen AMD Ryzen Processors, 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors, 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666(O.C.)/ 2400/ 2133 MHz Un-buffered Memory, Maximum Memory: 128 GB |
|
| Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280(PCIE 4.0 x2) storage devices support, 1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage, 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors VGA output support : HDMI port Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz | |
| LAN | Realtek RTL8117, Intel I211-AT, ASUS Turbo LAN Utility, ASUS LAN Guard |
|
| Internal I/O Ports | 1 x PCH_FAN, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only), 1 x COM port(s) connector(s), 4 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x CPU OPT Fan connector(s) (1 x 4 -pin), 3 x Chassis Fan connector(s) (3 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s), 1 x Clear CMOS jumper(s), 1 x U.2 Connector (support U.2 NVMe device), 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|

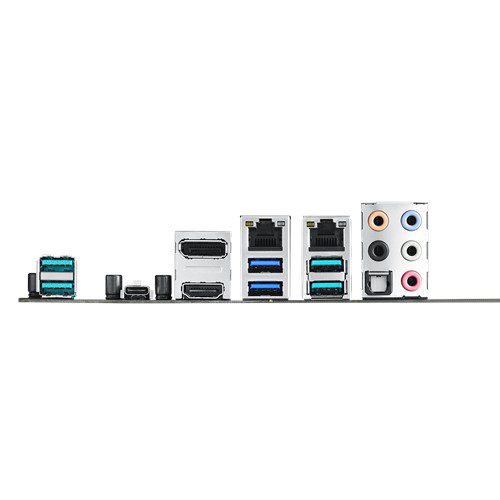

| USB Port | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 3 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A, 1 at mid-board), AMD X570 chipset : 5 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, Type-A, 1 x Type-C), AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years Limited | |
GET INCREDIBLE POWER WITH THE NEW RYZEN CPUS

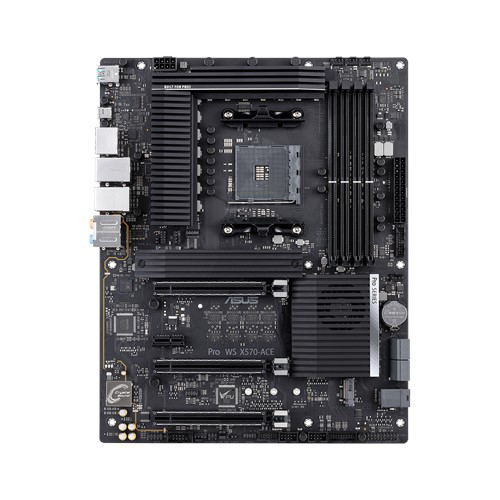

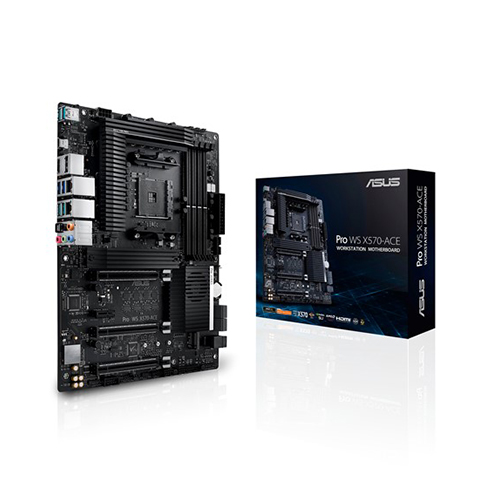

Providing the core fundamentals needed for a new 3rd Generation Ryzen workstation build, the ASUS Pro WS X570-ACE motherboard caters to users with serious pursuits of demanding tasks such as video editing, photo manipulation and other various content creation, something to put the Ryzen processors to more productive use. The ASUS Pro WS X570-ACE includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with increased number of cores and bandwidth, ready for action with stable power and intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity especially when paired with the brand new Ryzen CPUs.
MULTI-GPU SUPPORT
Fully loaded takes on new meaning when you have up to 24 PCI Express lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.
PROCOOL II POWER CONNECTOR
The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.
ACTIVE PCH HEATSINK
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.
USER FRIENDLY DESIGN
The Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.
