| UPS FOR WIFI ROUTER | ||
| Model | SK- 616 | |
| Input voltage | 100v~300v AC | |
| Output Voltage (Optional) | 5V/9V/12V/15V/24V DC | |
| Output Power | 24W | |
| Battery Type | Lithium battery | |
| QTY. & Capacity Of Battery | 2600mAH*6 | |
| Rated charge current | 1A | |
| System voltage | 11.1V | |
| Rated discharge current | 5V/9V/12V, 2A;15v/24V, 1A | |
| Over pressure protection | 12.6V | |
| Under voltage | 11.4V | |
| Protection circuit | Overcharge protection(system protection) Overload and short circuit protection(battery protection) | |
| Operating temperature | -10℃+55℃ | |
| Net Weight(kg) | 0.455 | |
| Unit Dimension(mm) | 159*112*32 | |

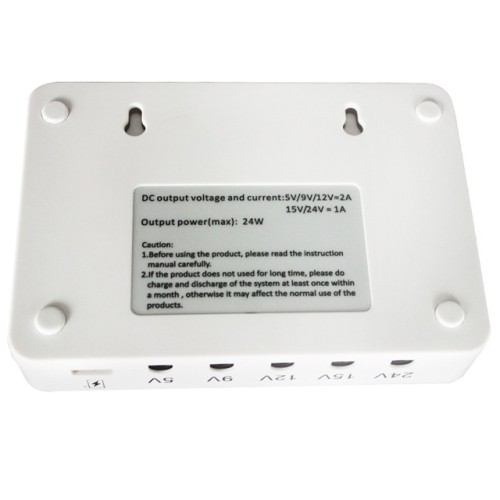

The SKE SK616 Mini DC UPS is a compact and portable power backup solution designed specifically for devices like Wi-Fi routers, ONU (Optical Network Unit), IP cameras, and CC cameras. With its high-capacity lithium battery and multiple output options, it aims to provide uninterrupted power supply to your critical devices.Featuring a sturdy and compact design, the SK616 Mini DC UPS is convenient to use and carry. It serves as a reliable backup power source when your primary power supply is interrupted or unavailable.The unit supports a wide input voltage range of 100v~300v AC, making it suitable for various power supply environments. It converts the input voltage to selectable output voltages, including 5V, 9V, 12V, 15V, or 24V DC, depending on your device's requirements.With an output power of 24W, the SK616 can effectively support and power devices such as Wi-Fi routers, ONU, IP cameras, and CC cameras. It ensures stable and reliable power delivery to keep your essential devices operational during power outages or fluctuations.The SK616 Mini DC UPS utilizes a lithium battery, providing a total capacity of 15600mAh. The battery consists of six 2600mAh cells, offering sufficient energy to keep your devices running for extended periods. It has a system voltage of 11.1V and a rated charge current of 1A.The unit features a rated discharge current of 5V/9V/12V at 2A and 15V/24V at 1A. This allows for efficient power delivery to your devices, ensuring they receive the necessary voltage and current to operate optimally.To protect the battery and connected devices, the SK616 Mini DC UPS incorporates various safety features. These include overcharge protection for the battery, overload and short circuit protection for the system, and protection against overvoltage and undervoltage.
