| Video Memory Specifications | ||
| Memory Size | 16GB | |
| Memory Type | GDDR6 | |
| Resolution | HDMI: 7680×4320 DisplayPort1.4: 7680×4320 |
|
| Core Clock | Boost Clock: Up to 2170 MHz Game Clock: Up to 1950 MHz |
|
| Memory Bus (Bit) | 256 bit | |
| INTERFACE | PCIe 4.0 | |
| Memory Clock | 16 Gbps Effective | |
| Stream Processors | 3840 | |
| Interface | ||
| Display Port | 3x DisplayPort (7680×4320) |
|
| HDMI | 1x HDMI (7680×4320) | |
| Power Specifications | ||
| Power Consumption | 280W |
|
| Power Connector (Pin) | 2 x 8-pin Power Connector |
|
| Recommended Power Supply | 650 Watt | |
| Display Option | ||
| Multi Display | Quad Display |
|
| General | ||
| Graphics Chipset | Sapphire Pulse RX 6800 OC Gaming | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 | |
| Physical Specifications | ||
| Dimensions | 303(L)X 127.3(W)X 53.8 (H)mm | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 2 Years |
|

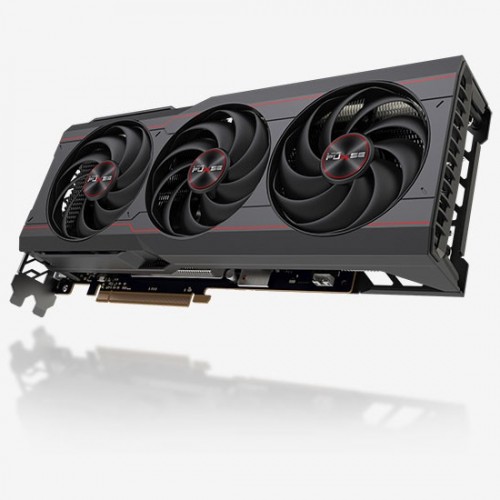

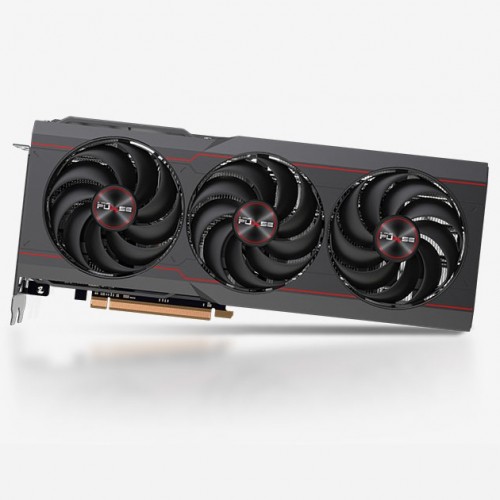

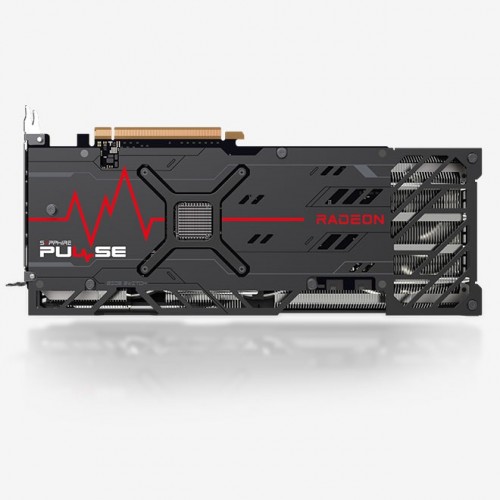

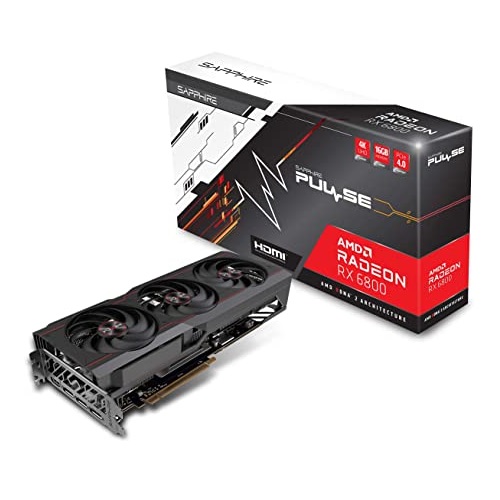

The SAPPHIRE PULSE AMD Radeon RX 6800 yields robust 4K gaming performance at the optimal budget. Push your limits with a high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD’s visionary RDNA2 architecture. SAPPHIRE’s renowned components like the dual ball bearing fans, fuse protection, and dual BIOS ensure quality and reliability. The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost build a mix of incredible performance and stability with the PULSE AMD Radeon RX 6800. Take your gaming to the next level with the PULSE AMD Radeon RX 6800 as the beating heart of your PC!
