| BASIC Information | ||
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required | |
| Basic Information | ||
| Others | Game Index: 1080P Ultimate | |
| BASIC INFORMATION | ||
| Cache | Infinity Cache: 32MB | |
| Display | Maximum 4 Displays | |
| Special Feature | Fuse Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Optimized Composite Heatpipe TriXX Supported TriXX Boost |
|
| BIOS | BIOS Support: UEFI | |
| Cooler Type | 2 Fans | |
| Basic Information | ||
| Resolution | HDMI™: 7680×4320 DisplayPort 2.1: 7680×4320 |
|
| Key Features | ||
| Interface | PCI-Express 4.0 x8 | |
| Features | AMD Features: AMD RDNA™ 3 Architecture DirectX® 12 Ultimate Support AMD Smart Access Memory AMD Infinity Cache™ PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 2.1 with DSC HDMI™ Support Video Streaming up to 8K AMD Radeon™ VR Ready Premium AMD Radeon™ Image Sharpening AMD Radeon™ Anti-Lag AMD Software: Adrenalin Edition™ Application Game Driver Optimizations |
|
| Form Factor | 2.2 slot, ATX Dimension: 250(L)X 129.25(W)X 44.56 (H)mm |
|
| Main Spec | ||
| System Requirements | Minimum 600 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
|
| Video Memory Specifications | ||
| Memory Size | 16GB/128 bit GDDR6 | |
| GPU Core | AMD Radeon™ RX 7600 XT Graphics Card AMD RDNA™ 3 Architecture |
|
| Memory Clock | 18 Gbps Effective | |
| Stream Processors | 2048 | |
| Output | ||
| Output | 2x HDMI 2x DisplayPort |
|
| Gaming Features | ||
| Acceleration | Ray Accelerators: 32 AI Accelerator: 64 |
|
| Power Specifications | ||
| Power Consumption | 192W Total Board Power | |
| General | ||
| Engine Clock | Boost Clock: Up to 2810 MHz Game Clock: Up to 2539 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
|
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |

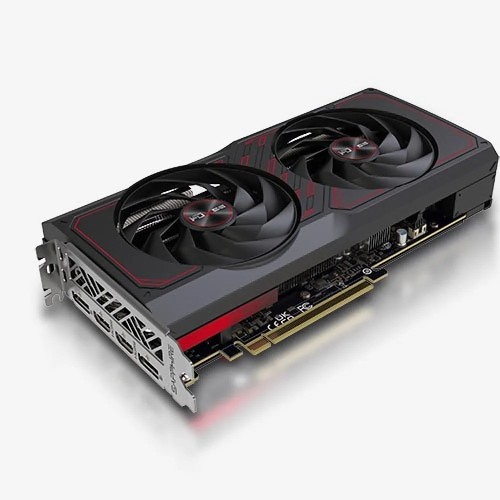

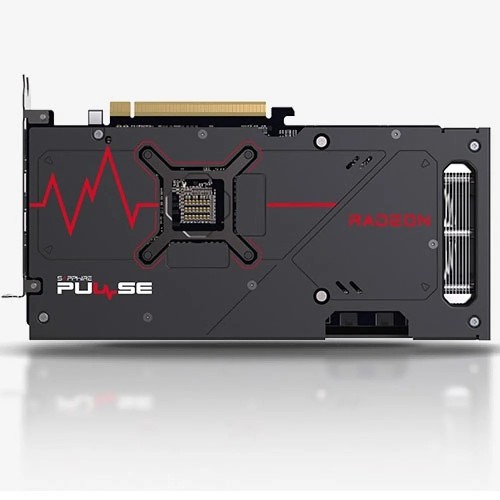

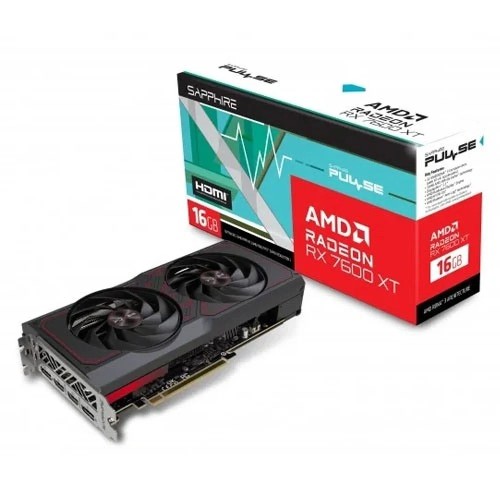

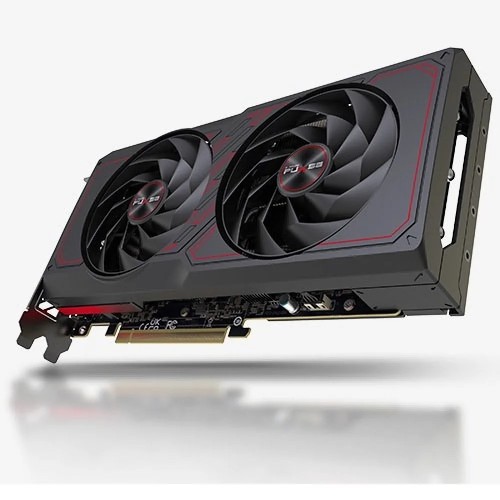

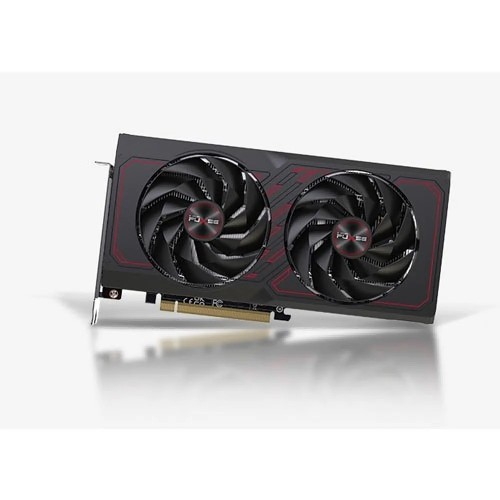

SAPPHIRE PULSE Radeon RX 7600 XT 16GB GDDR6 Graphics Card
The SAPPHIRE PULSE Radeon RX 7600 XT is a high-performance graphics card featuring 16GB of GDDR6 memory, designed to deliver exceptional gaming and multimedia experiences.
Key Specifications:
Graphics Processor: AMD Radeon™ RX 7600 XT with RDNA™ 3 architecture
Stream Processors: 2,048
Ray Accelerators: 32
Engine Clock Speeds:
Boost Clock: Up to 2,810 MHz
Game Clock: Up to 2,539 MHz
Memory:
Capacity: 16GB GDDR6
Memory Bus: 128-bit
Effective Memory Speed: 18 Gbps
Display Outputs:
2 x HDMI 2.1
2 x DisplayPort 1.4
Bus Interface: PCIe 4.0 x8
Performance and Features:
The RX 7600 XT is built on AMD's RDNA™ 3 architecture, offering enhanced performance and efficiency. With 2,048 stream processors and 32 ray accelerators, it provides robust support for real-time ray tracing and high-quality graphics rendering. The substantial 16GB GDDR6 memory ensures smooth performance in memory-intensive applications and high-resolution gaming scenarios.
