| Video Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 |
|
| Resolution | HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
|
| Core Clock | Boost Clock: Up to 2010MHz Game Clock: Up to 1905 MHz Base Clock: 1770 MHz |
|
| Memory Bus (Bit) | 256 bit | |
| INTERFACE | PCI-Express 4.0 | |
| Memory Clock | 14 Gbps Effective | |
| Stream Processors | 2560 | |
| Interface | ||
| Display Port | 2x DisplayPort (5120×2880@60Hz) | |
| HDMI | 2x HDMI (4096×2160@60Hz) | |
| Power Specifications | ||
| Power Consumption | 265W | |
| Power Connector (Pin) | 2 x 8-pin Power Connector | |
| Recommended Power Supply | Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply) |
|
| Display Option | ||
| Multi Display | 4 | |
| General | ||
| Graphics Chipset | NITRO Plus RX 5700 XT | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 | |
| Physical Specifications | ||
| Dimensions | Form Factor: 2.5 slot, ATX Dimension: 306x 135 x 49 (mm) |
|
| Others | Sapphire Features: TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design Optional Fan Glow ARGB support NITRO Glow Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Tri-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 2 Years Warranty |
|

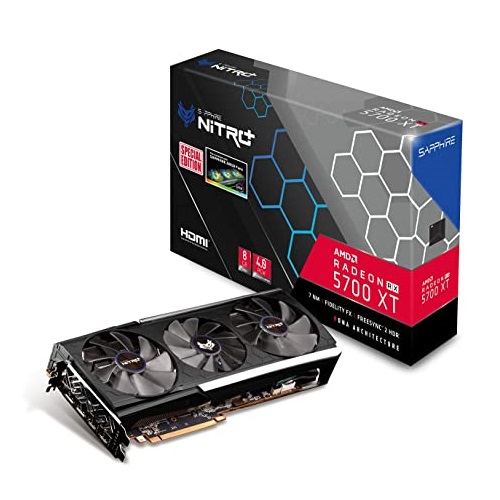

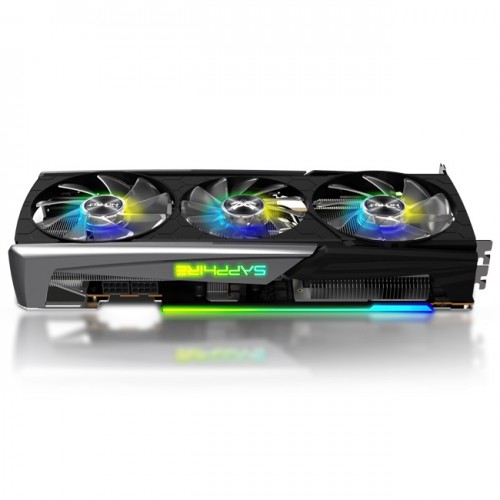

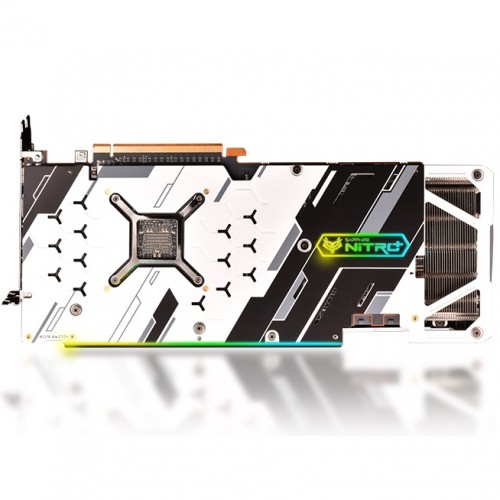

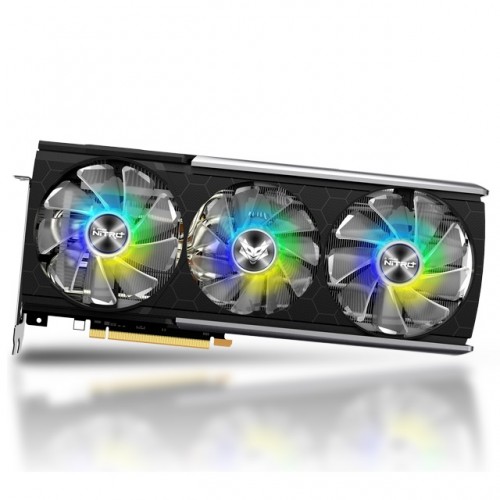

The SAPPHIRE NITRO+ RX 5700 XT Special Edition graphics card delivers a maximized 4K gaming experience for the PC Gamer alongside the incredible beauty of three ARGB fans addressable to deliver 16.8 million-colour RGB illumination. Packed with SAPPHIRE’s renowned high-end quality components, including our award-winning Tri-X cooling solution, and Shroud enhancements to strengthen the PCB; the NITRO + RX 5700 XT Special Edition delivers the stunning performance boost of approximately 6% with an overclocked memory of 14.4Gbps, and robust stability every gamer demands. Features including Intelligent Fan Control and advanced Tri-X Fan Cooling create supreme heat dissipation, minimum noise, and maximum reliability. AMP up the aesthetic design of your rig with elegant styling and complete ARGB Lighting which can be customized with SAPPHIRE’s TriXX software. Boost the performance of your favorite games to get a winning advantage over your friends with the new TriXX Boost feature. Get NITRO Charged with the SAPPHIRE NITRO+ RX 5700 XT Special Edition! Explore all the incredible features that come with the SAPPHIRE NITRO+ RX 5700 XT Special Edition Graphics Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you. Starting from the RX5700 Navi series, switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes. An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections. Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system. Heat is dissipated by a trio of efficient fans – two, slightly bigger, on the sides, running anticlockwise, and a smaller middle fan running clockwise to ensure optimal airflow.
