| Video Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2607 MHz Game Clock: Up to 2428 MHz |
|
| Memory Bus (Bit) | 128-Bit | |
| INTERFACE | PCI-Express 4.0 | |
| Memory Clock | 16 Gbps Effective | |
| Stream Processors | 2048 | |
| Interface | ||
| Display Port | 3x DisplayPort 1.4 | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Power Consumption | 180W (Board Power) | |
| Power Connector (Pin) | 1 x 8-pin Power Connector | |
| Recommended Power Supply | Minimum 500 Watt Power Supply | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 240(L)X 119.25(W)X 44.82 (H)mm | |
| Others | Form Factor: 2.2 slot, ATX | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Years Warranty | |

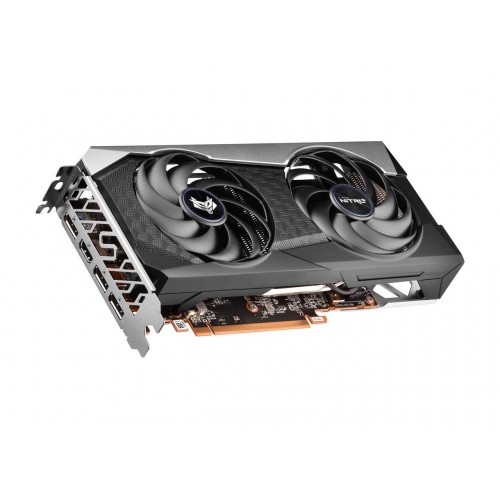

The SAPPHIRE NITRO+ AMD Radeon RX 6600 XT Graphics Card featured with ultimate 1080P for gamer seeking to harness breakthrough graphics with vivid visuals and excellent quality cooling solutions. Rigged with superior components to handle AAA game scenarios. This graphics cartd featured with Boost Clock: Up to 2607 MHz & Game Clock: Up to 2428 MHz. The Boost Clock is the maximum frequency achievable on the GPU running bursty workload. It achievability, frequency, and sustainabilty will vary based on several factors, including but not limited in thermal conditions and variation in application and workloads. The Game Clock feature in graphics card is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary based on the work. The new NITRO+ AMD Radeon RX 6600 XT Graphics card is a crucial component for an incredible gaming experience. The aesthetic design will be a beautiful integration into any PC build.
With this graphics card, It can Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.
The SAPPHIRE NITRO+ AMD Radeon RX 6600 XT comes with hybrid fan design, that combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.
In this graphics card, the WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
In this graphics card, the AMD features comes with AMD RDNA 2 Gaming Architecture, DirectX 12 Ultimate, Smart Access Memory, Infinity Cache, 7nm GPU, PCI Express 4.0 Support, AMD FreeSync Technology, DisplayPort 1.4 with DSC , HDMI, Video Streaming up to 8K, Radeon VR Ready Premium , AMD FidelityFX, Radeon Image Sharpening, Radeon Anti-Lag, Radeon Software, Game Driver Optimizations.
This exclusive SAPPHIRE NITRO+ AMD Radeon RX 6600 XT Graphics Card supports with Linux, Windows 7, Windows 10, and Windows 8.1. 64-bit operating system. It has 02 years of warranty.
