| Basic Information | ||
| Others | 2670 MHz game Clock 12GB/192bit GDDR6, 19Gbps Ray Tracing Units : 20 Dual Fan Advanced Cooling |
|
| Video Memory Specifications | ||
| Core Clock | 2670 MHz | |
| Memory Clock | 2375 MHz 19 Gbps effective |
|
| Interface | ||
| Display Port | 3x DisplayPort 2.1 | |
| HDMI | 1x HDMI 2.1a | |
| General | ||
| Size | 12 GB | |
| Type | GDDR6 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specification | ||
| Recommended PSU | 450 W | |

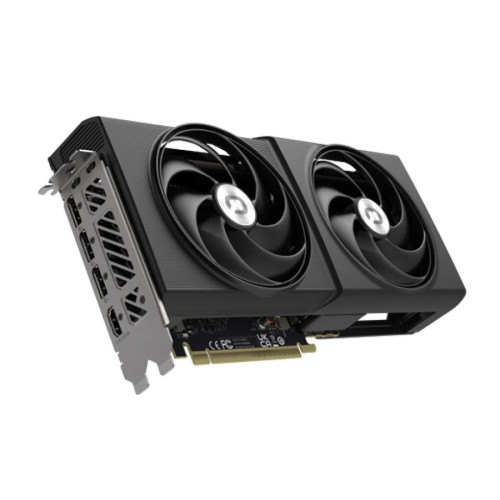

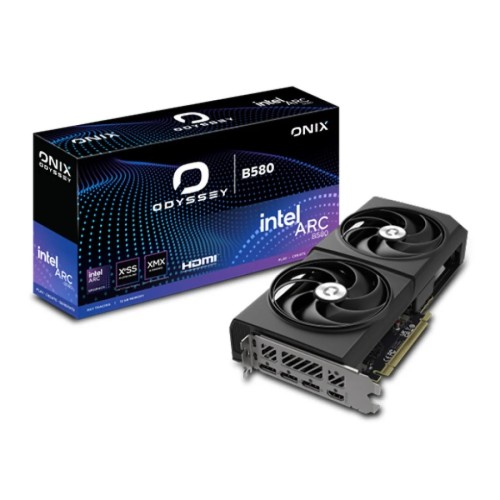

ONIX ODYSSEY Intel Arc B580 Black GDDR6 12GB Graphics Card
The ONIX ODYSSEY Intel® Arc™ B580 is a high-performance graphics card built for gamers and content creators who demand power, efficiency, and style. Featuring Intel’s latest Xe2 graphics architecture, this card delivers exceptional performance, smooth gameplay, and enhanced ray tracing capabilities for immersive visual experiences.
Key Specifications:
GPU Architecture: Intel Arc Xe2
Memory: 12GB GDDR6, 192-bit, 19 Gbps
Clock Speed: Up to 2670 MHz
Compute Units: 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines
Power Consumption: 193W

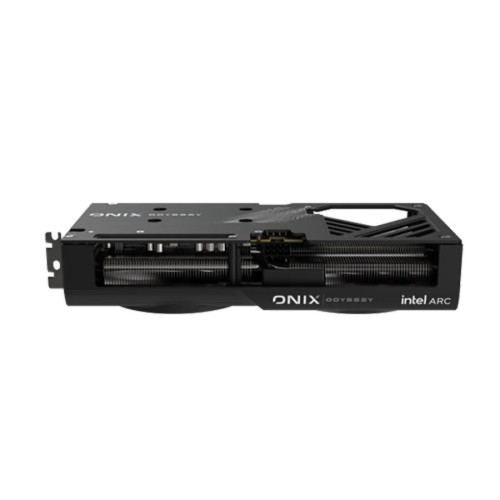

Cooling System: Dual ball-bearing fans for improved longevity and efficient thermal management
Noise Levels: Below 30 dBA under heavy loads
Design & Build:
The ONIX ODYSSEY B580 features a sleek matte-black finish with a premium aluminum backplate, ensuring both durability and effective heat dissipation. The card’s robust build is complemented by protective fuses on power inputs, providing extra security against power surges and short circuits.
Connectivity & Features:
Ports:
1x HDMI 2.1
3x DisplayPort 2.1
Resolution Support: Up to 8K @ 120Hz HDR (compressed)
Power Connector: Single 8-pin power input
Compatibility:
Requires Intel 10th Gen Core or newer / AMD Ryzen 3000 Series or newer
Resizable BAR or Smart Access Memory recommended
Minimum 8GB system RAM (16GB recommended)
Form Factor: 2.2-slot ATX, 260 x 130 x 52 mm
