| Basic Information | ||
| Others | Game Clock: Up to 2740 MHz 12GB/192bit GDDR6, 19Gbps Pure White with ARGB Light Ray Tracing Units: 20 Aluminum Backplate |
|
| Video Memory Specifications | ||
| Core Clock | 2670 MHz | |
| BUS Type | PCIe 4.0 x8 192 bit | |
| Memory Clock | 2375 MHz 19 Gbps effective |
|
| Interface | ||
| Display Port | 3x DisplayPort 2.1 | |
| HDMI | 1x HDMI 2.1a | |
| Connectivity | ||
| Connectors | 1x 8-pin | |
| Display Option | ||
| Multi Display | Yes | |
| General | ||
| Size | 12 GB | |
| Type | GDDD6, 19Gbps | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate (12_2) | |
| Physical Specification | ||
| Recommended PSU | 450 W | |

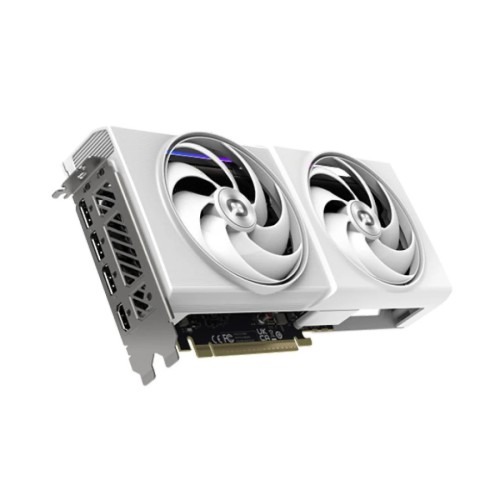

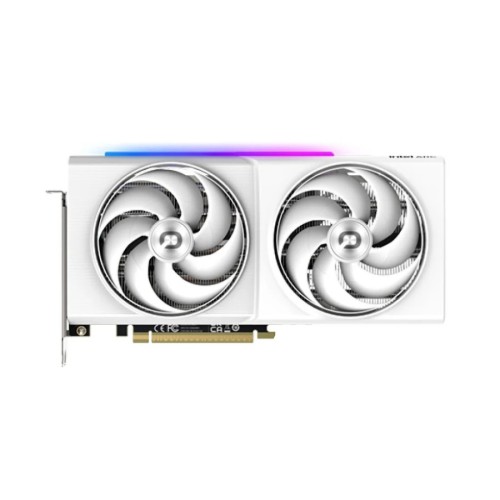

ONIX LUMI Intel Arc B580 White GDDR6 OC 12GB ARGB Gaming Graphics Card
The ONIX LUMI Intel® Arc™ B580 GDDR6 OC 12GB is a high-performance graphics card designed for gamers and creators seeking both aesthetic appeal and robust functionality. Building upon Intel's Xe2 Graphics Core Architecture, this card offers advanced features and a distinctive design to enhance your computing experience.
Key Specifications:
GPU Architecture: Intel® Arc™ B580 (Xe2 Graphics Core Architecture)
Game Clock Speed: Up to 2740 MHz
Memory: 12GB GDDR6, 192-bit, 19 Gbps
Compute Units: 20 Xe Cores
Ray Tracing Units: 20
AI Acceleration: 160 Intel XMX Engines
Power Consumption: 203W
Design and Aesthetics:
The LUMI B580 features a sleek pure white design complemented by a durable aluminum backplate, catering to users who appreciate minimalist and elegant aesthetics. The card integrates dynamic ARGB lighting, with a sophisticated ARGB logo on the shroud capable of displaying up to 16.8 million colors. Users can personalize lighting effects through customizable ARGB software, allowing adjustments to colors, brightness, and patterns, or synchronization with other ARGB components.
Cooling and Acoustic Performance:
Engineered for silent and long-lasting performance, the LUMI B580 employs dual ball-bearing fans that ensure reliable cooling while maintaining noise levels below 30 dBA, even under heavy loads. This design ensures that users can focus on their tasks or gaming without distractions from fan noise.
