| Case Features | ||
| Case Type | Mid Tower | |
| Drive Bays | 2.5”: 7 3.5”: 2+2 | |
| Expansion Slots | 7 | |
| Fan Support | Front: 3x 120/ 2x 140mm Top: 3x 120/2x 140mm Rear: 1x 120/1x 140mm | |
| Front Panel | 1x USB 3.1 Gen 2 Type-C 2x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack | |
| I/O Port | 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header | |
| Motherboard Support | Mini-ITX, MicroATX, ATX and EATX (Up to 272mm) | |
| Others | Maximum CPU Cooler Height: Up to 185mm Maximum Graphics Card Length: Up to 413mm | |
| Pre- Installed Fans | Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included) Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included) | |
| Radiator Support | Front: 2x 140 or 3x 120mm with Push/Pull Top: 2x 140 or 3x 120 Rear: 1x 120 | |

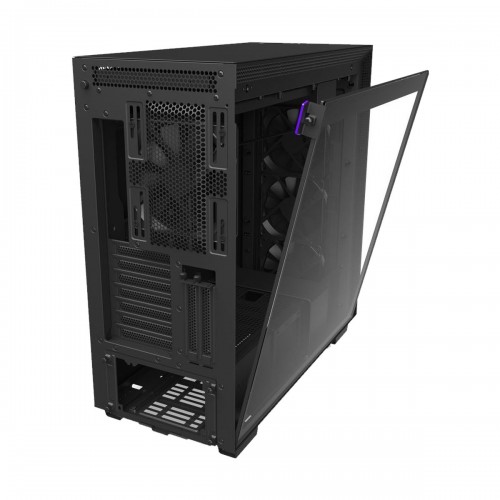

| Tempered Glass Panel | Yes | |
| Physical Specification | ||
| Dimensions | 230mm x 516mm x 494mm | |
| Weight | 12.1 kg | |
| Physical Specifications | ||
| Color | Black | |
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew. With a USB 3.1 Gen 2-compatible USB-C connector on the front panel, it’s easier than ever to connect the newest smartphones, high-speed external storage, or the latest peripherals to your PC. The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build. Cable management can take more time than assembling a system. Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive. Four Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a reversible, removeable, top-mounted bracket designed for radiators up to 360mm simplifies the installation of either closed-loop or custom-loop water cooling.
Get specific details about this product from customers who own it.
