| Video Memory Specifications | ||
| Memory Size | 12GB | |
| Memory Type | GDDR6X | |
| Resolution | 7680x4320 | |
| Core Clock | Boost: 1770 MHz | |
| Memory Bus (Bit) | 384-bit | |
| CUDA Cores (Nvidia) | 10240 Units | |
| INTERFACE | PCI Express 4.0 | |
| Memory Bandwidth (GB/sec) | 19Gbps | |
| Power Specifications | ||
| Power Consumption | 350W | |
| Power Connector (Pin) | 3 x 8-pin | |
| Recommended Power Supply | 750W | |
| Display Option | ||
| Multi Display | Up to 4 Displays | |
| Ports | DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K 120Hz as specified in HDMI 2.1) | |
| General | ||
| Graphics Chipset | NVIDIA GeForce RTX 3080 Ti | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL 4.6 | |
| DirectX | 12 API | |
| Physical Specifications | ||
| Dimensions | 324 x 140 x 56mm | |
| WARRANTY INFORMATION | ||
| Warranty | 2 Year Warranty | |

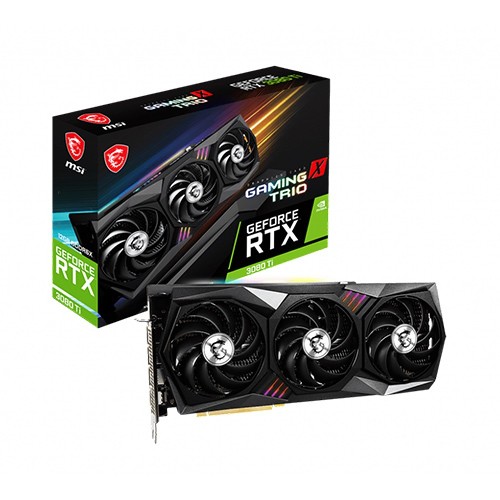

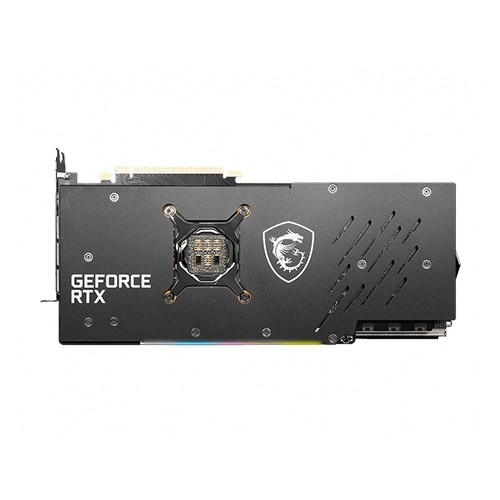

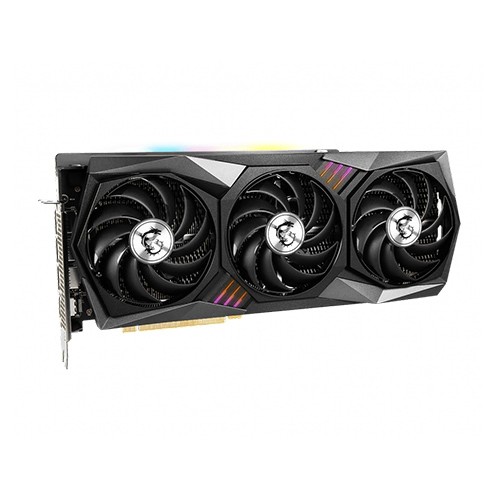

Based on the Ampere design and designed to handle the graphical demands of 4K recreation and 1440p at high frame rates, the MSI GeForce RTX 3080 Ti recreation X TRIO Graphics Card brings the ability of time ray tracing and AI to your computer games. The Ampere architecture options second information RT Cores and third information Tensor Cores. The MSI GeForce RTX 3080 Ti Gaming X Trio features 12GB of GDDR6X VRAM and a 384-bit memory interface, improving performance and power potency over the previous Turing-based generation. The front panel of the MSI GeForce RTX 3080 Ti recreation X TRIO Graphics Card features a range of outputs, love DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to forty-eight Gb/s information measure and a spread of upper resolutions and refresh rates, 8K 60fps, 4K 120fps, and even up to 10K. The RTX 3080 Ti isn't almost about high-resolution gaming. Computationally intensive programs will utilize the GPU' 10240 cores to accelerate tasks exploitation CUDA and alternative APIs.
For cooling, MSI enforced the TRI FROZR two Thermal Design. The triple TORX 4.0 fans work to deliver focus air pressure. The precision-crafted heat pipes guarantee easy lay contact to the MSI GeForce RTX 3080 Ti Gaming X Trio and dissipate heat equally throughout the heatsink length. The flow of air Control guides the air to precisely wherever it must be for cooling. In addition, mystic lightweight provides you complete management of RGB lighting for MSI devices and compatible RGB products.
NVIDIA Ampere is that the second generation RTX architecture.MSI GeForce RTX 3080 Ti Gaming X Trio options up to double the FP32 turnout, 2nd information RT Core throughput, and third information Tensor Core throughput of the previous generation. It conjointly features a Samsung 8N custom method and utilizes GDDR6X VRAM.
The NVIDIA GeForce RTX platform allows real-time ray tracing of objects and environments with physically correct shadows, reflections, refractions, Associate in Nursingd global illumination.
NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that reinforces frame rates whereas still providing the best image quality exploitation of the dedicated AI process Tensor Cores on the GeForce RTX platform. MSI GeForce RTX 3080 Ti recreation X TRIO Graphics Card offers you the performance you wish to maximize ray tracing settings and resolutions for an immersive visual experience.
The MSI GeForce RTX 3080 Ti Gaming X Trio HDMI 2.1 interface provides exaggerated bandwidth, permitting one cable to output 8K HDR TVs for ultra-high-resolution gaming.
