| BASIC INFORMATION | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
|
| Chipset | INTEL Z790 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot |
|
| M.2 Socket | 4x M.2 slots | |
| Memory | ||
| Memory Type | 192GB | |
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
| Graphics | ||
| Graphics | 1x HDMI |
|

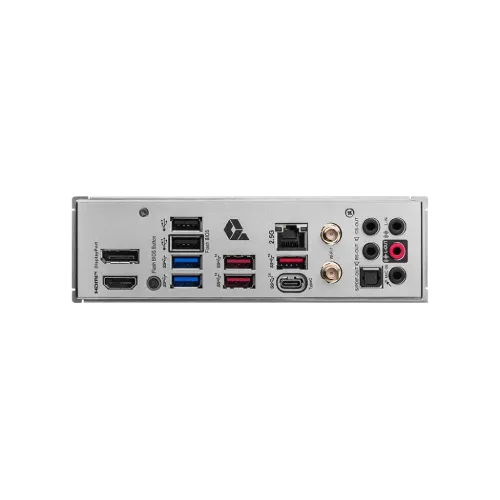

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port | 1x DisplayPort 1.4 | |
| LAN | Intel 2.5Gbps LAN | |
| Wireless | Wi-Fi 7 |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Supported Storage | 4x M.2 |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| USB Port | 2x USB 2.0 (Rear) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

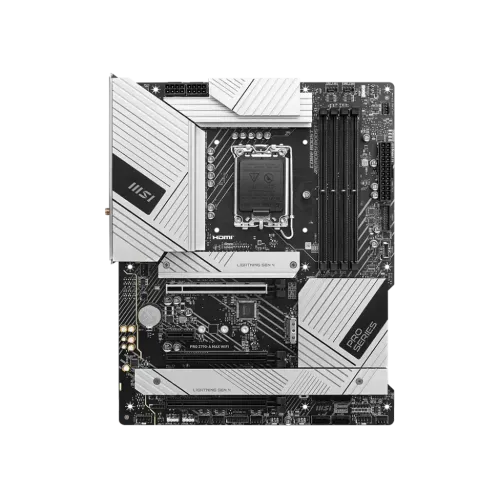

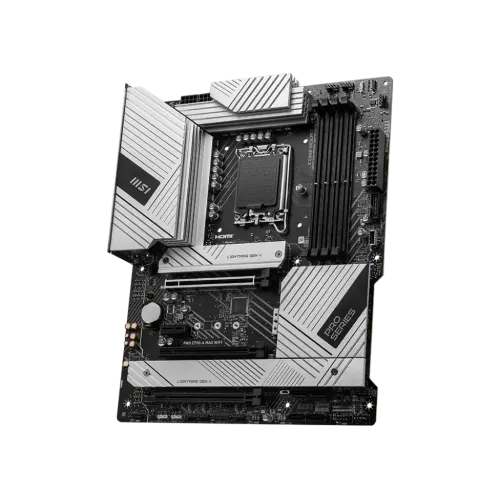

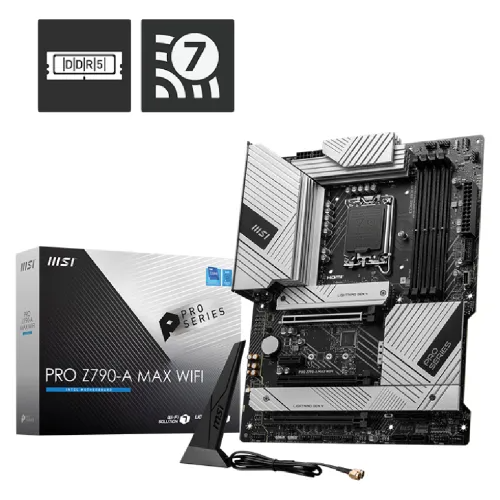

The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard designed to meet current computer and gaming demands. It is designed to handle Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, and it makes use of the LGA 1700 socket for broad processor compatibility. Its compatibility for DDR5 memory, which operates at Dual Channel DDR5 speeds of 7800+MHz (when overclocked), ensures fast data access and better multitasking. The Motherboard delivers superior power delivery and efficiency because of its 16+1+1 digital power system, 80A smart power stages, twin 8-pin CPU power connections, Core Boost, and Memory Boost technologies. It also excels in thermal management with an extended heatsink, MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr, all contributing to sustained high performance during extended gaming sessions. Durability and dependability are ensured by a high-quality 6-layer PCB composed of 2oz thicker copper and server-grade components. PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectors provide lightning-fast connection. Intel Turbo USB 3.2 Gen 2 provides robust and fast USB communication. The 2.5G LAN with Wi-Fi 7 Solution provides professional and multimedia users with enhanced networking capabilities, enabling safe, stable, and fast network connections. Finally, AUDIO BOOST 5 pampers your ears with studio-grade sound quality, giving an immersive gaming experience with remarkable audio clarity and fidelity. The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is an excellent choice for gamers and content makers seeking top-tier performance and connection on a single board.
