| Basic Information | ||
| Chipset | Intel Z690 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio | |
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold And Celeron® Processors Processor Socket LGA1700 | |
| Form Factor | ATX Form Factor | |
| Memory | ||
| Slots | 3x PCIe X16 Slots PCI_E1 (From CPU) Supports Up To PCIe 5.0 X16 PCI_E3 & PCI_E4 (From Z690 Chipset) Supports Up To PCIe 3.0 X4 & 3.0 X1 1x PCIe 3.0 X1 Slot (From Z690 Chipset) | |
| Memory | 4x DDR5 Memory Slots, Supporting Up To 128GB Supports 1R 4800 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 6400+ MHz 1DPC 2R Max Speed Up To 5400+ MHz 2DPC 1R Max Speed Up To 4000+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port, Supports A Maximum Resolution Of 4K 60Hz | |
| Connector & Ports | ||
| LAN | 1x Intel I225-V 2.5Gbps LAN Controller | |
| Supported Storage | 6x SATA 6Gb/S Ports (From Z690 Chipset) 4x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2242/ 2260/ 2280/ 22110 Storage Devices M2_2 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports 2242/ 2260/ 2280 Storage Devices M2_3 Slot (From Z690 Chipset) Supports PCIe 3.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices M2_4 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Intel® Optane™ Memory Ready For M.2 Slots That Are From Z690 Chipset Support Intel® Smart Response Technology For Intel Core™ Processors | |
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 2x 8-Pin ATX 12V Power Connector 6x SATA 6Gb/S Connectors 4x M.2 Slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C Port 2x USB 3.2 Gen 1 5Gbps Connectors (Supports Additional 4 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 6x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x Clear CMOS Jumper 1x TPM Module Connector 1x Tuning Controller Connector 1x TBT Connector (Supports RTD3) | |

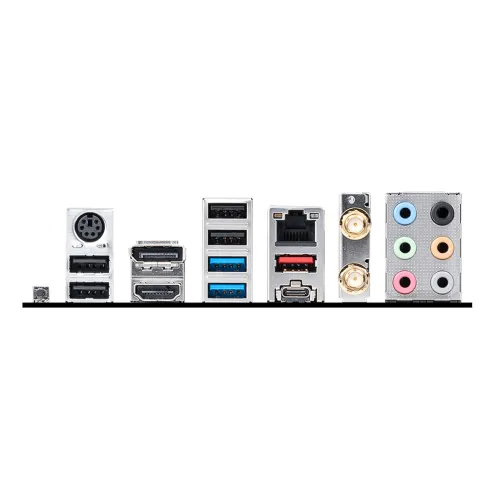

| USB Port | Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C Port On The Back Panel 2x USB 3.2 Gen 2 10Gbps Ports (1 Type-C Internal Connector And 1 Type-A Port On The Back Panel) 6x USB 3.2 Gen 1 5Gbps Ports (2 Type-A Ports On The Back Panel, And 4 Ports Are Available Through The Internal USB Connectors) 4x USB 2.0 Type-A Ports On The Back Panel USB Hub GL850G 4x USB 2.0 Ports Are Available Through The Internal USB Connectors | |
| WiFi | Intel® Wi-Fi 6E The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax Supports Bluetooth 5.22, FIPS, FISMA | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

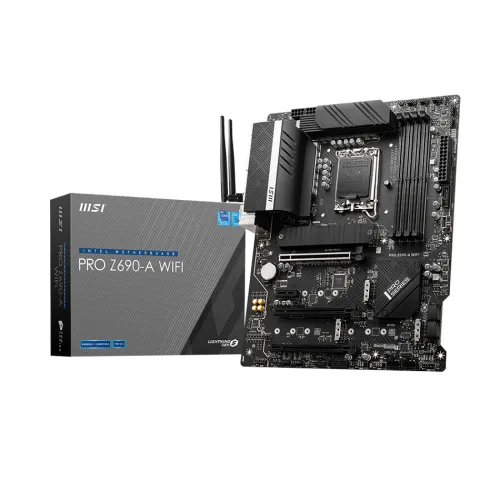

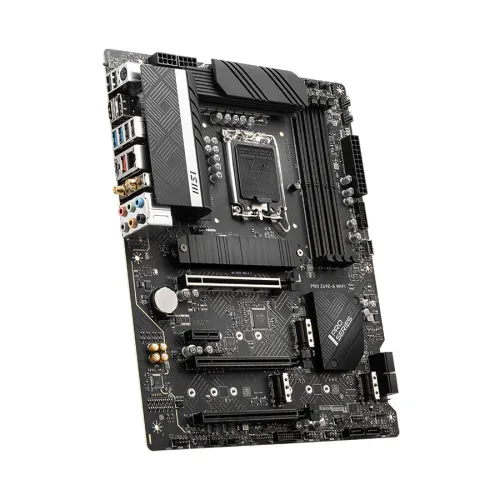

Streamline The Performance Of Your Business Rig With The MSI PRO Z690-A WIFI DDR4 LGA 1700 ATX Motherboard From MSI. Featuring An LGA 1700 Socket And The Z690 Chipset, This Motherboard Is Compatible With Intel 12th Gen Core, Pentium Gold, And Celeron Processors. Install Up To 128GB Of Dual-Channel RAM Across Four DDR5 Memory Slots, With Speeds Up To 6400 MHz Supported Via Overclocking. Four M.2 And Six SATA III Connectors Accommodate Storage Drives, While A PCIe 5.0 X16 Slot, Two PCIe 3.0 X16 Slots, And A PCIe 3.0 X1 Slot Can Be Used To Install Various Adapter Cards. This Board Also Supports AMD CrossFireX For Multi-GPU Setups.
The MSI PRO Z690-A WiFi DDR5 Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6400+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2. It features 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Thie motherboard provides Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, Asus PRO series motherboard is ready to sustain heavy daily work. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The MSI PRO Z690-A WiFi DDR5 comes upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 6-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO Z690-A WiFi DDR5 comes with 3 years of warranty.
