| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket | |
| Chipset | INTEL H470 | |
| Form Factor | mATX 202mmx236mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Basic Information | ||
| Type | DDR4 | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot |
|
| Memory | ||
| Slots | 2 | |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz |
|
| Maximum Memory | 64GB | |
| Connector & Ports | ||

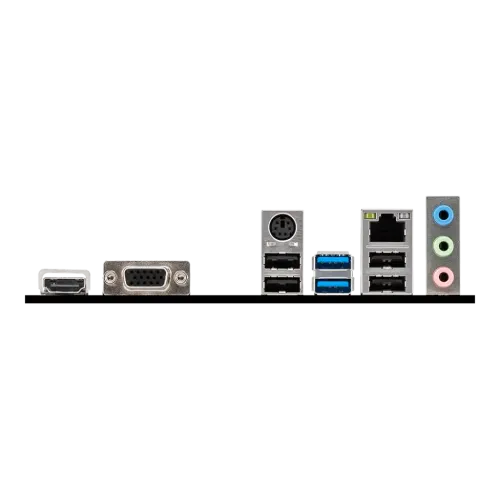

| HDMI | 1x HDMI 1.4 | |
| Display Port | 1x VGA | |
| LAN Port (s) | Realtek 8111H Gigabit LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

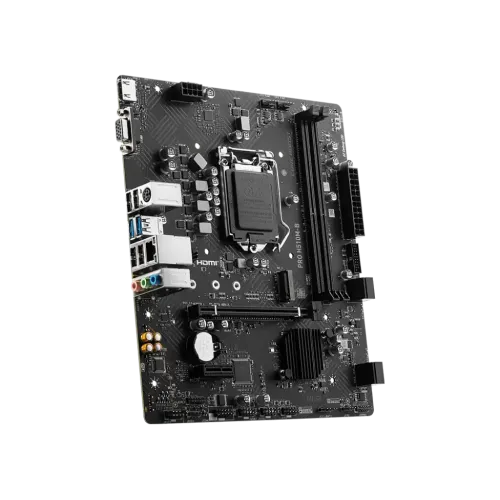

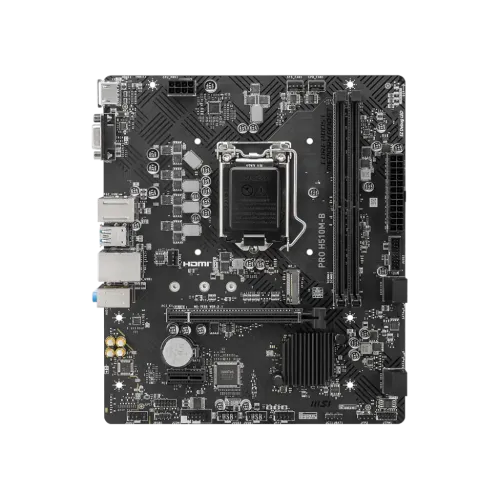

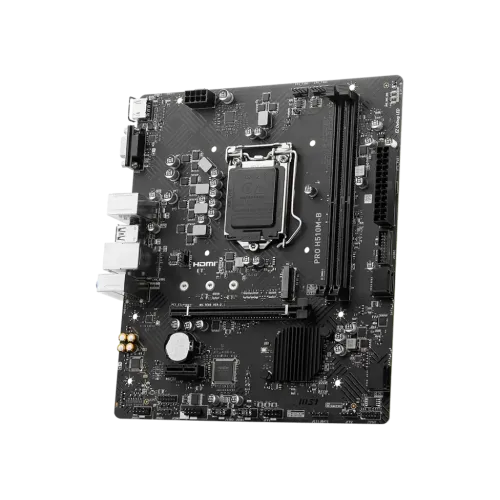

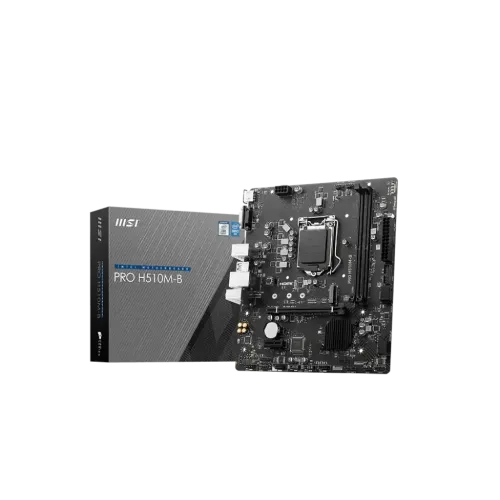

The MSI PRO H510M-B motherboard is a reliable and feature-packed option designed for 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It supports DDR4 memory with speeds up to 2933MHz (MAX), offering efficient multitasking and smooth performance. The MSI PRO H510M-B motherboard features Core Boost technology and provides a premium layout and digital power design to support more cores and deliver better overall performance. The MSI PRO H510M-B motherboard also features Audio Boost technology, providing studio-grade sound quality for an immersive audio experience. The motherboard offers protection to VGA cards against bending and electromagnetic interference (EMI), contributing to improved performance, stability, and strength.
