| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio | |
| CPU | Supports 12th Gen Intel Core Processors, Pentium® Gold And Celeron Processors Processor Socket LGA1700 |
|
| Memory | ||
| Memory | 2x DDR4 Memory Slots, Support Up To 64GB 1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 4600+ MHz 1DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x VGA Port, Supports A Maximum Resolution Of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Intel I219V 1Gbps LAN Controller | |
| Supported Storage | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 4600+ MHz 1DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|

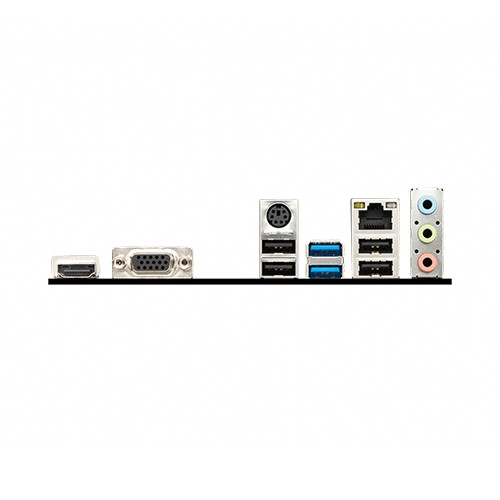

| Internal I/O Ports | 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN Port Audio Connector USB 2.0 |
|
| USB Port | 4x USB 3.2 Gen 1 5Gbps Ports (2 Type-A Ports On The Back Panel, 2 Ports Available Through The Internal USB Connector) 6x USB 2.0 Ports (4 Type-A Ports On The Back Panel(Hub-GL850G), 2 Ports Available Through The Internal USB 2.0 Connector) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

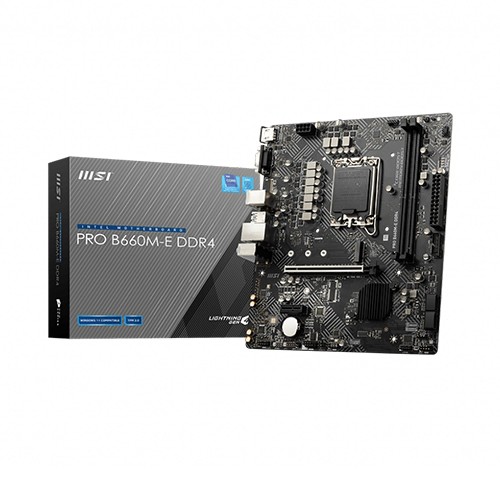

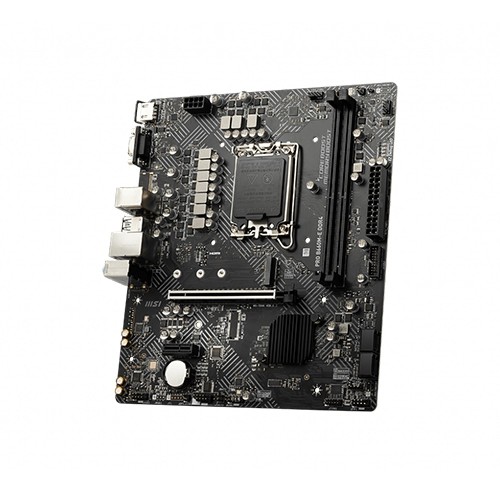

The MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard is a highly capable and feature-rich motherboard designed to support 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with the LGA1700 socket. It boasts a robust Intel B660 chipset that ensures smooth and reliable performance for various computing tasks. With its Micro-ATX form factor, it strikes a balance between compactness and expandability, making it suitable for smaller desktop builds without compromising on functionality.One of the key highlights of the MSI PRO B660M-E motherboard is its audio capabilities. Equipped with the Realtek ALC892/ALC897 Codec, it delivers 7.1-channel high-definition audio, ensuring an immersive and rich audio experience for gamers, multimedia enthusiasts, and content creators.For graphics connectivity, the motherboard offers a wide range of options. It features a HDMI 2.1 port with HDR support, capable of driving a maximum resolution of 4K at 60Hz. Additionally, there's a VGA port for legacy display connections, supporting resolutions of up to 2048x1536 at 50Hz, 2048x1280 at 60Hz, and 1920x1200 at 60Hz.In terms of memory, the MSI PRO B660M-E motherboard provides two DDR4 memory slots, accommodating a maximum of 64GB RAM. It supports memory frequencies ranging from 2133MHz up to an impressive 3200MHz and even supports overclocking for further performance boosts. Users can take advantage of the dual-channel mode for enhanced memory performance, and Intel Extreme Memory Profile (XMP) support allows for easy configuration of memory profiles.The motherboard also caters to gamers and graphics professionals with its support for AMD CrossFire™ Technology, allowing the use of multiple GPUs for improved graphics performance and smooth gameplay experiences.Connectivity options are abundant, with four USB 3.2 Gen 1 5Gbps ports (two Type-A ports on the back panel and two available through the internal USB connector) for high-speed data transfers, and six USB 2.0 ports (four Type-A ports on the back panel and two available through the internal USB 2.0 connector) for additional peripheral connections.Furthermore, the MSI PRO B660M-E offers reliable networking capabilities with an Intel I219V 1Gbps LAN controller, ensuring stable and fast internet connectivity.As for storage, the motherboard supports various storage configurations, including traditional hard drives and high-speed solid-state drives, thanks to its multiple SATA and M.2 slots.In conclusion, the MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard is an excellent choice for users looking to build a powerful, feature-packed, and reliable system. Its audio, graphics, memory, and networking capabilities, combined with its compact form factor and three-year warranty, make it an ideal option for gamers, content creators, and general users alike.
