| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs |
|
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |

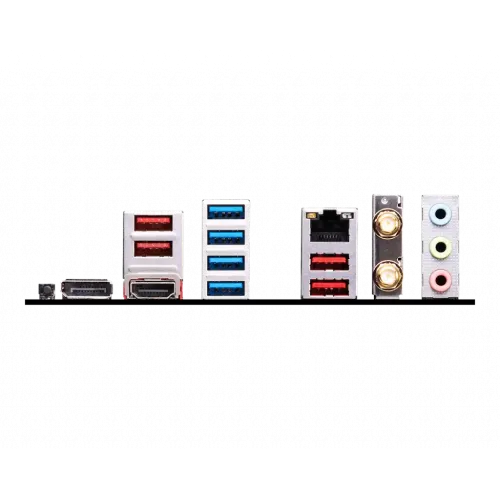

| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
|
| LAN Port (s) | Realtek 8125BG 2.5G LAN | |
| Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | Audio Connectors |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| Display Port (s) | 1x DisplayPort | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| Warranty Information | ||
| Warranty | 3 Years | |

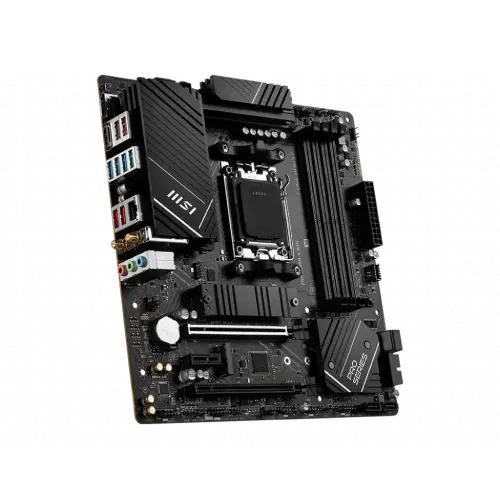

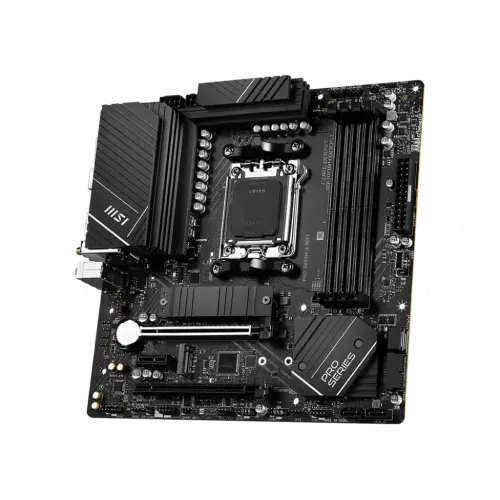

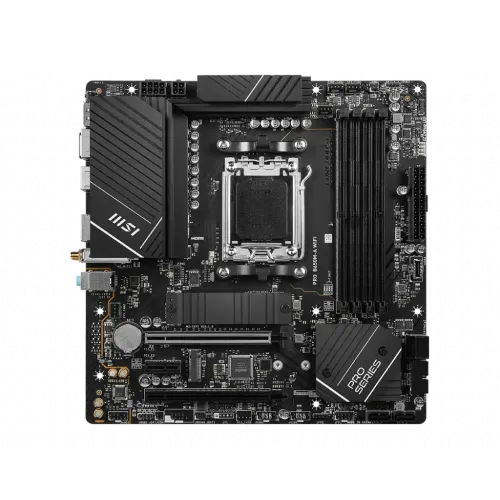

The MSI PRO B650M-A WIFI is a high-performance micro-ATX motherboard designed to support the latest AMD Ryzen 7000 Series Desktop Processors with the advanced AM5 socket. This feature-packed motherboard is crafted to deliver exceptional performance, reliability, and expandability to meet the needs of both gamers and content creators.At its core, the motherboard is equipped with the AMD B650 chipset, offering a solid foundation for seamless compatibility with cutting-edge technologies. The compact micro-ATX form factor (243.84mm x 243.84mm) makes it an ideal choice for smaller gaming rigs or compact workstation setups, without compromising on features and capabilities.The motherboard supports DDR5 memory, the latest generation of RAM technology, providing faster data transfer rates and greater capacity compared to its predecessors. With four DIMM slots, users can install up to 128GB of DDR5 memory in various configurations, including support for dual-channel mode. The memory support covers a wide range of frequencies, from JEDEC-certified 4800MHz to overclocking options up to an impressive 6400MHz, allowing users to optimize memory performance based on their requirements.Graphics capabilities are well-covered with an HDMI port and a DisplayPort, both supporting up to 4K resolution at 60Hz refresh rate. This ensures smooth and vibrant visuals, making the motherboard suitable for gaming, multimedia, and professional content creation tasks.The MSI PRO B650M-A WIFI is equipped with a Realtek 8125BG 2.5G LAN for high-speed wired networking. Additionally, it features AMD Wi-Fi 6E with support for MU-MIMO TX/RX, offering seamless wireless connectivity with a variety of bandwidth options. The Wi-Fi module is pre-installed in the M.2 (Key-E) slot and supports the latest Wi-Fi standards, including 802.11a/b/g/n/ac/ax, as well as Bluetooth 5.2 for wireless peripherals.Storage options are abundant, with two M.2 slots supporting PCIe 4.0 x4 NVMe devices, allowing for lightning-fast data transfer speeds. In addition, there are four SATA 6G ports for traditional storage drives, and the motherboard supports RAID configurations for added data security and performance optimization.The internal I/O ports provide extensive connectivity options, including multiple fan connectors, USB ports, and RGB LED connectors, allowing users to customize their system's lighting effects. The presence of EZ Debug LED adds convenience for troubleshooting potential hardware issues.In conclusion, the MSI PRO B650M-A WIFI DDR5 AMD AM5 micro-ATX motherboard is a well-rounded and feature-rich solution for users seeking a powerful and reliable foundation for their AMD Ryzen 7000 Series systems. With excellent connectivity, fast memory and storage support, and advanced audio and graphics capabilities, this motherboard is a great choice for enthusiasts and professionals looking to build a compact yet powerful system. Backed by a 3-year warranty, MSI ensures the longevity and stability of this exceptional micro-ATX motherboard.
MSI MOTHERBOARD range in price in Bangladesh depending on the model and features. In Bangladesh, the cost of a MSI PRO B650M-A WIFI AM5 MOTHERBOARD is around 24,450 BDT or more for high-end gaming or professional chipset. The quality and dependability of MSI are well known. The PRO B650M-A is not just about high-resolution gaming Motherboard. It is a Affordable motherboard for everyone. At Pc House Computer Bangladesh, you can find MOTHERBOARD of every quality level.
